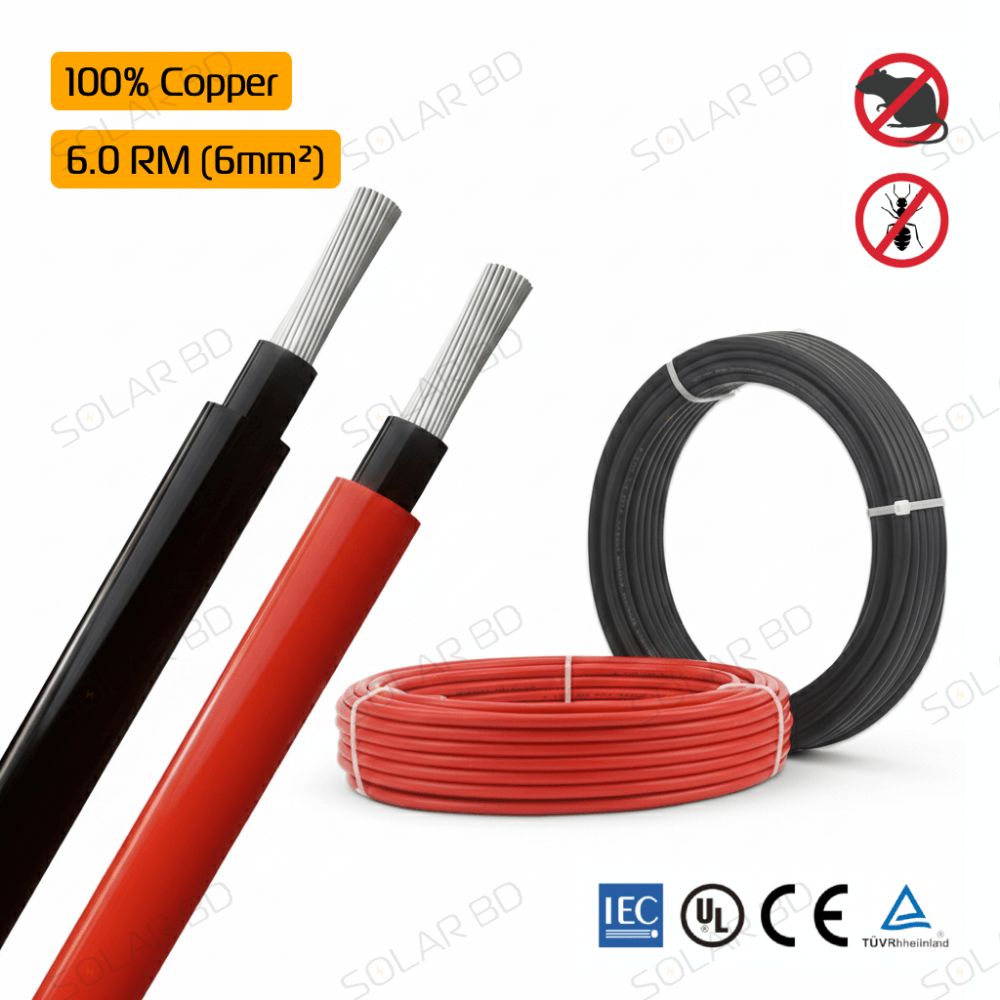

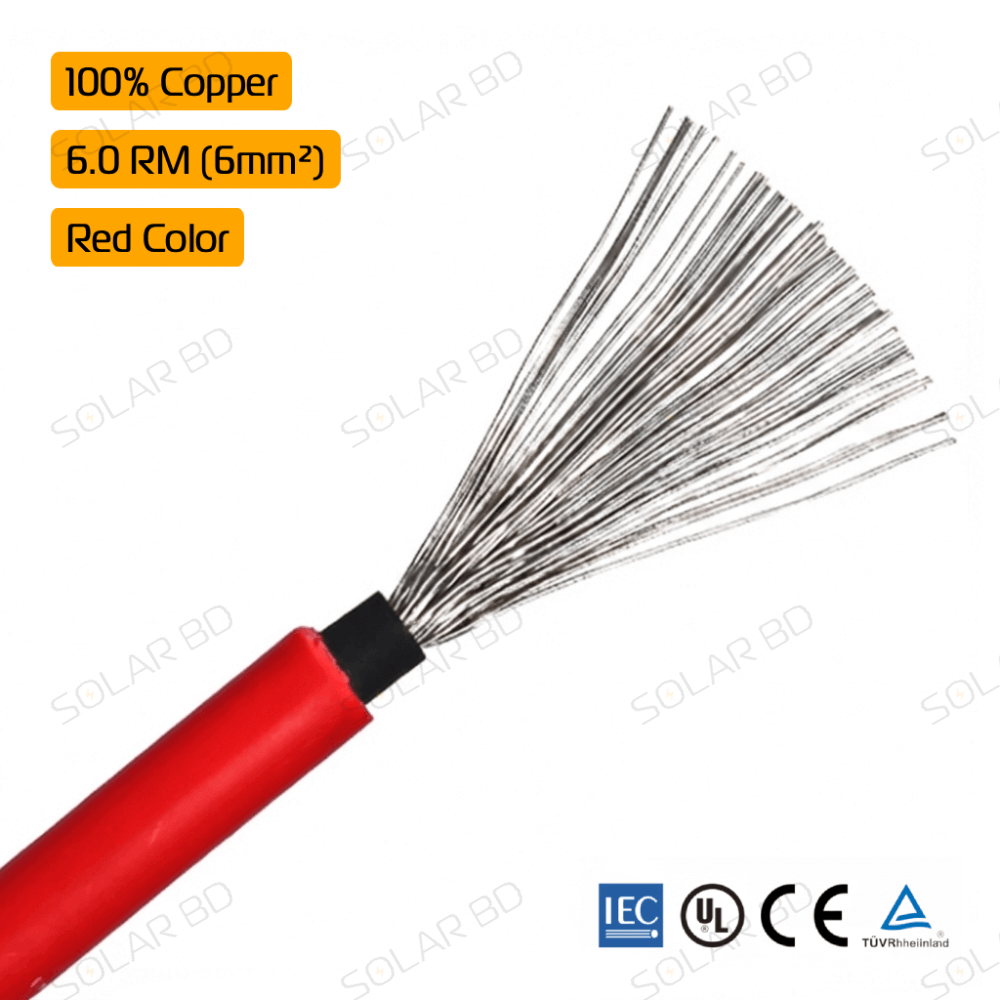

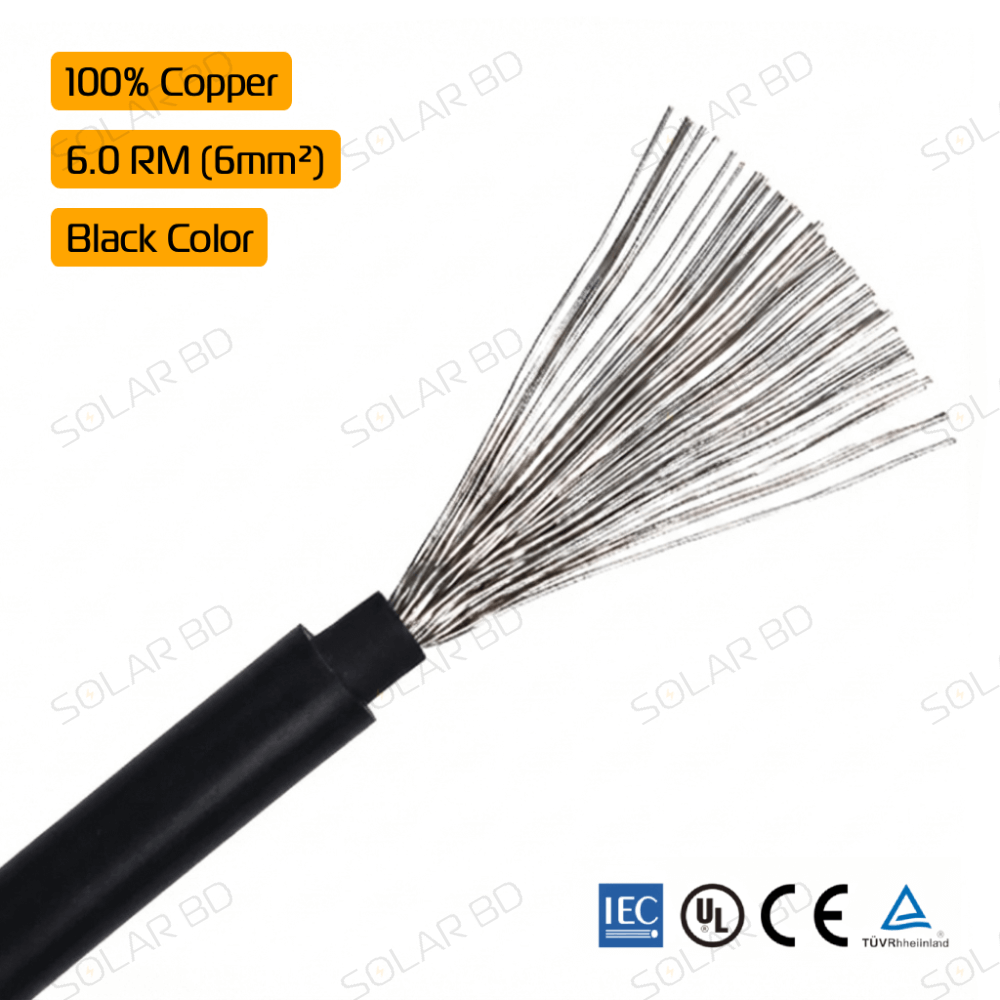

Imported 6RM (6mm²) UV Resistance Tinned Pure Copper PV Cable – Overview
The Imported 6RM (6mm²) UV Resistance Tinned Pure Copper PV Cable is designed for DC-side wiring of solar panels and photovoltaic systems. Built for demanding outdoor environments, this cable ensures stable high-current DC power transmission with excellent resistance against wind, sunlight, rain, and snow.
Key Benefits
- Rated for DC1500V to support modern high-voltage PV string systems.

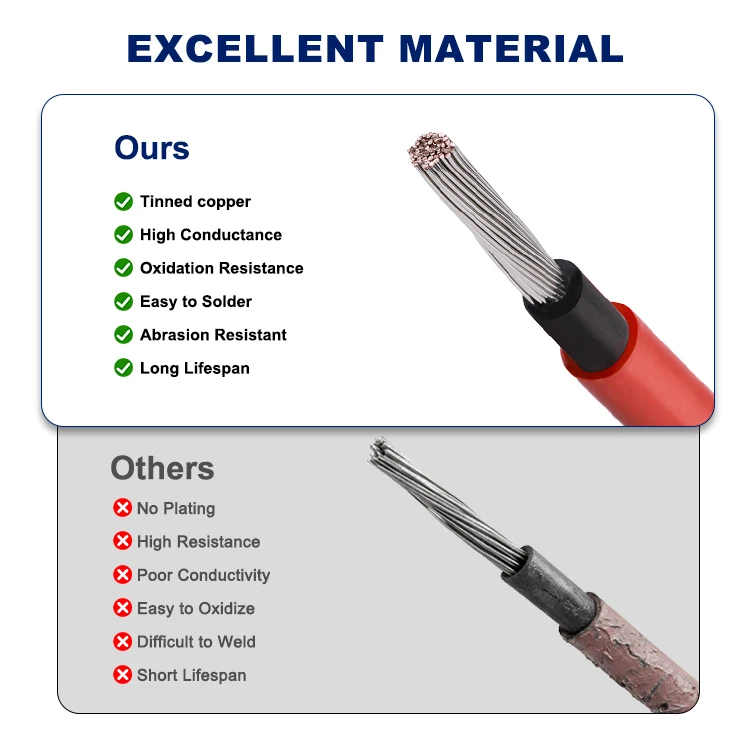

- Tinned pure copper conductor ensures high conductivity and corrosion resistance.
- Wind proof, sun proof, rain proof, and snow proof construction for outdoor use.
- XLPO insulation and sheath provide strong thermal and mechanical protection.
- UV resistant jacket supports long-term exposure to direct sunlight.
- Low Smoke Zero Halogen design enhances fire and installation safety.
- Operates reliably in extreme temperatures from -40℃ to +90℃.
- High short-circuit temperature tolerance protects during fault conditions.
This PV cable is ideal for high-current DC connections between solar panels, combiner boxes, charge controllers, and inverters in residential, commercial, and industrial solar installations.
Technical Specifications
| Parameter | Value |
|---|---|
| Application | Solar panel and photovoltaic system DC wiring |
| Rated voltage | DC1500V |
| Test voltage | AC 6.5KV, 50Hz, 5min |
| Working temperature | -40℃ to +90℃ |
| Max conductor temperature | 120℃ |
| Short circuit temperature | 250℃, 5 seconds |
| Life expectancy | ≥25 years |
| Conductor | Tinned pure copper |
| Insulation | XLPO |
| Sheath | XLPO (LSZH) |
| Cross section | 1 × 6 mm² |
| Conductor construction | 84 / 0.285 mm |
| Conductor diameter | 3.02 mm |
| Cable outer diameter | 6.3 mm |
| Current carrying capacity | 72 A |
| UV resistance | UV resistant for outdoor use |
| Fire performance | Flame retardant, LSZH |
