SUNSHINE 150W Germany Cell 12V Mono Solar Panel – Overview
The SUNSHINE 150W Germany Cell 12V Mono Solar Panel is a high-performance monocrystalline solar module designed for reliable off-grid solar applications. Built using advanced Germany cell technology and MBB design, this panel provides excellent power output, enhanced durability, and stable long-term performance even in demanding environmental conditions.
Key Benefits
- Produces up to 150W maximum power output for 12V solar systems.
- High-efficiency monocrystalline Germany cell technology.
- MBB design improves light absorption and reduces power loss.
- Excellent performance in low-light conditions.
- Salt mist and ammonia resistant for harsh environments.
- PID-free technology ensures long-term power stability.
- Class A safety rating for reliable solar installations.
- 25-year linear power output warranty.
This panel integrates seamlessly with MPPT and PWM solar charge controllers and operates efficiently with inverters and battery systems, ensuring optimal solar energy performance and dependable power output.

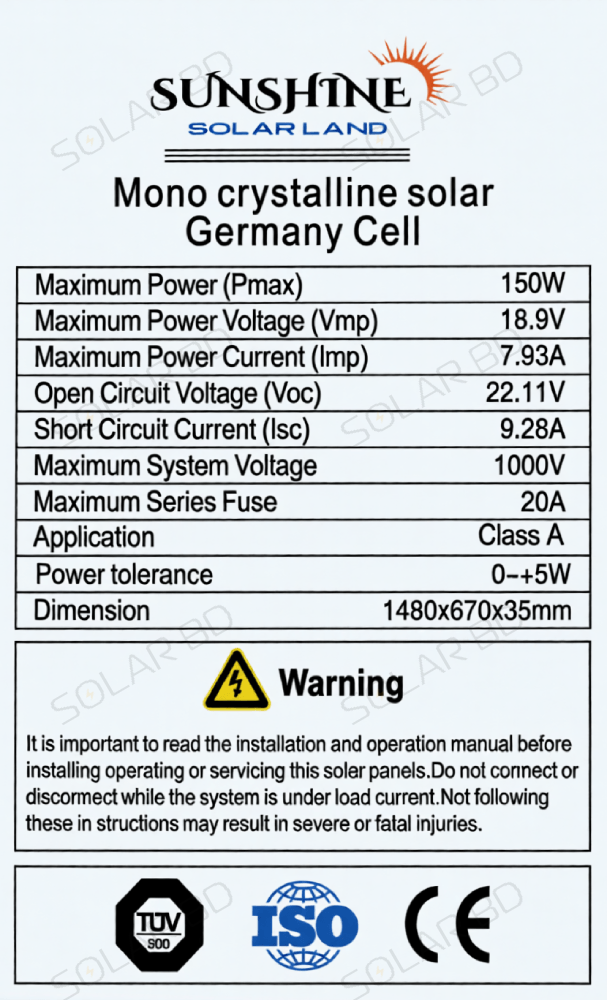

Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 150W |
| Maximum Power Voltage (Vmp) | 18.9V |
| Maximum Power Current (Imp) | 7.93A |
| Open Circuit Voltage (Voc) | 22.11V |
| Short Circuit Current (Isc) | 9.28A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse | 20A |
| Application | Class A |
| Power Tolerance | 0~+5W |
| Dimension | 1480 × 670 × 35 mm |
