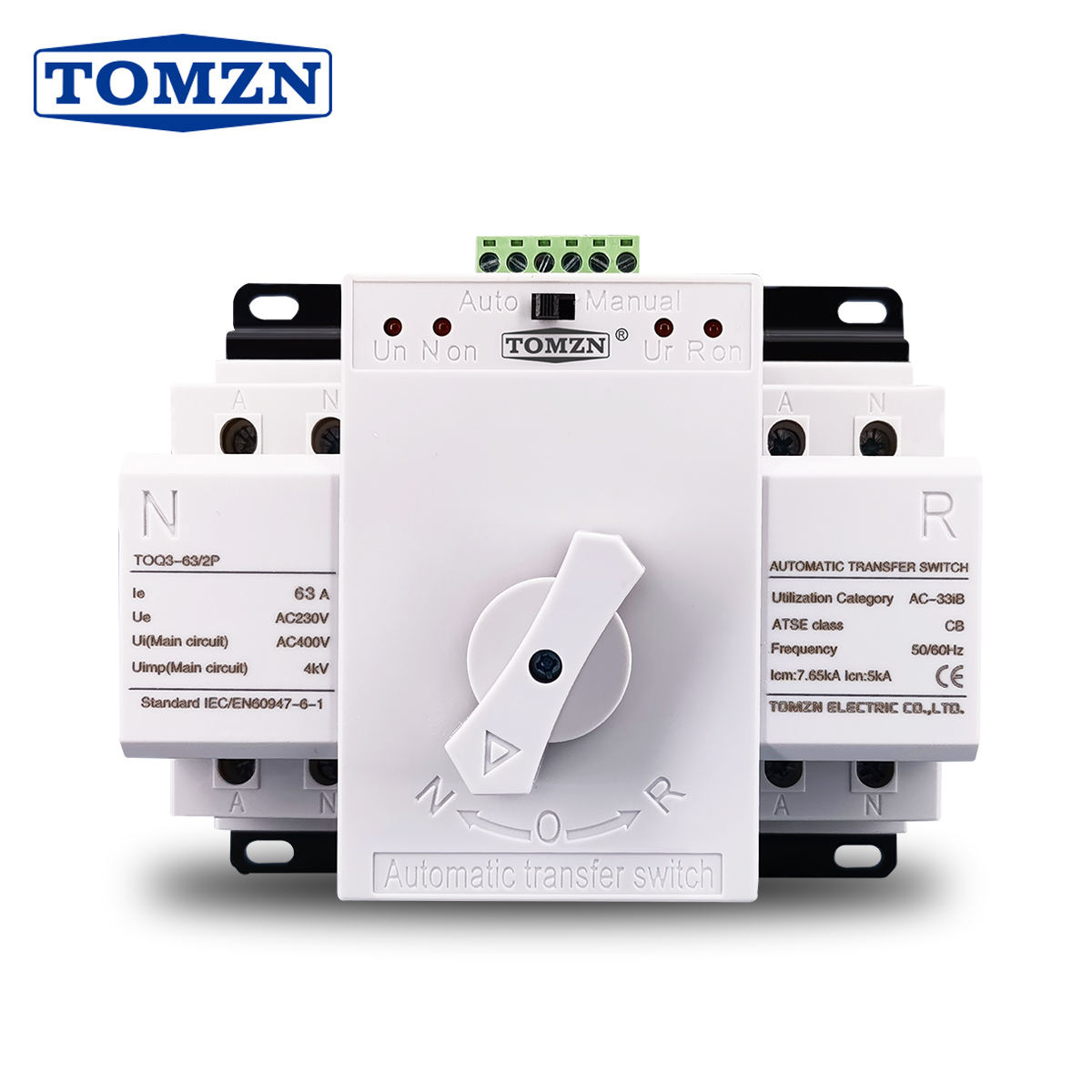

TOMZN 2P 63A 230V Single Phase MCB Type ATS Front View

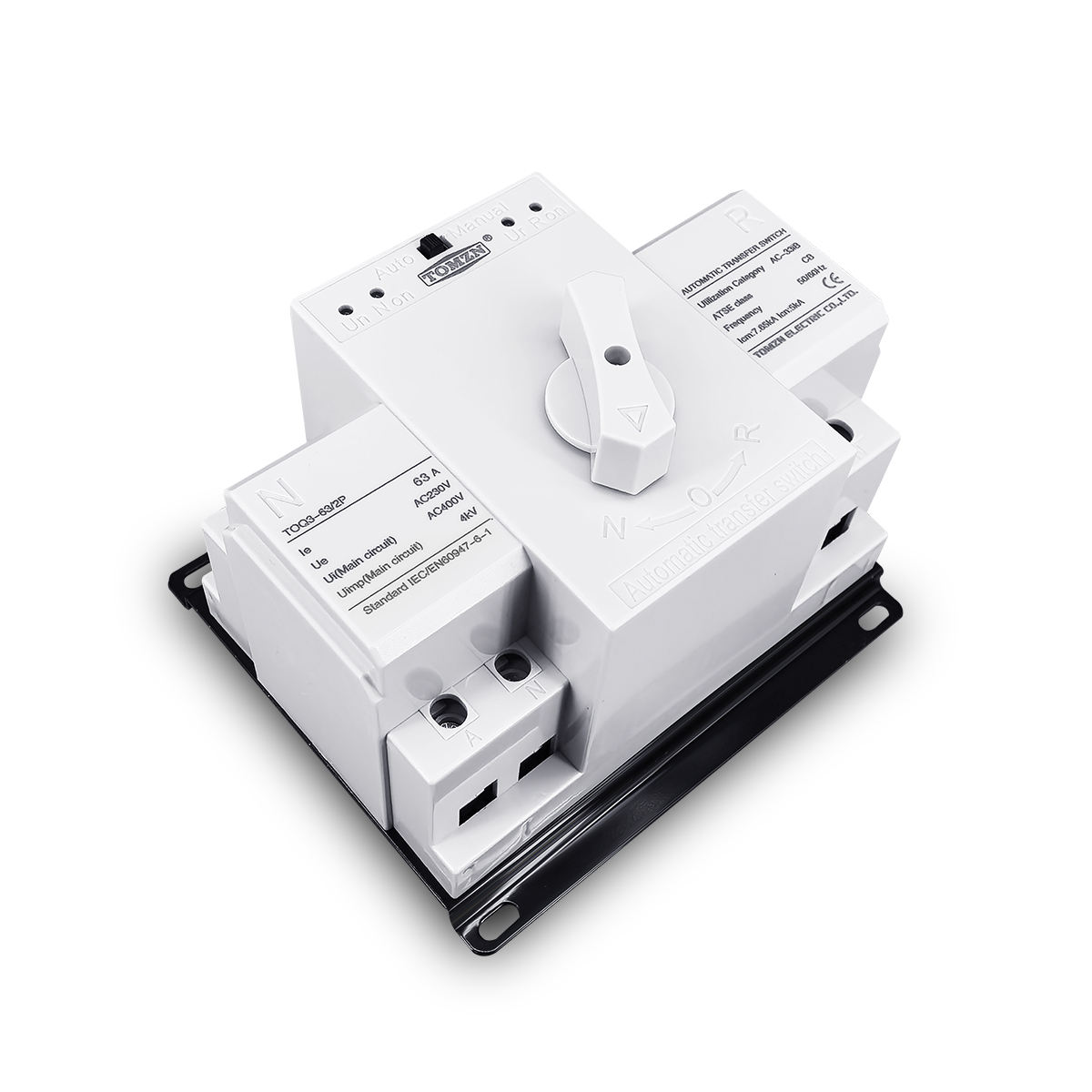

TOMZN 2P 63A 230V Single Phase MCB Type ATS Angle View

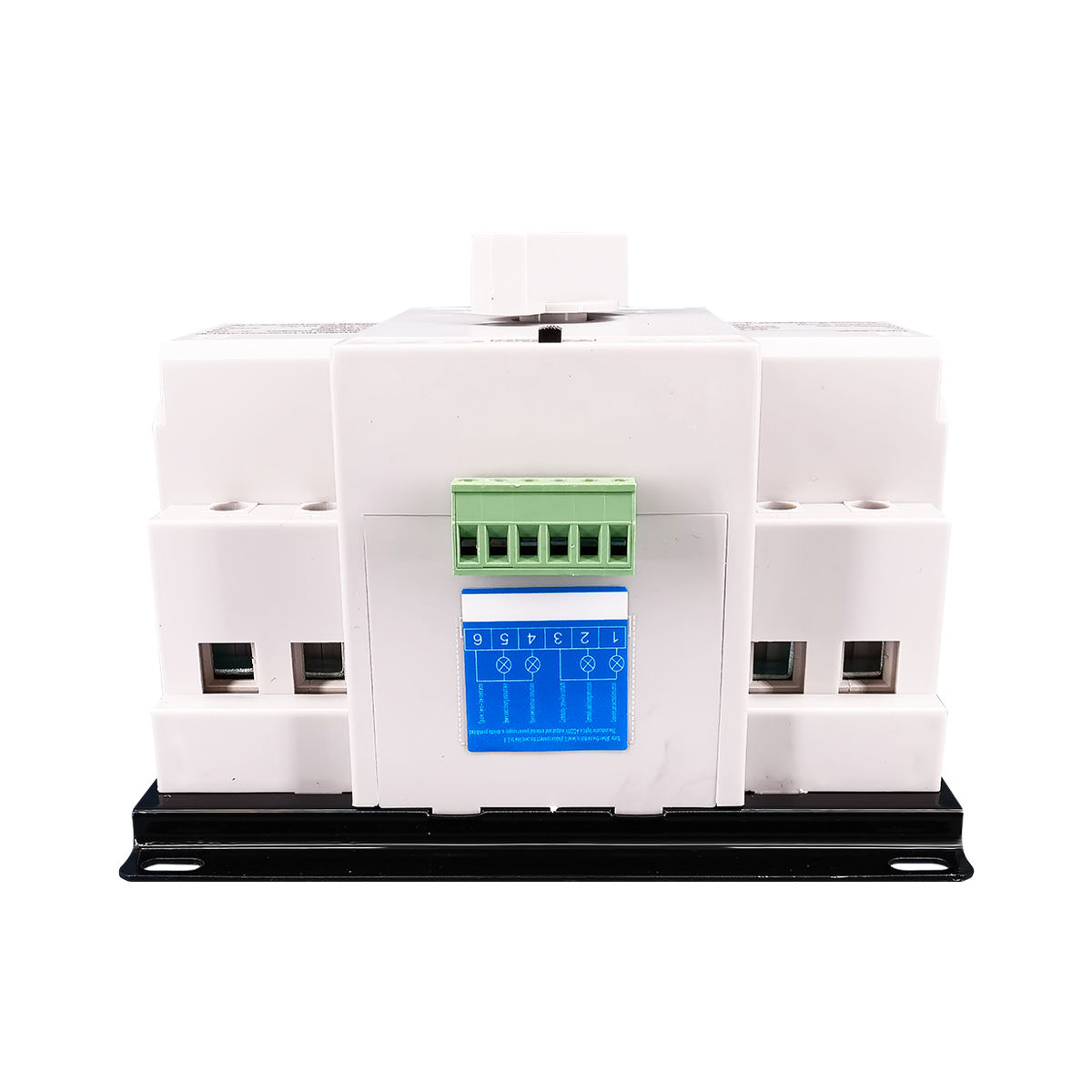

TOMZN 2P 63A 230V Single Phase MCB Type ATS Bottom View

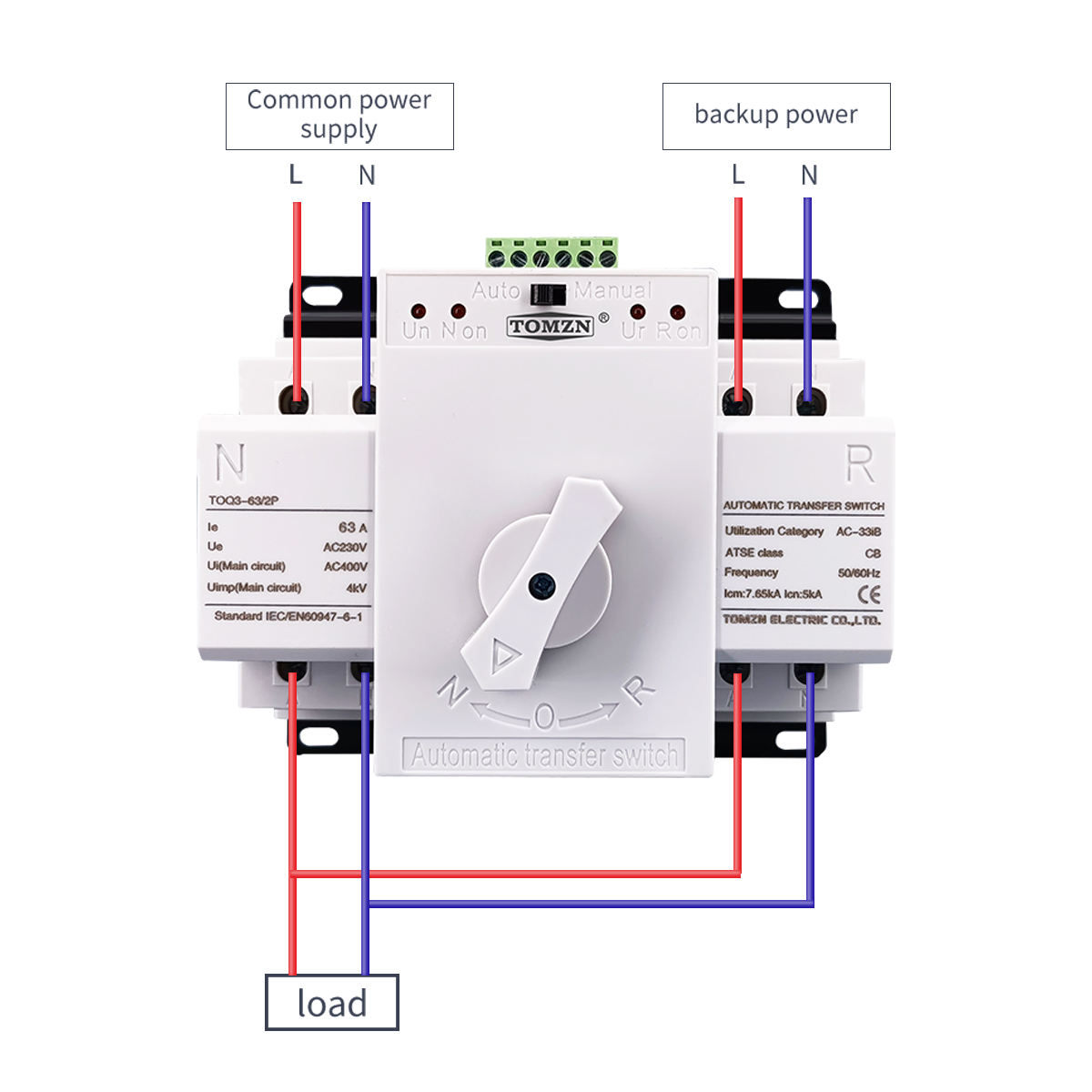

TOMZN 2P 63A 230V Single Phase MCB Type ATS Wiring Diagram View

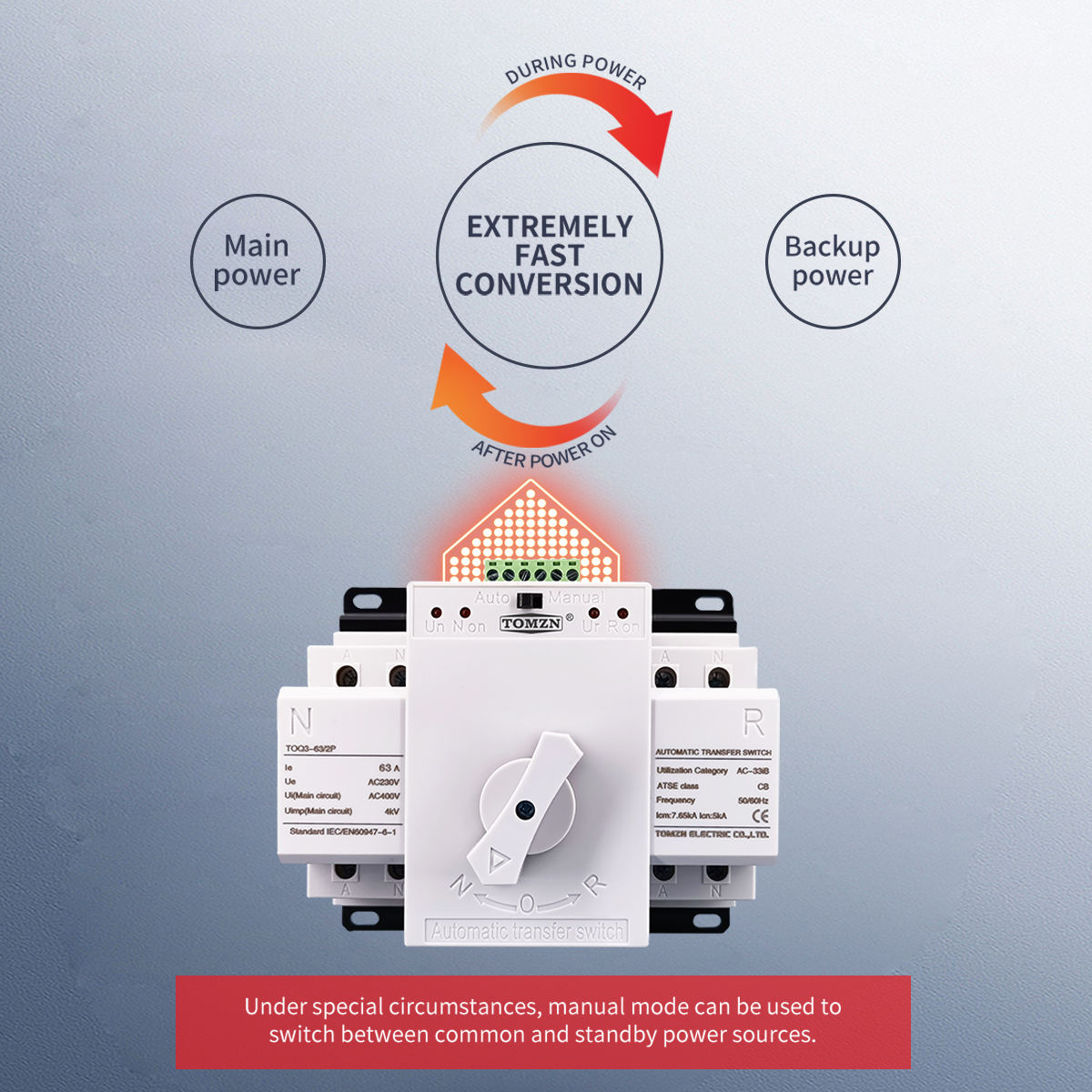

TOMZN 2P 63A 230V Single Phase MCB Type ATS Operation View

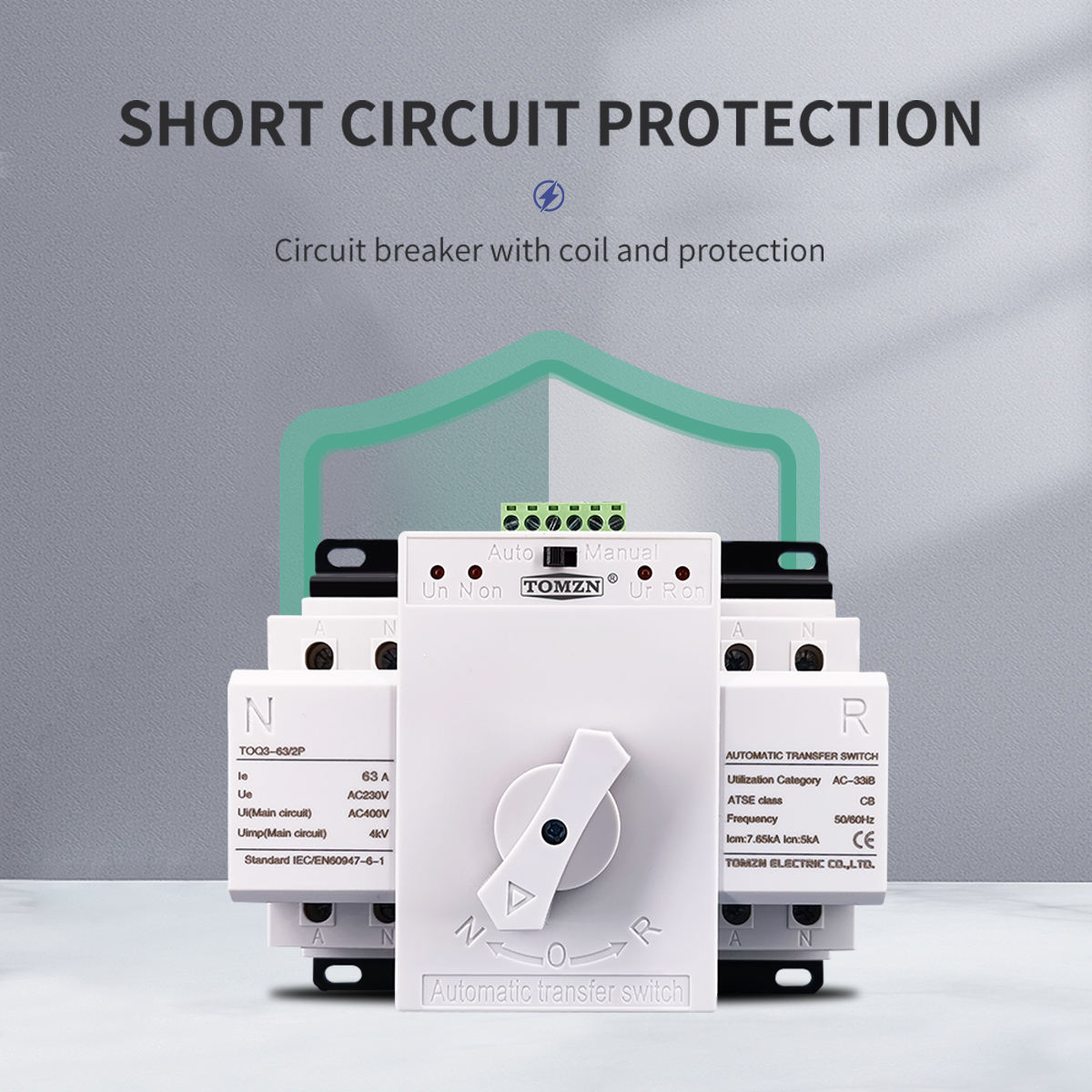

TOMZN 2P 63A 230V Single Phase MCB Type ATS Protection View
Sale!

TOMZN TOQ3-2P/63 2P 63A 230V MCB Type Dual Power Automatic Transfer Switch (ATS) 2 Input 2 Output

Original price was: 3,800৳ .Current price is: 3,400৳ .

-11%

✅ Brand: TOMZN
✅ Model: TOQ3-2P/63
✅ 2-pole MCB Type Automatic Transfer Switch (ATS)
✅ Switch time <4s, supports Manual & Automatic modes
✅ 6 months warranty (excluding burns & physical damage)

In stock

Why Choose Us?
100% Genuine
Cash on Delivery
After-Sales Support
TOMZN 2P 63A 230V Single Phase MCB Type ATS Front View
TOMZN TOQ3-2P/63 2P 63A 230V MCB Type Dual Power Automatic Transfer Switch (ATS) 2 Input 2 Output
3,800৳  Original price was: 3,800৳ .3,400৳ Current price is: 3,400৳ .

TOMZN 2P 63A 230V Single Phase MCB Type Dual Power Automatic Transfer Switch – ATS

The 2P 63A Single Phase Automatic Transfer Switch (ATS) ensures that your critical loads remain powered by automatically switching between Normal and Reserve power sources when one fails.

This terminal-type ATS is ideal for AC 230V, 50/60Hz, up to 63A, and complies with IEC60947-6-1 & GB/T14048.11. The switch defaults to Normal power when available, and switches to Reserve power only when Normal is unavailable.

– Power is briefly interrupted during switching (Switch time <4s).
– This switch cannot start or stop a generator – it only switches between available power sources.

Key Functions & Features

  • Automatically switches between Normal & Reserve power sources

  • Single-phase 2-pole ATS with max current 63A

  • Switch time: <4 seconds, with momentary power interruption during transition

  • Normal power takes priority when both sources are available

  • Supports both Automatic and Manual modes:

    • Automatic: Press button to let the switch toggle itself

    • Manual: Set to manual and change direction manually

  • Designed for terminal installations in homes, offices & small commercial setups

  • Conforms to international standards IEC60947-6-1 & GB/T14048.11
