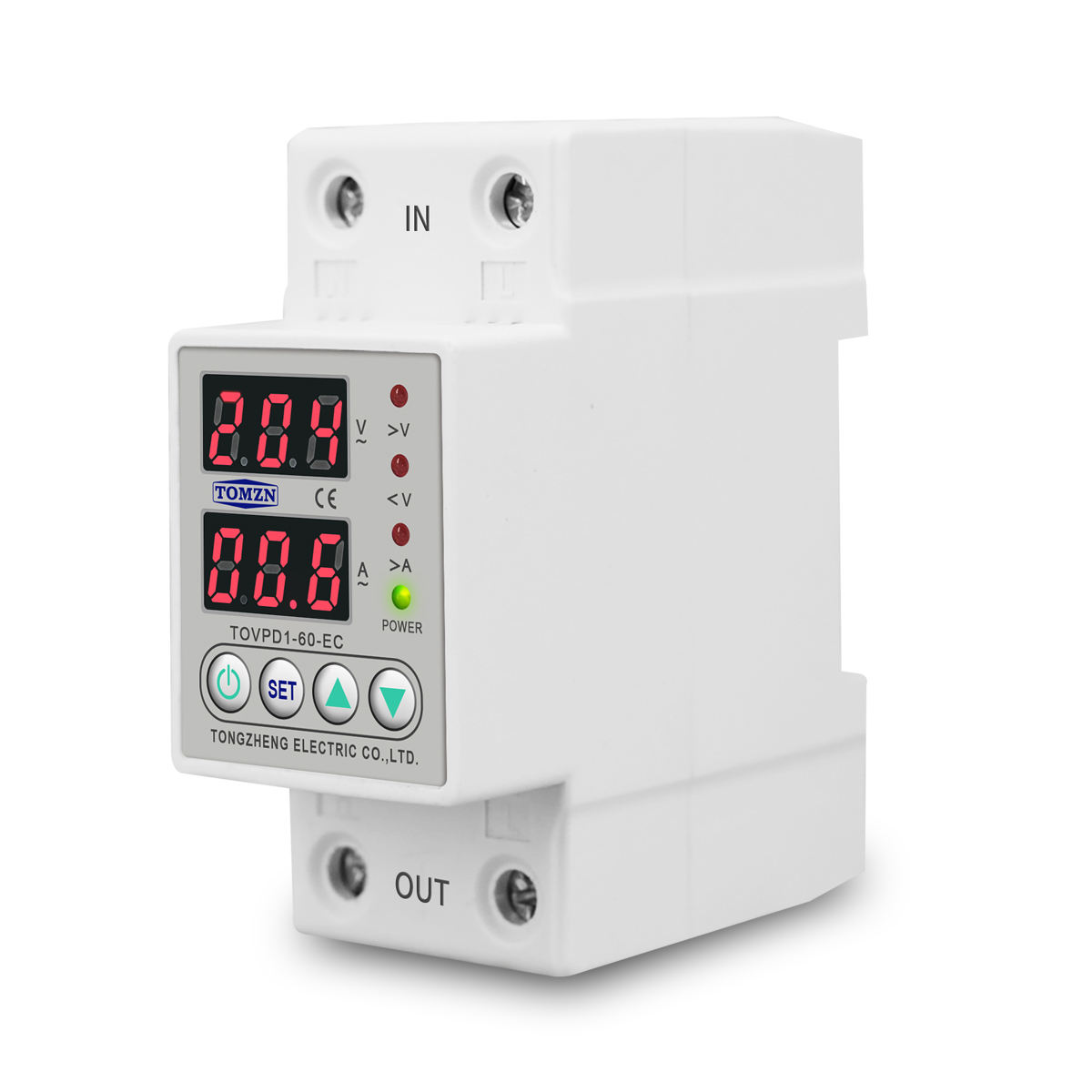

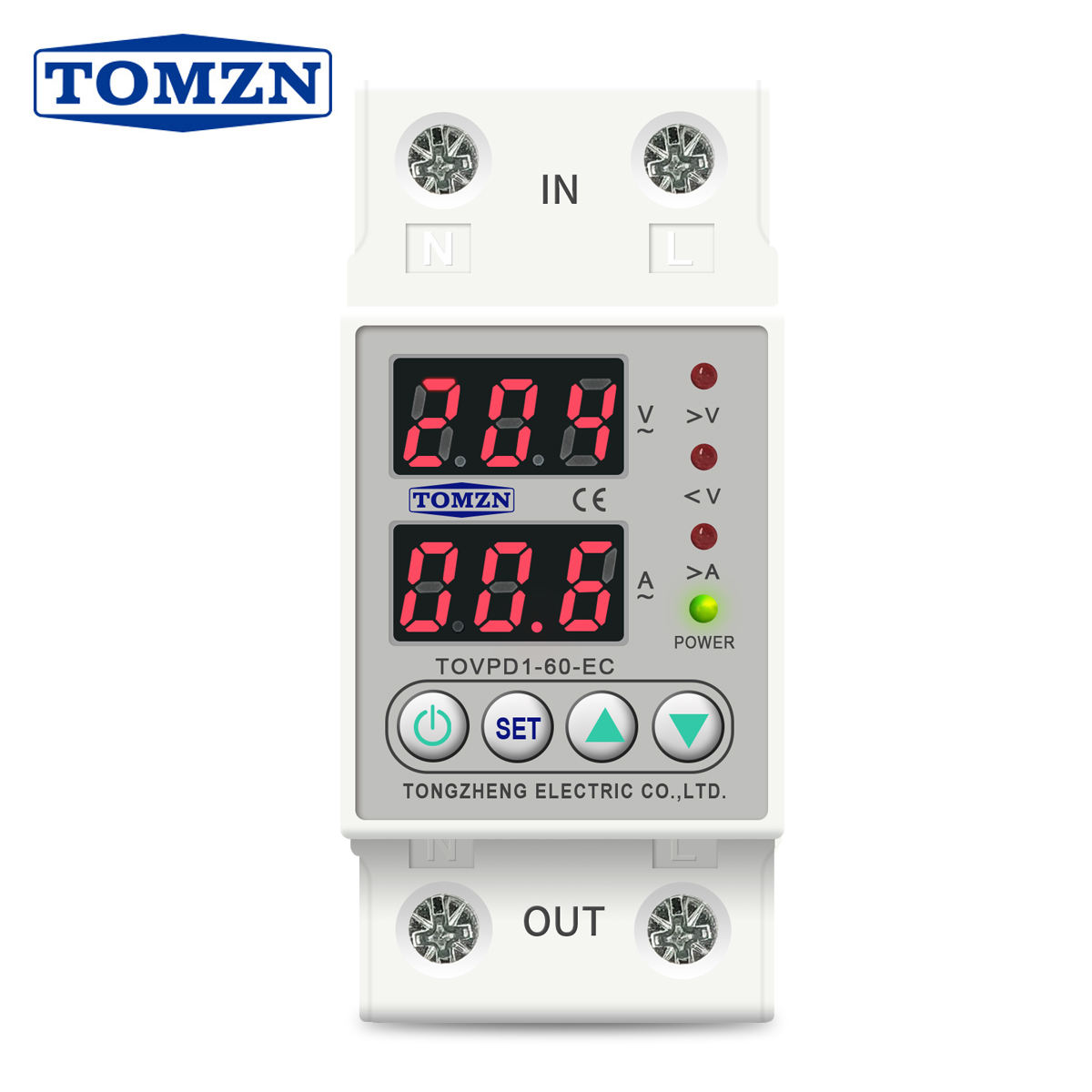

TOMZN TOVPD1-60-EC 230V Din Rail Over Under Voltage Protector Relay 60A Adjustable

TOMZN TOVPD1-60-EC 230V Din Rail Adjustable Voltage & Current Protector Relay – 60A (Over/Under Protection, Auto Recovery, Display)

The TOMZN TOVPD1-60-EC is a reliable and advanced voltage & current protection device designed to safeguard your electrical appliances from over-voltage, under-voltage, and over-current conditions. Featuring automatic recovery, real-time voltage display, and fault inquiry, this protector is ideal for homes, offices, and industries in Bangladesh.

Product Parameters:

1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display (real-time measurement)
6. Fault inquiry: Press and hold the UP button for more than 12 seconds

Product Parameters:

• Power Supply: 230VAC, 50/60Hz

• Maximum Load Capacity: Adjustable from 1A to 63A (default: 60A)

• Over-Voltage Protection Range: 230V–300V or OFF (default: 270V)

• Over-Voltage Recovery Range: 225V–295V (default: 250V)

• Over-Voltage Action Time: Adjustable 0.1s–30s (default: 0.5s)

• Over-Voltage Recovery Delay: Adjustable 1s–500s (default: 30s)

• Under-Voltage Protection Range: 140V–210V or OFF (default: 170V)

• Under-Voltage Recovery Range: 145V–215V (default: 190V)

• Under-Voltage Action Time: Adjustable 0.1s–30s (default: 0.5s)

• Under-Voltage Recovery Delay: Adjustable 1s–500s (default: 30s)

• Over-Current Adjustment Range: Adjustable 1A–63A (default: 60A)

• Over-Current Action Time: Adjustable 0.1s–30s (default: 0.5s)

• Over-Current Recovery Delay: Adjustable 1s–500s (default: 30s)

• Power-On Delay Time: Adjustable 1s–500s (default: 10s)

• Power Consumption: <2W

• Mechanical Life: Up to 100,000 operations

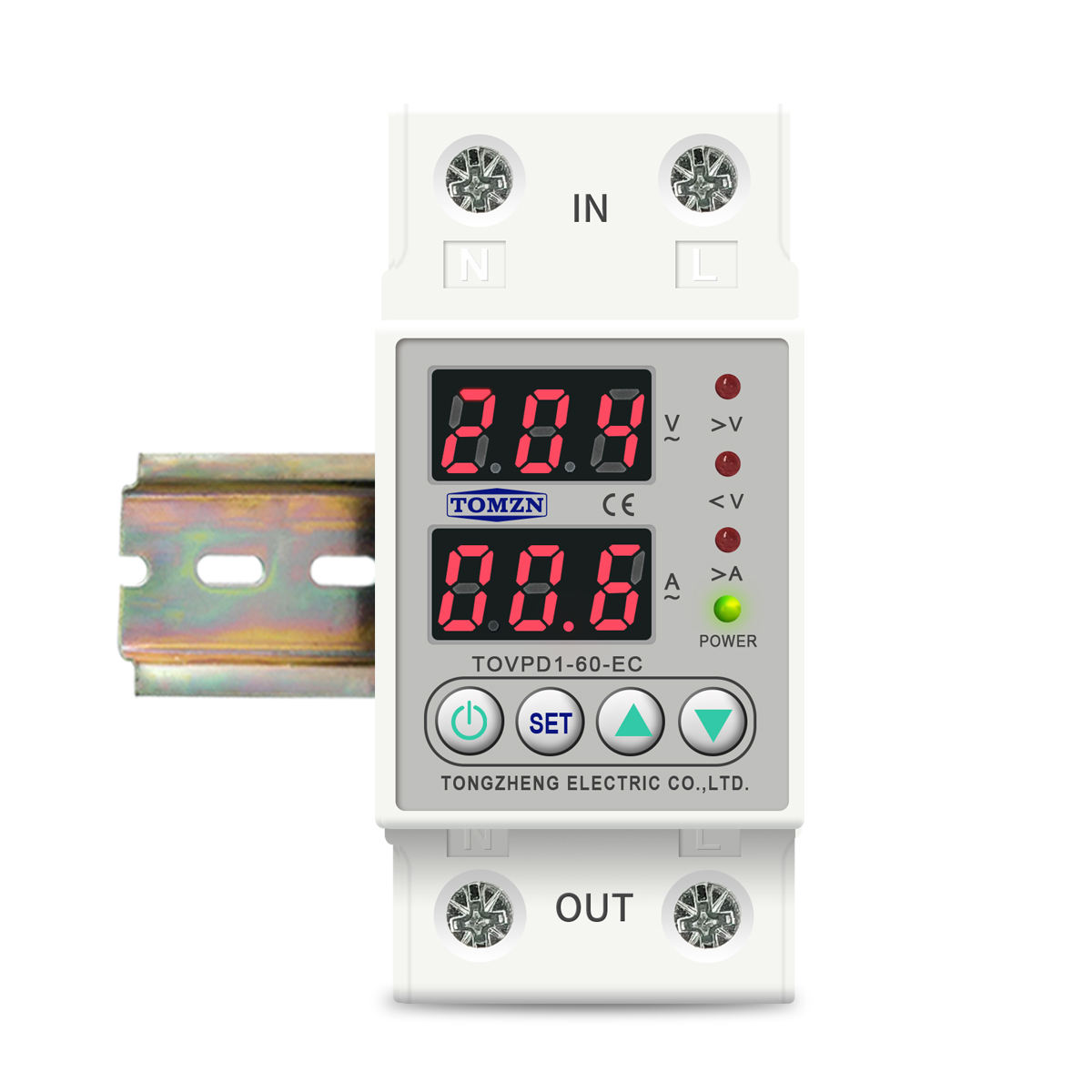

• Installation: 35mm DIN Rail

A13 Voltage adjustble +-%9.5

A14 Current limit times: 1-20 times (default off)

Restore factory settings: Press the down button for more than 12s

Fault inquiry: Press the UP button for more than 12S
