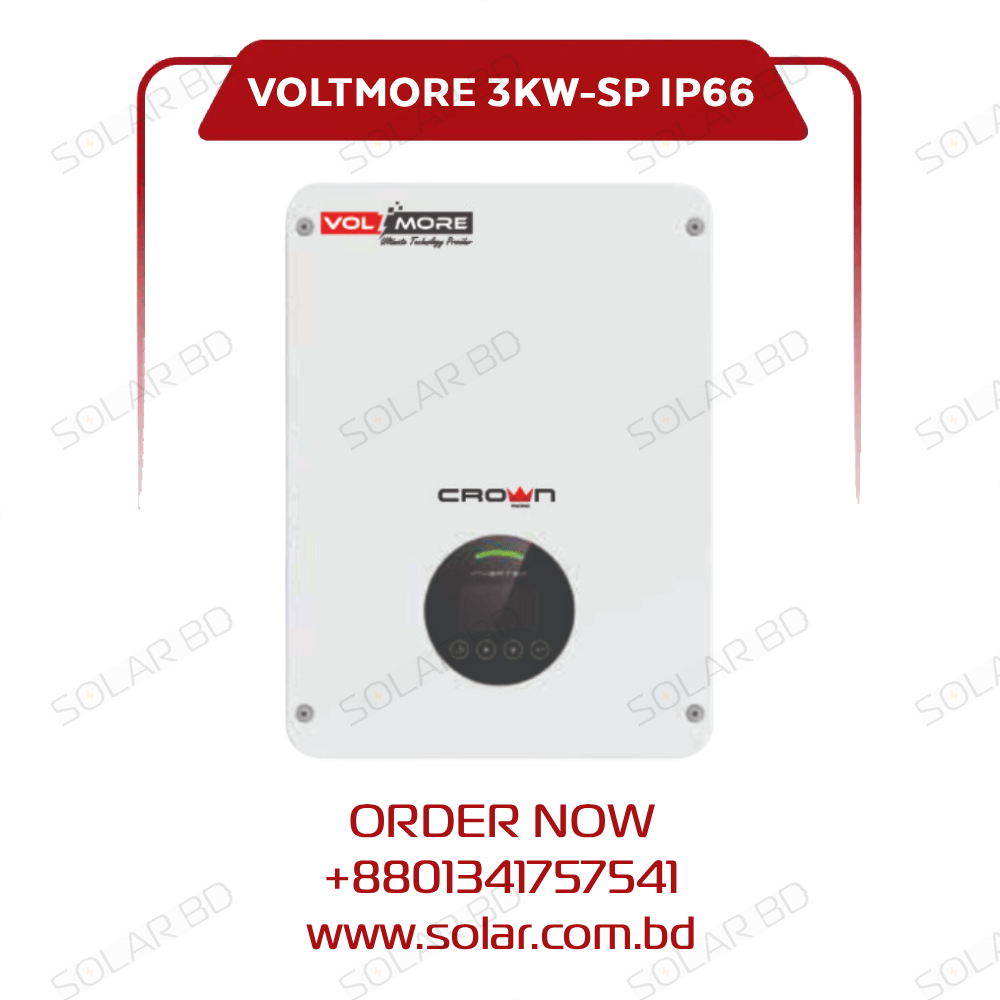

Crown Micro VOLTMORE-VMGI-3KW-SP Single Phase On-Grid Solar Inverter

Original price was: 45,359৳ .Current price is: 43,615৳ .

-4%

✅ Brand: Crown Micro
✅ Model: VOLTMORE-VMGI-3KW-SP
✅ SREDA Approved (Net Metering Program)
✅ Single-phase on-grid MPPT solar inverter
✅ Max. efficiency 97.6% / Euro 97.0%
✅ Wi-Fi & 4G smart monitoring options
✅ IP66 protection, outdoor-ready design
✅ Full safety protections built-in
✅ 10-year warranty (terms & conditions apply)

Crown Micro VOLTMORE-VMGI-3KW-SP Single Phase On-Grid Solar Inverter

Why Choose Us?
100% Genuine
Cash on Delivery
After-Sales Support
Crown Micro VOLTMORE-VMGI-3KW-SP Single Phase On-Grid Solar Inverter
Crown Micro VOLTMORE-VMGI-3KW-SP Single Phase On-Grid Solar Inverter
45,359৳  Original price was: 45,359৳ .43,615৳ Current price is: 43,615৳ .

Crown Micro VOLTMORE-VMGI-3KW-SP Single Phase On-Grid Solar Inverter – Overview

The Crown Micro VOLTMORE-VMGI-3KW-SP inverter is a highly efficient, durable, and compact on-grid inverter built for residential and small commercial PV systems. With peak efficiency of 97.6%, IP66 protection, and Wi-Fi/4G monitoring, it delivers strong performance and easy system integration.

Key Benefits

  • High efficiency inverter: 97.6% max efficiency, 97.0% Euro.
  • Wide MPPT range (80V–560V DC) for flexible PV arrays.
  • Compact design with IP66-rated protection for outdoor use.
  • Integrated protections: DC switch, anti-islanding, overcurrent, reverse polarity, and surge.
  • Optional Wi-Fi/4G for remote monitoring and control.
  • Quick AC connector for fast and safe installation.
  • Transformer-less, lightweight design with natural convection cooling.
  • 10-year warranty ensures long-term reliability and support.

Technical Specifications

ParameterValue
ModelVMGI-3KW-SP
Rated Power3000VA / 3000W
Max. DC Voltage600VDC
Nominal Voltage380VDC
Start Voltage80V
MPPT Voltage Range80–560V
Number of MPPT1
Strings per MPPT1
Max. Input Current per MPPT13A
Max. Short-Circuit Current per MPPT15.6A
Nominal AC Output Power3000W
Max. AC Apparent Power3300VA
Nominal AC Voltage230V L-N
AC Grid Frequency Range50Hz / 60Hz ± 5Hz
Max. Output Current14.4A
Power Factor0.8 leading – 0.8 lagging
THDI<3%
Max. Efficiency97.6%
Euro Efficiency97.0%
DC SwitchYes
Anti-Islanding ProtectionYes
Output Overcurrent ProtectionYes
DC Reverse Polarity ProtectionYes
DC/AC Surge ProtectionDC Type III / AC Type III
Insulation DetectionYes
AC Short Circuit ProtectionYes
Dimensions (W×H×D)350 × 290 × 120 mm
Weight8 kg
Operating Temperature-25°C to +60°C
Cooling TypeNatural Convection
Max. Operating Altitude4000 m
Max. Operating Humidity0–100%
AC Output Terminal TypeQuick Connector
IP ClassIP66
TopologyTransformer-less
Communication InterfaceRS-485 / Wi-Fi / 4G
DisplayLCD / Bluetooth + App

Download Datasheet | For manufacturer details, see the official page: Crown Micro VOLTMORE-VMGI-3KW-SP

Crown Micro VOLTMORE-VMGI-3KW-SP Single Phase On-Grid Solar Inverter Datasheet
