Sale!

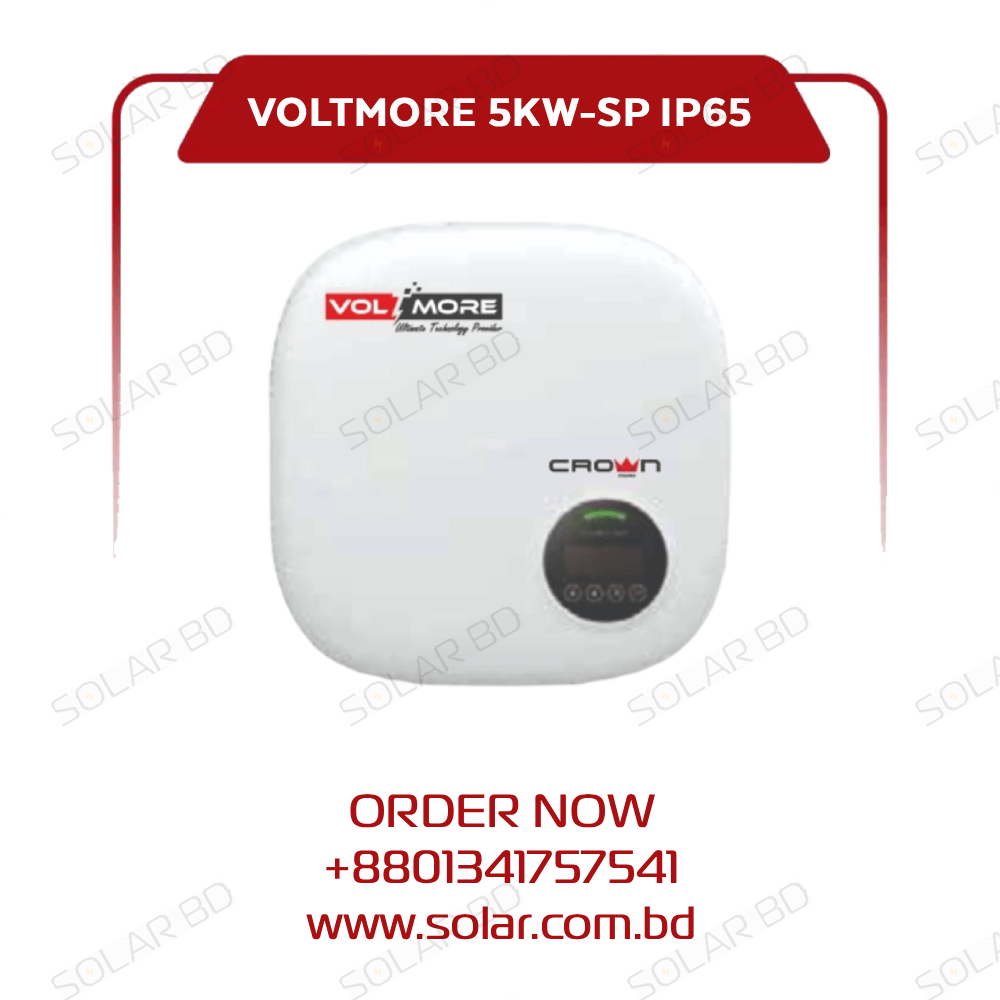

Crown Micro VOLTMORE-VMGI-5KW-SP Single Phase On-Grid Solar Inverter

Original price was: 70,193৳ .Current price is: 67,493৳ .

-4%

✅ Brand: Crown Micro
✅ Model: VOLTMORE-VMGI-5KW-SP
✅ SREDA Approved (Net Metering Program)
✅ Single-phase on-grid MPPT solar inverter
✅ Max. efficiency 98.3% / Euro 97.9%
✅ Wi-Fi & 4G monitoring options available
✅ IP65 enclosure, natural convection cooling
✅ Built-in protections with DC switch & surge
✅ 10-year warranty (terms & conditions apply)

Crown Micro VOLTMORE-VMGI-5KW-SP Single Phase On-Grid Solar Inverter

Why Choose Us?
100% Genuine
Cash on Delivery
After-Sales Support
Crown Micro VOLTMORE-VMGI-5KW-SP Single Phase On-Grid Solar Inverter
Crown Micro VOLTMORE-VMGI-5KW-SP Single Phase On-Grid Solar Inverter
70,193৳  Original price was: 70,193৳ .67,493৳ Current price is: 67,493৳ .

Crown Micro VOLTMORE-VMGI-5KW-SP Single Phase On-Grid Solar Inverter – Overview

The Crown Micro VOLTMORE-VMGI-5KW-SP is a high-performance single-phase on-grid solar inverter designed for residential and small commercial solar systems. Delivering peak efficiency of 98.3% and Euro efficiency of 97.9%, it ensures maximum energy conversion and reliable long-term use. With an IP65-rated enclosure and optional Wi-Fi/4G communication, it provides both durability and smart monitoring features.

Key Benefits

  • High efficiency: 98.3% maximum and 97.9% Euro efficiency.
  • Wide MPPT voltage range (80–560V DC) supports flexible PV configurations.
  • Compact, transformer-less design with natural convection cooling.
  • IP65 protection ensures reliable outdoor performance.
  • Integrated DC switch and protections: anti-islanding, overcurrent, reverse polarity, surge, and insulation detection.
  • Wi-Fi/4G communication optional for remote monitoring.
  • Quick AC output terminal for easy installation.
  • 10-year warranty guarantees long-term support and reliability.

Technical Specifications

ParameterValue
ModelVMGI-5KW-SP
Rated Power5000VA / 5000W
Max. DC Voltage600V
Nominal DC Voltage380V
Start Voltage120V
MPPT Voltage Range80–560V
Number of MPPT1
Strings per MPPT1
Max. Input Current per MPPT15A
Max. Short-Circuit Current per MPPT18A
Nominal AC Output Power5000W
Max. AC Apparent Power5500VA
Nominal AC Voltage230V L-N
AC Grid Frequency Range50Hz / 60Hz ± 5Hz
Max. Output Current24A
Power Factor0.8 leading – 0.8 lagging
THDI<3%
Max. Efficiency98.3%
Euro Efficiency97.9%
DC SwitchYes
Anti-Islanding ProtectionYes
Output Overcurrent ProtectionYes
DC Reverse Polarity ProtectionYes
DC/AC Surge ProtectionDC Type III / AC Type III
Insulation DetectionYes
AC Short Circuit ProtectionYes
Dimensions (W×H×D)380 × 390 × 150 mm
Weight12 kg
Operating Temperature-25°C to +60°C
Cooling TypeNatural Convection
Max. Operating Altitude4000 m
Max. Operating Humidity0–100%
AC Output Terminal TypeQuick Connector
IP ClassIP65
TopologyTransformer-less
CommunicationRS-485 / Wi-Fi / 4G
DisplayLCD / Bluetooth + App

Download Datasheet | For manufacturer details, see the official page: Crown Micro VOLTMORE-VMGI-5KW-SP

Crown Micro VOLTMORE-VMGI-5KW-SP Single Phase On-Grid Solar Inverter Datasheet
