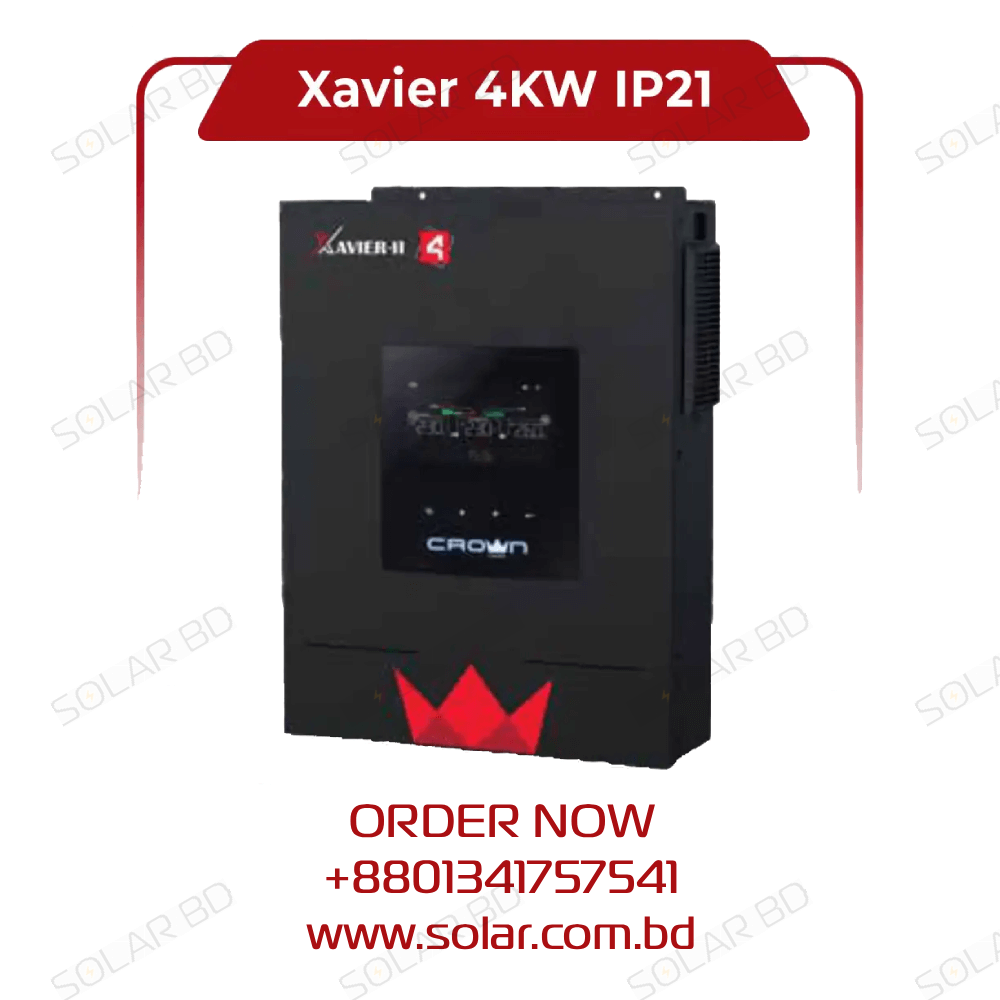

CrownMicro XAVIER-II-4KW 24V PV-5000W MPPT Solar Inverter Overview
The CrownMicro XAVIER-II-4KW 24V PV-5000 is a high-performance pure sine wave inverter with MPPT solar charging capability. It offers a wide PV input range of 60–450VDC, a powerful 120A MPPT controller, and dual output design for smart load management. With a peak efficiency of 93%, built-in BMS, and Wi-Fi connectivity, it provides a reliable and user-friendly solar power solution for both residential and commercial applications.
Key Benefits
- All-in-one hub: inverter + 120A MPPT + AC charger with clean, pure sine output.
- Dual output: smart load management separates essential vs. non-essential circuits.
- Battery-independent design: operate from PV/AC now; add a 24V battery later for backup and time-shifting.
- Wide PV window: 60–450VDC allows long PV strings and early startup in low light.
- User-friendly: color touch display, anti-dust design, USB/RS-232, Wi-Fi ready.
For a complete solar system, pair the CrownMicro XAVIER-II-4KW PV-5000W with premium solar panels and a properly sized 24V battery bank. Configure for self-consumption, backup, or office/shop loads using its integrated communications and dual-output logic.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Name | XAVIER-II-4KW |
| Rated Power | 4000VA / 4000W |
| Input Voltage | 230VAC |
| PV Input Voltage Range | 60–450VDC |
| Max PV Input Current | 27A |
| Battery Voltage | 24VDC |
| Efficiency (Peak) | 93% |
| Max Charge Current | 120A |
| Communication | Wi-Fi / RS-485 / CAN |
| Dimensions (D*W*H) | 107×322.6×420.3 mm |
| Weight | 9.5 kg |
| Operating Temperature | -10°C to 50°C |
Download Datasheet | For manufacturer details, see the official page: CrownMicro XAVIER-II-4KW
