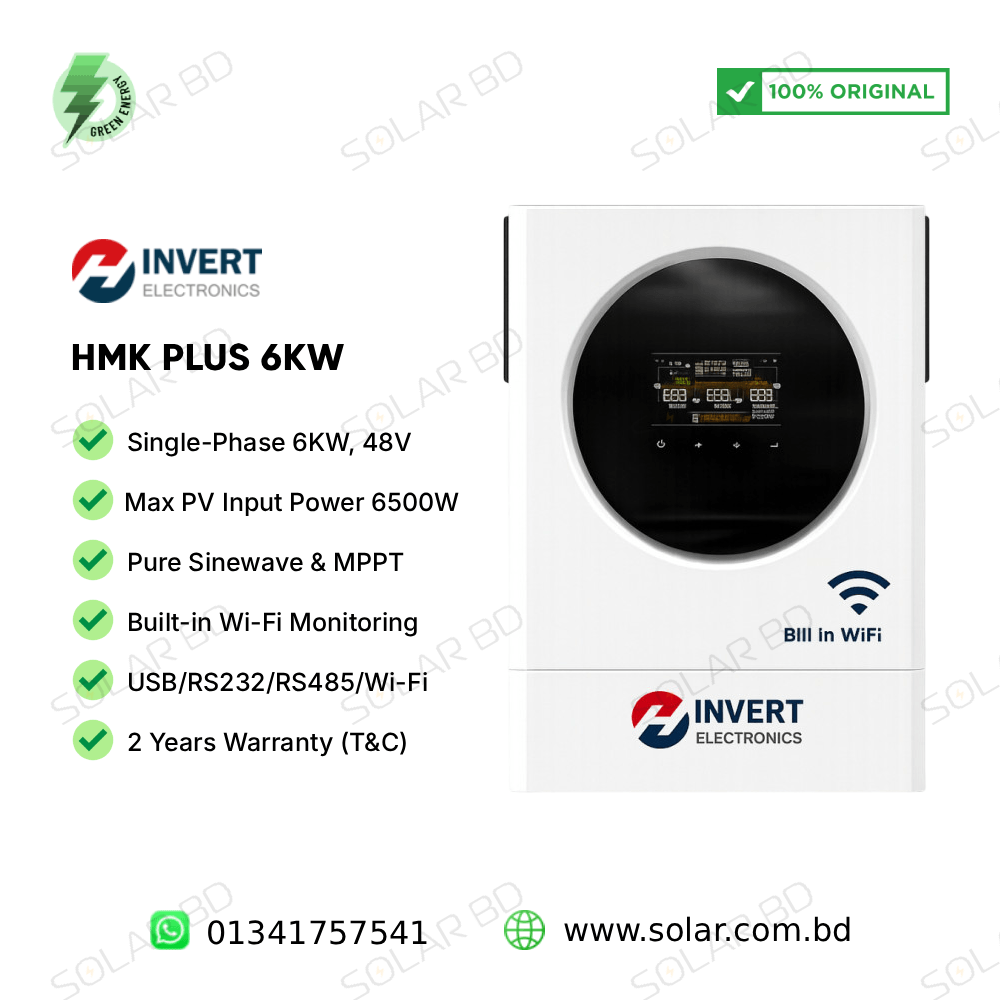

Hinvert 6KW 48V MPPT Solar Off-Grid Hybrid Inverter with Built-in WiFi – Overview
The Hinvert HMK-Plus 6KW 48V PV-6500W Single Phase Off-Grid Solar Inverter is a high-capacity hybrid inverter designed for demanding residential and commercial solar systems. Featuring advanced MPPT technology, pure sine wave output, and built-in WiFi monitoring, this inverter ensures efficient solar energy conversion and stable power delivery. It is ideal for running heavy appliances and maintaining uninterrupted power in off-grid environments.
Key Benefits
- Delivers powerful 6000W continuous output suitable for large homes and commercial applications.
- Advanced MPPT charge controller supports up to 6500W PV input for maximum solar efficiency.
- Pure sine wave output ensures safe operation for sensitive electronics and appliances.
- Built-in WiFi monitoring enables real-time tracking and remote system management.
- Supports operation with or without battery for flexible solar configurations.
- Wide MPPT voltage range (60V–450VDC) ensures compatibility with various solar panel arrays.
- High efficiency up to 98% reduces energy loss and improves system performance.
- Multiple communication interfaces (USB, RS232, RS485, WiFi) for seamless integration.
For a complete solar solution, pair this inverter with high-quality solar panels and a reliable battery bank to ensure efficient energy generation, storage, and uninterrupted power supply for both day and night usage.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Hinvert |
| Model | HMK-PLUS 6KW |
| Product Type | MPPT Off-Grid Hybrid Solar Inverter |
| Rated Power | 6000W / 6000VA |
| Surge Power | 12000VA |
| DC Input | 48VDC, 130A |
| Battery Voltage | 48V DC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 66VDC |
| AC Input Voltage | 230VAC |
| AC Output | 230VAC, 50/60Hz, 24.3A, Single Phase |
| Frequency | 50Hz / 60Hz |
| Waveform | Pure Sine Wave |
| Max PV Power | 6500W |
| Nominal PV Voltage | 240VDC |
| Max Solar Voltage (VOC) | 500VDC |
| MPPT Voltage Range | 60V – 450VDC |
| Max PV Input Current | 27A |
| MPPT Charging Current | 120A |
| Default Charging Current | 60A |
| DC Output | 54VDC |
| Efficiency | Up to 98% |
| Communication Interface | USB / RS232 / RS485 / WiFi |
| WiFi Monitoring | Built-in |
| Works Without Battery | Yes |
| Sleeping Mode | Yes |
| Display | LCD Display |
| Operating Temperature | -10°C to 50°C |
| Dimensions (H*W*D) | 440 x 300 x 128 mm |
| Weight | 12 kg |
| Country of Origin | China |
| Certification | RoHS & CE |
| Warranty | 2 Years |
For manufacturer details, see the official page: Hinvert HMK-PLUS 6KW
