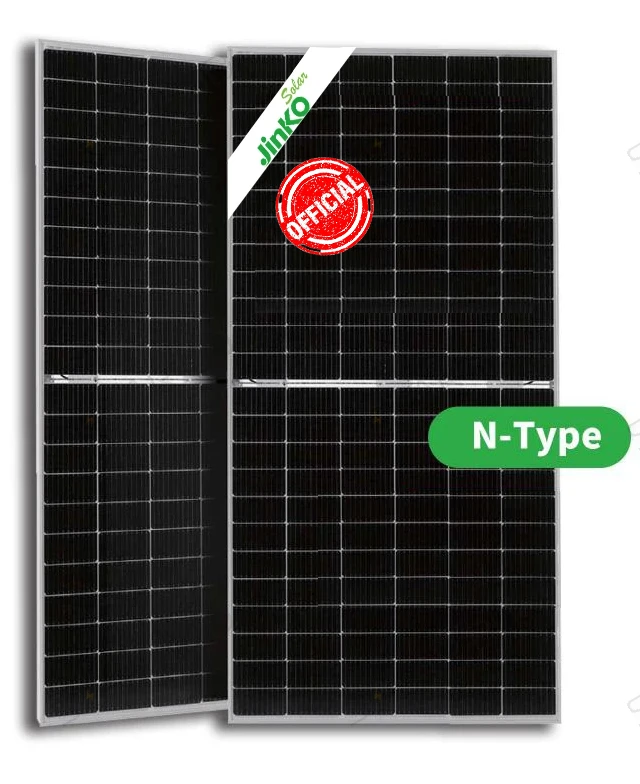

The Jinko Solar Tiger Neo 615W N‑Type Bifacial Solar Panel (Official) is a state-of-the-art solar module designed to deliver exceptional energy efficiency, reliability, and durability for commercial, industrial, and utility-scale solar installations. Part of Jinko Solar’s Tiger Neo series, this 615W module combines advanced N-type monocrystalline TOPCon cell technology with a bifacial design, ensuring superior performance even in challenging environmental conditions. With high power output, low degradation rates, and enhanced energy capture, this solar panel represents one of the most effective solutions for maximizing solar energy production today.
Cell Technology and Efficiency
This module utilizes N-Type monocrystalline cells, which are renowned for their high efficiency and resistance to Light Induced Degradation (LID) and LeTID effects. N-Type cells maintain long-term performance, ensuring that the panel continues to generate consistent energy over decades. The TOPCon (Tunnel Oxide Passivated Contact) technology further enhances cell efficiency, allowing the module to reach an impressive maximum power output of 615 watts. SMBB (Super Multi Busbar) technology improves current collection, reducing electrical losses and contributing to higher overall energy yield.
Bifacial Design for Enhanced Energy Production
The Jinko 615W panel features a dual-glass bifacial design, which allows the module to capture sunlight not only from the front but also from the rear side. This design can increase energy yield by up to 20% under optimal reflective surface conditions. The dual-glass construction enhances the structural strength of the panel while providing additional protection against environmental factors such as wind, snow, and hail. The module is rated to withstand wind loads of up to 2400 Pa and snow loads of up to 5400 Pa, making it suitable for a wide range of installation environments.
Electrical Specifications and Performance
The panel delivers a maximum power voltage (Vmp) of approximately 40.60 V and a maximum power current (Imp) of approximately 15.15 A. Its open-circuit voltage (Voc) is about 48.88 V, and short-circuit current (Isc) is 16.02 A. With a power tolerance of 0 to +3%, users can be confident in receiving reliable output close to the rated power. The module operates efficiently across a wide temperature range, from –40°C to +85°C, and features a temperature coefficient of –0.29%/°C for maximum power, ensuring stable performance in varying climatic conditions. The panel is compatible with systems up to 1500 V DC, making it suitable for large-scale solar arrays.
Durability and Build Quality
The Jinko 615W panel is constructed with an anodized aluminum alloy frame and a robust dual-glass structure. The junction box is IP68 rated, and the module uses MC4-compatible connectors for secure and reliable electrical connections. This robust design ensures long-term durability, resistance to PID (Potential Induced Degradation), and protection against mechanical and environmental stress.
Warranty and Reliability
Jinko Solar offers a 12-year product warranty and a 30-year linear performance warranty on the Tiger Neo 615W N-Type Bifacial module. This extensive warranty guarantees that the module will retain high performance over its operational life, with minimal degradation, making it a dependable choice for both investors and end-users seeking long-term energy generation.
Applications
This high-power solar panel is ideal for commercial rooftops, industrial solar projects, and utility-scale solar farms. Its bifacial design allows for enhanced energy capture in environments where reflective surfaces such as concrete, sand, or white gravel are present beneath the panels. The combination of N-Type cells, HOT 2.0 technology, and SMBB busbars ensures maximum efficiency, making it suitable for regions with high solar irradiance and demanding energy requirements.
Advantages
High maximum power output of 615W reduces the number of panels required for large-scale systems.
N-Type TOPCon cells minimize degradation and maintain energy production over time.
Bifacial design increases energy yield by capturing reflected sunlight from the rear.
Robust dual-glass construction withstands high wind and snow loads.
PID-resistant design ensures long-term stable performance.
Wide operating temperature range allows installation in diverse climatic conditions.
Conclusion
The Jinko Solar Tiger Neo 615W N‑Type Bifacial Solar Panel is a premium, high-efficiency module that combines cutting-edge solar technology with durable engineering. It is designed for users seeking maximum energy production, long-term reliability, and low operational losses. Whether for commercial, industrial, or utility-scale projects, this module offers superior performance, reduced system costs, and exceptional return on investment. Its advanced N-Type bifacial cells, high mechanical strength, and long warranty make it a standout choice in today’s solar energy market.
