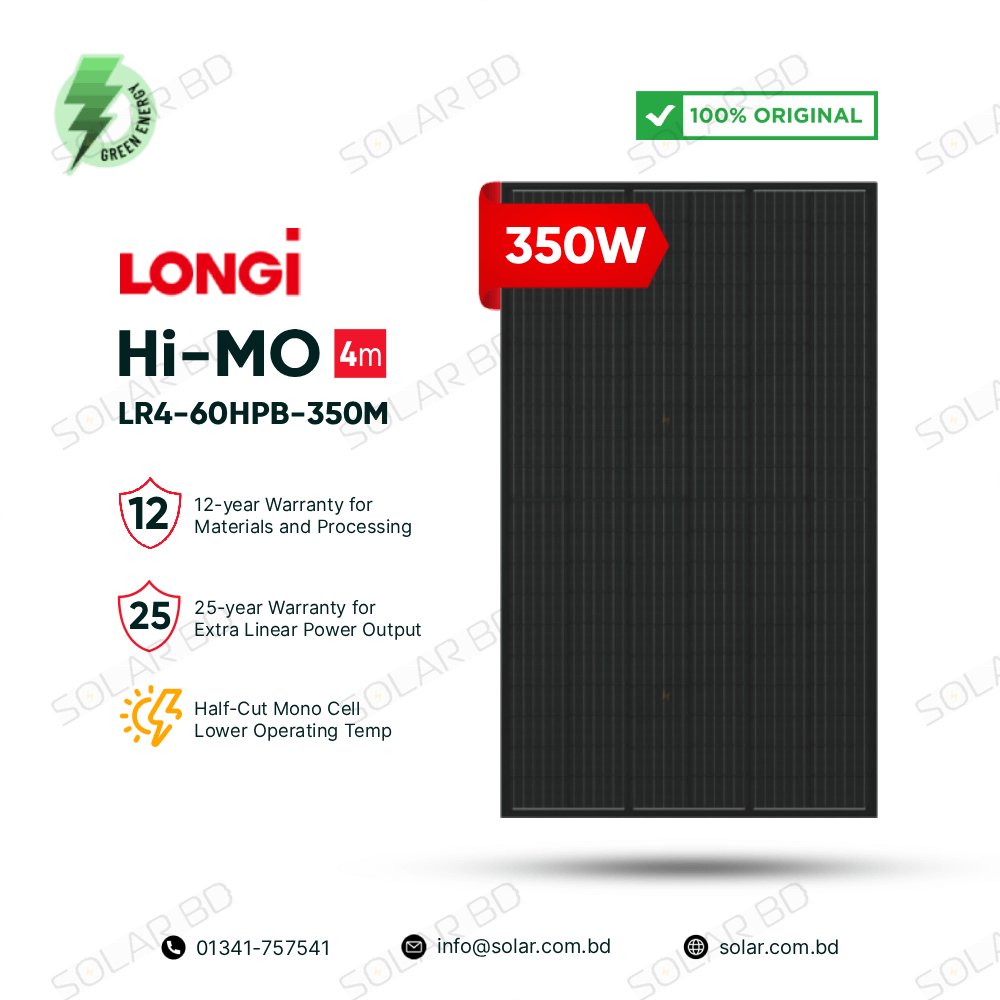

LONGi LR4-60HPB-350M 350W Half-Cut Mono Solar Panel – Overview
The LONGi LR4-60HPB-350M is a premium half-cut monocrystalline solar panel designed for long-lasting efficiency and performance. With advanced PERC technology and excellent temperature ratings, this module ensures reliable energy generation in residential, commercial, and industrial solar projects.
Key Benefits
- High efficiency up to 19.2% with half-cut mono PERC cells.
- Rated maximum power output of 350W under STC.
- Positive power tolerance (0 ~ +5W) for reliable energy yield.
- Durable 3.2mm coated tempered glass with anodized aluminum frame.
- Excellent performance under low-light and high-temperature conditions.
- Certified for IEC, UL, TÜV safety and reliability standards.
- Strong mechanical load capacity: 5400Pa front, 2400Pa rear.
- 25-year linear power output warranty with slow degradation rate.
This panel integrates effortlessly with MPPT/PWM charge controllers and works perfectly with Off-Grid inverters, On-Grid inverters, and Hybrid inverters, ensuring maximum solar energy efficiency and reliable performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LR4-60HPB-350M |
| Rated Maximum Power (Pmax) | 350W |
| Power Tolerance | 0 ~ +5W |
| Module Efficiency | 19.2% |
| Open Circuit Voltage (Voc) | 37.7V |
| Short Circuit Current (Isc) | 11.16A |
| Voltage at Maximum Power (Vmp) | 34.4V |
| Current at Maximum Power (Imp) | 10.18A |
| Dimensions | 1755 × 1038 × 35 mm |
| Weight | 19.5 kg |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 20A |
| Operating Temperature | -40°C ~ +85°C |
| Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
Download Datasheet | For manufacturer details, see the official page: LONGi LR4-60HPB-350M
