SUNSHINE 200W Germany Cell 12V Mono Solar Panel – Overview
The SUNSHINE 200W Germany Cell 12V Mono Solar Panel is a high-performance monocrystalline solar module engineered for dependable off-grid solar applications. Built using advanced Germany cell technology and MBB design, this solar panel delivers strong energy output, superior durability, and reliable long-term performance even in challenging environmental conditions.
Key Benefits
- Delivers up to 200W maximum power output ideal for 12V solar systems.
- High-efficiency monocrystalline Germany cell technology.
- MBB design improves light absorption and reduces internal power loss.
- Excellent performance even in low-light conditions.
- Salt mist and ammonia resistant for harsh environments.
- PID-free technology for long-term power stability.
- Class A safety rating for reliable solar installations.
- 25-year linear power output warranty for long service life.
This panel integrates seamlessly with MPPT and PWM solar charge controllers and works efficiently with inverters and battery systems, ensuring optimal solar energy performance and dependable power generation.

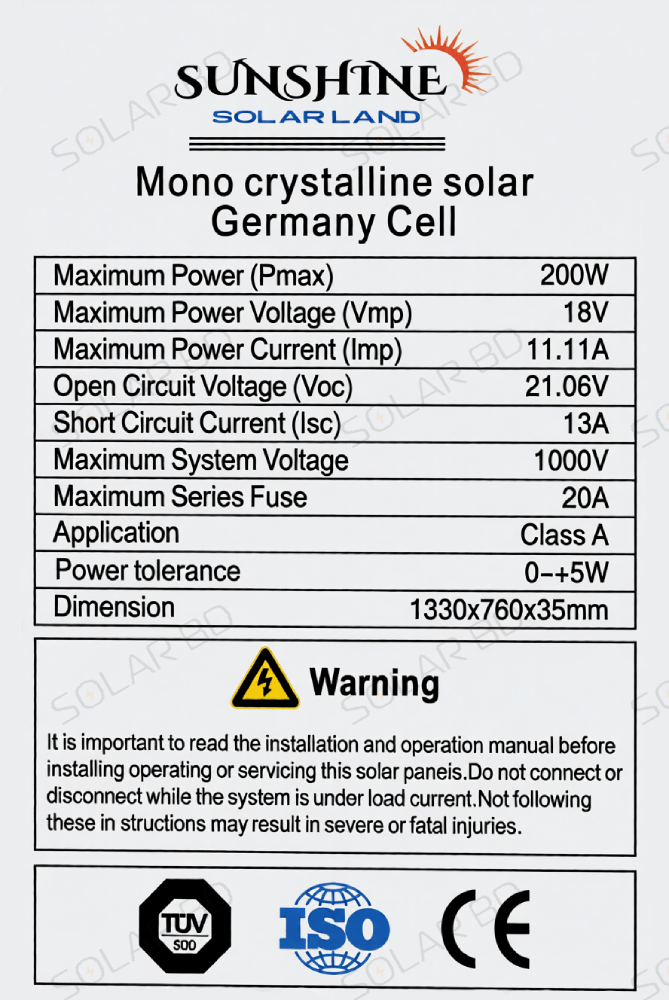

Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 18V |
| Maximum Power Current (Imp) | 11.11A |
| Open Circuit Voltage (Voc) | 21.06V |
| Short Circuit Current (Isc) | 13A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse | 20A |
| Application | Class A |
| Power Tolerance | 0~+5W |
| Dimension | 1330 × 760 × 35 mm |
