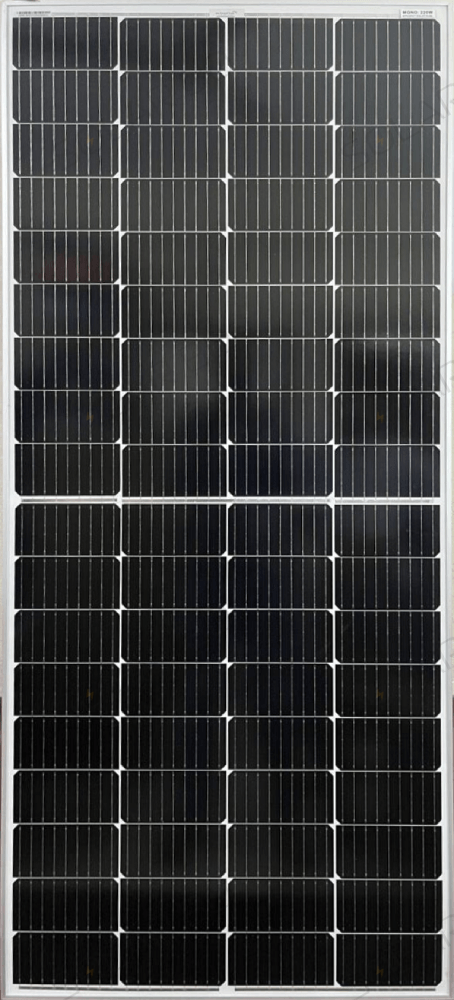

SUNSHINE 220W Germany Cell 12V Mono Solar Panel – Overview
The SUNSHINE 220W Germany Cell 12V Mono Solar Panel is a high-efficiency monocrystalline solar module designed for reliable off-grid solar applications. Built using advanced Germany cell technology and modern MBB design, this panel delivers excellent energy conversion, strong durability, and stable long-term performance even in demanding environmental conditions.
Key Benefits
- Delivers up to 220W maximum power output for 12V solar systems.
- High-efficiency monocrystalline Germany cell technology.
- MBB design improves light absorption and reduces power loss.
- Excellent low-light performance for cloudy conditions.
- Salt mist and ammonia resistant for harsh environments.
- PID-free technology ensures long-term stable power output.
- Class A rated module for safe solar installations.
- 25-year linear power output warranty.
This panel integrates seamlessly with MPPT and PWM solar charge controllers and operates efficiently with inverters and battery systems, ensuring maximum solar energy efficiency and dependable power generation.

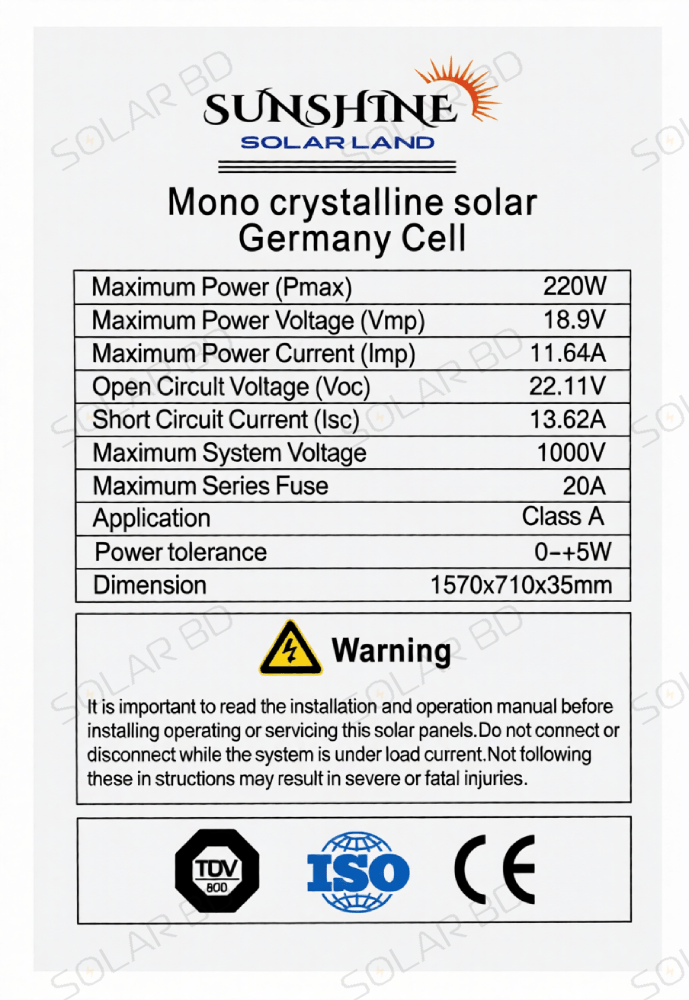

Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 220W |
| Maximum Power Voltage (Vmp) | 18.9V |
| Maximum Power Current (Imp) | 11.64A |
| Open Circuit Voltage (Voc) | 22.11V |
| Short Circuit Current (Isc) | 13.52A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse | 20A |
| Application | Class A |
| Power Tolerance | 0~+5W |
| Dimension | 1570 × 710 × 35 mm |
নোটঃ SUNSHINE প্যানেল গুলো ট্রান্সপোর্টে গ্লাস ভেঙ্গে গেলে আমরা নতুন একটা প্যানেল দিবো। যদি গ্লাস না ভাঙ্গে, শুধু স্ক্রাচ (দাগ ) বা ফ্রেমে কোন ক্ষতি হয় তাহলে রিটার্ন / রিফান্ড হবে না।
