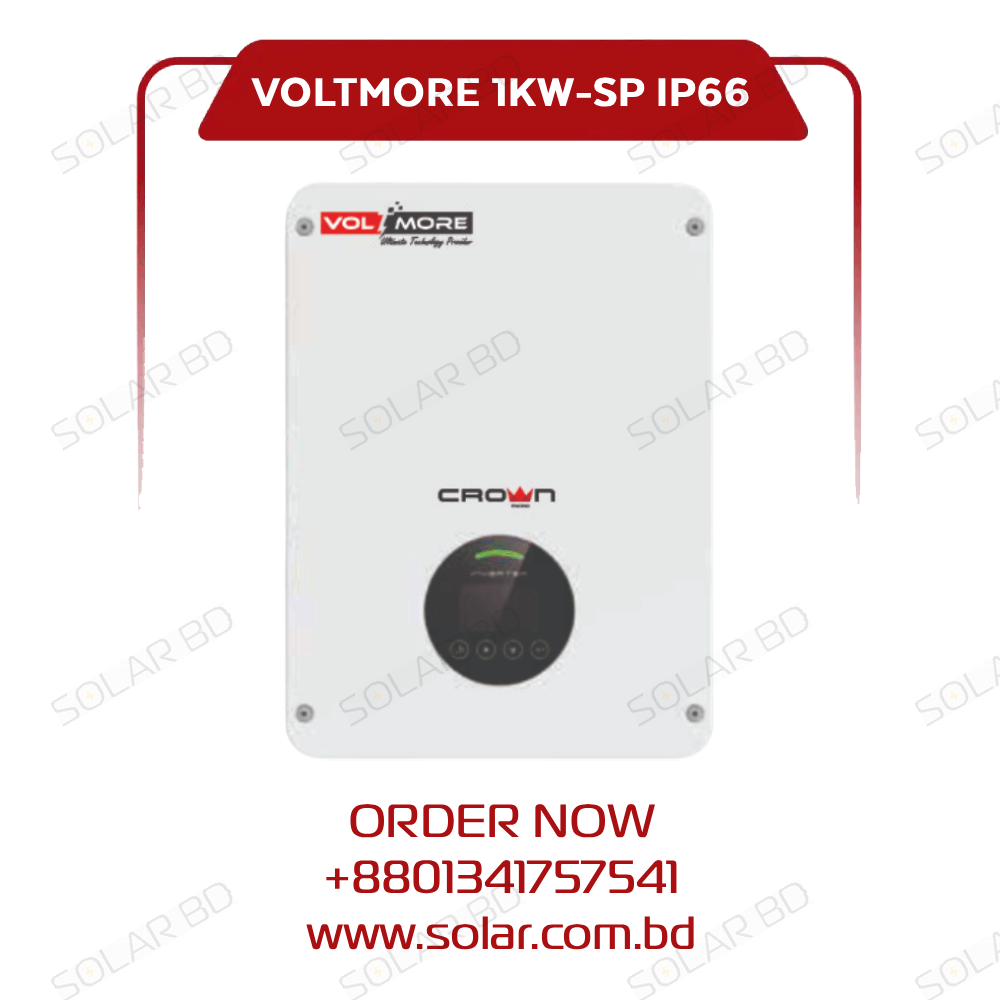

Crown Micro VOLTMORE-VMGI-1KW-SP Single Phase On-Grid Solar Inverter

Original price was: 39,817৳ .Current price is: 38,286৳ .

-4%

✅ Brand: Crown Micro
✅ Model: VOLTMORE-VMGI-1KW-SP
✅ SREDA Approved (Net Metering Program)
✅ Single-phase on-grid MPPT solar inverter
✅ Max. efficiency 97.0% / Euro 96.5%
✅ Wi-Fi & 4G monitoring options available
✅ IP66 protection, outdoor-ready design
✅ Full safety protections with DC switch
✅ 10-year warranty (terms & conditions apply)

Crown Micro VOLTMORE-VMGI-1KW-SP Single Phase On-Grid Solar Inverter

Why Choose Us?
100% Genuine
Cash on Delivery
After-Sales Support
Crown Micro VOLTMORE-VMGI-1KW-SP Single Phase On-Grid Solar Inverter
Crown Micro VOLTMORE-VMGI-1KW-SP Single Phase On-Grid Solar Inverter
39,817৳  Original price was: 39,817৳ .38,286৳ Current price is: 38,286৳ .

Crown Micro VOLTMORE-VMGI-1KW-SP Single Phase On-Grid Solar Inverter – Overview

The Crown Micro VOLTMORE-VMGI-1KW-SP is a compact, reliable, and high-efficiency on-grid solar inverter designed for residential and small commercial PV installations. Featuring a wide MPPT range, IP66 weatherproof rating, and integrated protections, it ensures long-term durability and maximum energy harvest from your solar system.

Key Benefits

  • High efficiency: up to 97.0% (Euro efficiency 96.5%).
  • Wide MPPT tracking range (60–560V DC) for versatile PV setups.
  • Compact, lightweight design with IP66 enclosure for outdoor use.
  • Optional Wi-Fi and 4G modules for smart monitoring via app.
  • Comprehensive protections: DC switch, anti-islanding, surge, and overcurrent protection.
  • Transformer-less topology for lightweight, reliable performance.
  • LCD with Bluetooth App for easy monitoring and control.

Technical Specifications

ParameterValue
ModelVMGI-1KW-SP
Rated Power1000VA / 1000W
Max. DC Voltage600VDC
Nominal Voltage380VDC
Start Voltage60V
MPPT Voltage Range60–560V
Number of MPPT1
Strings per MPPT1
Max. Input Current per MPPT13A
Max. Short-Circuit Current per MPPT15.6A
Nominal AC Output Power1000W
Max. AC Apparent Power1100VA
Nominal AC Voltage230V L-N
AC Grid Frequency Range50Hz / 60Hz ± 5Hz
Max. Output Current4.8A
Power Factor0.8 leading – 0.8 lagging
THDI<3%
Max. Efficiency97.0%
Euro Efficiency96.5%
DC SwitchYes
Anti-Islanding ProtectionYes
Output Overcurrent ProtectionYes
DC Reverse Polarity ProtectionYes
DC/AC Surge ProtectionDC Type III / AC Type III
Insulation DetectionYes
AC Short Circuit ProtectionYes
Dimensions (W×H×D)350 × 290 × 120 mm
Weight7.3 kg
Operating Temperature-25°C to +60°C
Cooling TypeNatural Convection
Max. Operating Altitude4000 m
Max. Operating Humidity0–100%
AC Output Terminal TypeQuick Connector
IP ClassIP66
TopologyTransformer-less
Communication InterfaceRS-485 / Wi-Fi / 4G
DisplayLCD / Bluetooth + App

Download Datasheet | For manufacturer details, see the official page: Crown Micro VOLTMORE-VMGI-1KW-SP

Crown Micro VOLTMORE-VMGI-1KW-SP Single Phase On-Grid Solar Inverter Datasheet
