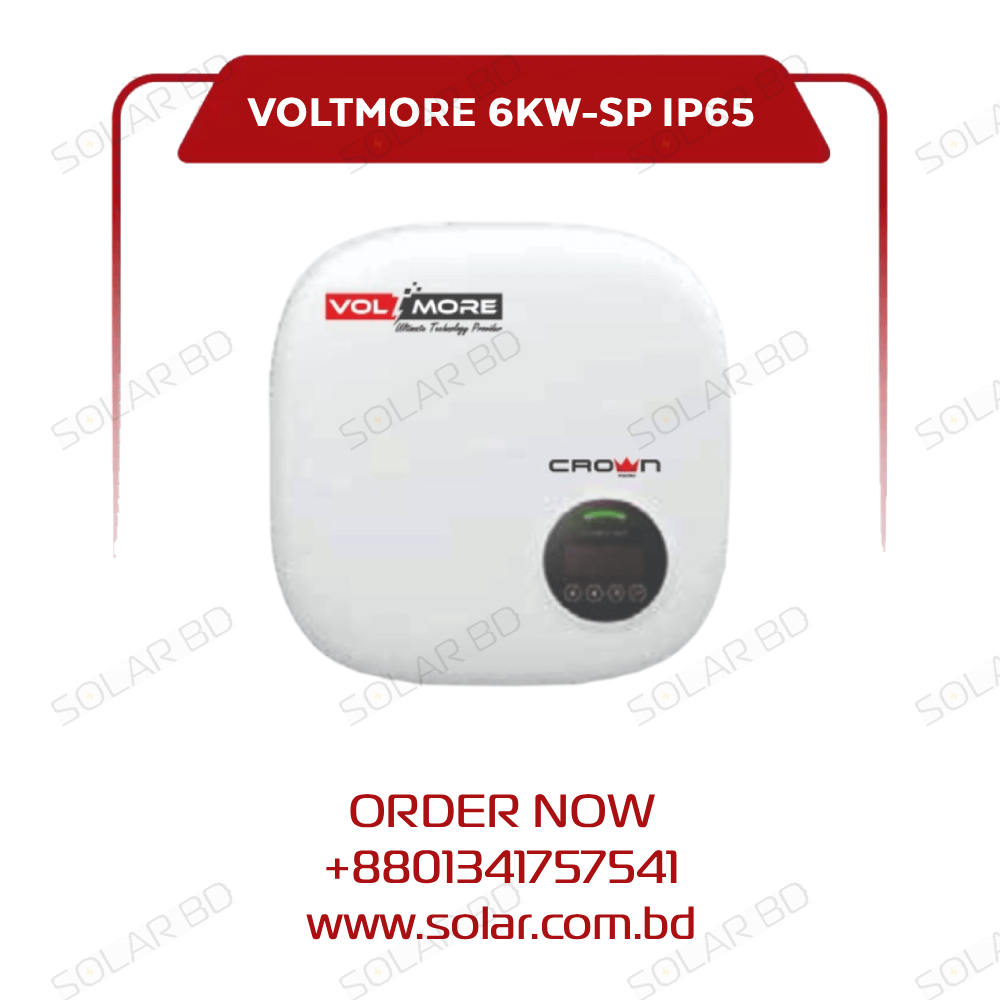

Crown Micro VOLTMORE-VMGI-6KW-SP Single Phase On-Grid Solar Inverter – Overview
The Crown Micro VOLTMORE-VMGI-6KW-SP inverter is a powerful and efficient solution for residential and small commercial solar installations. With peak efficiency of 98.3% and Euro efficiency of 97.9%, it ensures maximum energy conversion. Its IP65-rated enclosure allows for reliable outdoor use, while optional Wi-Fi/4G connectivity enables smart system monitoring.
Key Benefits
- High conversion efficiency: 98.3% maximum and 97.9% Euro efficiency.
- Wide MPPT voltage range (80–560V DC) ensures compatibility with different PV arrays.
- IP65 enclosure provides strong protection for outdoor environments.
- Built-in DC switch and protections: anti-islanding, overcurrent, reverse polarity, surge, and insulation detection.
- Supports Wi-Fi/4G connectivity for real-time monitoring.
- Lightweight transformer-less design with natural convection cooling.
- Quick AC output connector makes installation easy and safe.
- Backed by 10-year warranty for reliability and peace of mind.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | VMGI-6KW-SP |
| Rated Power | 6000VA / 6000W |
| Max. DC Voltage | 600V |
| Nominal DC Voltage | 380V |
| Start Voltage | 120V |
| MPPT Voltage Range | 80–560V |
| Number of MPPT | 1 |
| Strings per MPPT | 1 |
| Max. Input Current per MPPT | 15A |
| Max. Short-Circuit Current per MPPT | 18A |
| Nominal AC Output Power | 6000W |
| Max. AC Apparent Power | 6600VA |
| Nominal AC Voltage | 230V L-N |
| AC Grid Frequency Range | 50Hz / 60Hz ± 5Hz |
| Max. Output Current | 26A |
| Power Factor | 0.8 leading – 0.8 lagging |
| THDI | <3% |
| Max. Efficiency | 98.3% |
| Euro Efficiency | 97.9% |
| DC Switch | Yes |
| Anti-Islanding Protection | Yes |
| Output Overcurrent Protection | Yes |
| DC Reverse Polarity Protection | Yes |
| DC/AC Surge Protection | DC Type III / AC Type III |
| Insulation Detection | Yes |
| AC Short Circuit Protection | Yes |
| Dimensions (W×H×D) | 380 × 390 × 150 mm |
| Weight | 15 kg |
| Operating Temperature | -25°C to +60°C |
| Cooling Type | Natural Convection |
| Max. Operating Altitude | 4000 m |
| Max. Operating Humidity | 0–100% |
| AC Output Terminal Type | Quick Connector |
| IP Class | IP65 |
| Topology | Transformer-less |
| Communication | RS-485 / Wi-Fi / 4G |
| Display | LCD / Bluetooth + App |
Download Datasheet | For manufacturer details, see the official page: Crown Micro VOLTMORE-VMGI-6KW-SP
