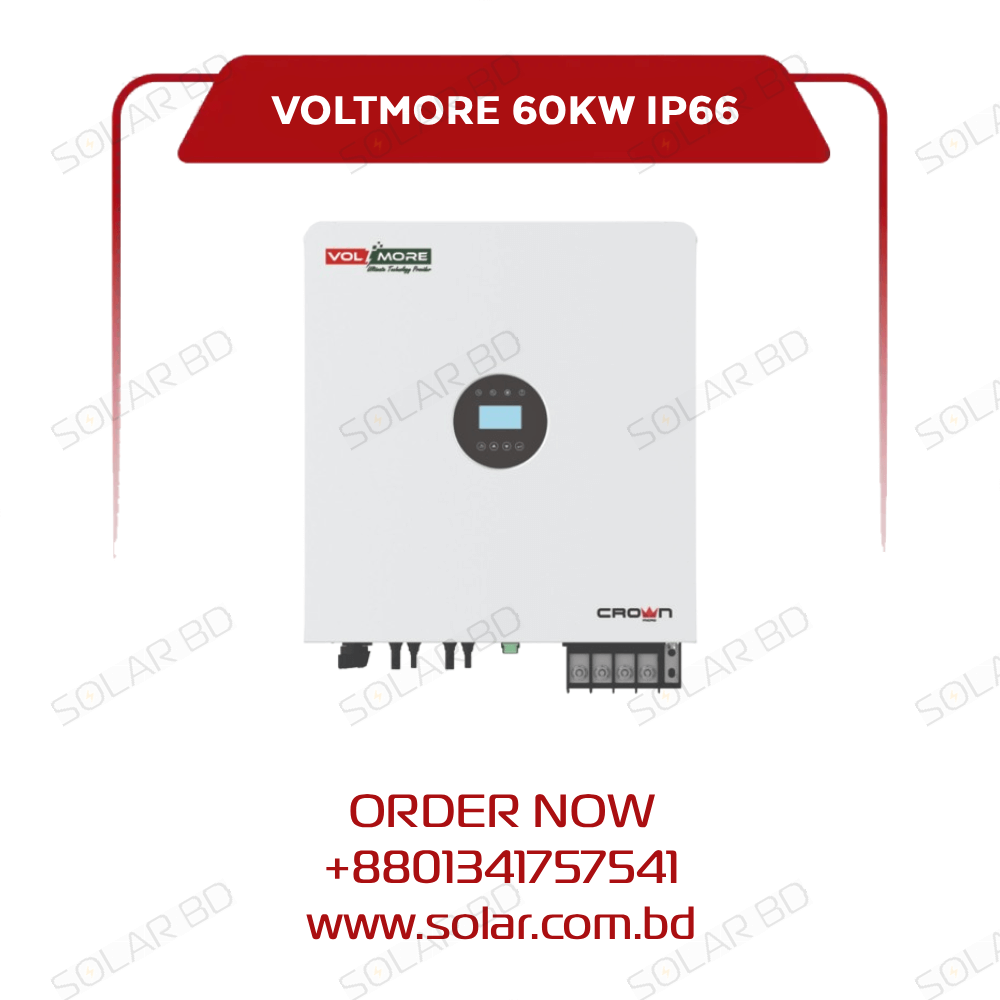

Crown Micro VOLTMORE VMGI-60KW Three Phase On-Grid Solar Inverter – Overview
The Crown Micro VOLTMORE VMGI-60KW is a high-capacity on-grid three phase solar inverter designed for industrial-scale energy systems. With superior efficiency, multiple MPPT trackers, and robust safety features, it ensures reliable solar energy conversion for large installations.
Key Benefits
- On-grid three phase MPPT based inverter for industrial-scale systems.
- Delivers 60kW nominal AC power with 66kVA peak output capacity.
- High efficiency up to 98.5% and Euro efficiency of 98.2%.
- Wide MPPT voltage range (200V–1000V) with 3 independent trackers.
- Comprehensive safety with DC switch, surge, and short-circuit protection.
- Fan cooling ensures long-term reliable operation.
- IP66-rated enclosure for outdoor environments.
- Optional Wi-Fi/4G connectivity for remote system monitoring.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | VMGI-60KW |
| Rated Power | 60000W / 60000VA |
| Nominal AC Output Power | 60000W |
| Max. AC Output Power | 66000VA |
| Max. DC Voltage | 1100V |
| Nominal DC Voltage | 650V |
| Start Voltage | 250V |
| MPPT Voltage Range | 200–1000V |
| MPPT Trackers | 3 |
| Strings per MPPT | 4 |
| Max. Input Current per MPPT | 32A |
| Max. Short-circuit Current per MPPT | 40A |
| Nominal AC Voltage | 400V, 3L+N+PE |
| AC Grid Frequency | 50/60Hz (±5Hz) |
| Max. Output Current | 95.8A |
| Power Factor | 0.8 leading – 0.8 lagging |
| THD | <3% |
| Max. Efficiency | 98.5% |
| Euro Efficiency | 98.2% |
| Dimensions (W×H×D) | 515 × 585 × 287 mm |
| Weight | 55 kg |
| Operating Temperature | -25°C ~ +60°C |
| Cooling | Fan Cooling |
| Max. Operating Altitude | 4000m |
| Protection Level | IP66 |
| Communication | RS485 / Wi-Fi / 4G |
| Display | LCD |
Download Datasheet | For manufacturer details, see the official page: Crown Micro VOLTMORE VMGI-60KW
