Crown Micro VOLTMORE-VMGI-3.6KW-SP Single Phase On-Grid Solar Inverter

✅ Brand: Crown Micro
✅ Model: VOLTMORE-VMGI-3.6KW-SP
✅ SREDA Approved (Net Metering Program)
✅ Single-phase on-grid MPPT solar inverter
✅ Max. efficiency 98.1% / Euro 97.7%
✅ Wi-Fi & 4G smart monitoring options
✅ IP65 protection, outdoor-ready design
✅ Full protections with DC switch & surge
✅ 10-year warranty (terms & conditions apply)

Crown Micro VOLTMORE-VMGI-3.6KW-SP Single Phase On-Grid Solar Inverter

Why Choose Us?
100% Genuine
Cash on Delivery
After-Sales Support
Crown Micro VOLTMORE-VMGI-3.6KW-SP Single Phase On-Grid Solar Inverter
Crown Micro VOLTMORE-VMGI-3.6KW-SP Single Phase On-Grid Solar Inverter

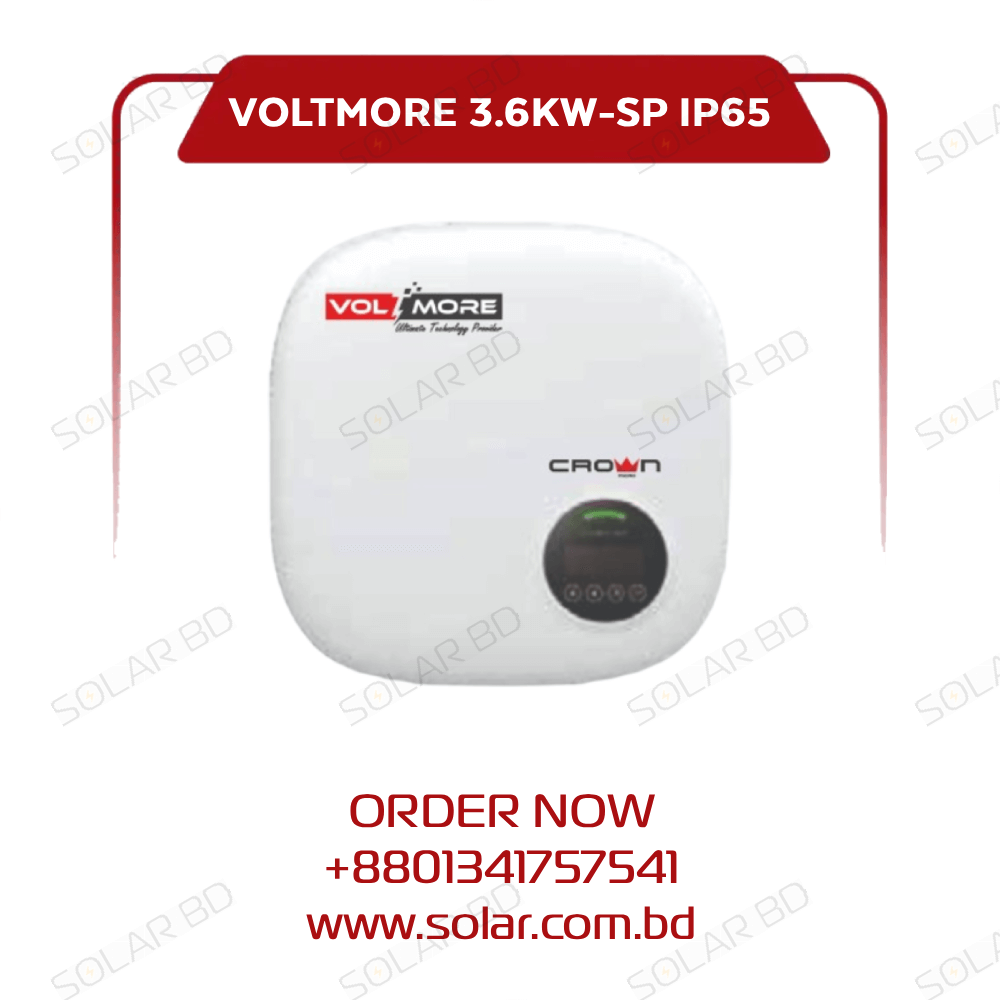

Crown Micro VOLTMORE-VMGI-3.6KW-SP Single Phase On-Grid Solar Inverter – Overview

The Crown Micro VOLTMORE-VMGI-3.6KW-SP is a high-performance on-grid solar inverter that offers exceptional efficiency of up to 98.1% and Euro efficiency of 97.7%. Its compact, transformer-less design with IP65 protection ensures reliable long-term outdoor use. With optional Wi-Fi/4G monitoring, users can track performance in real-time.

Key Benefits

  • High conversion efficiency: 98.1% peak and 97.7% Euro efficiency.
  • Wide MPPT voltage range (80–560V DC) supports versatile PV module setups.
  • Durable IP65-rated design with natural convection cooling.
  • Integrated protections: DC switch, anti-islanding, overcurrent, reverse polarity, surge protection, and insulation detection.
  • Optional Wi-Fi/4G communication modules for monitoring and remote control.
  • Quick AC connector for easy installation.
  • Compact and lightweight for residential and small commercial PV systems.
  • 10-year warranty for long-term peace of mind.

Technical Specifications

ParameterValue
ModelVMGI-3.6KW-SP
Rated Power3600VA / 3600W
Max. DC Voltage600V
Nominal DC Voltage380V
Start Voltage120V
MPPT Voltage Range80V–560V
Number of MPPT1
Strings per MPPT1
Max. Input Current per MPPT15A
Max. Short-Circuit Current per MPPT18A
Nominal AC Output Power3600W
Max. AC Apparent Power3960VA
Nominal AC Voltage230V L-N
AC Grid Frequency Range50Hz / 60Hz ± 5Hz
Max. Output Current17A
Power Factor0.8 leading – 0.8 lagging
THDI<3%
Max. Efficiency98.1%
Euro Efficiency97.7%
DC SwitchYes
Anti-Islanding ProtectionYes
Output Overcurrent ProtectionYes
DC Reverse Polarity ProtectionYes
DC/AC Surge ProtectionDC Type III / AC Type III
Insulation DetectionYes
AC Short Circuit ProtectionYes
Dimensions (W×H×D)380 × 390 × 150 mm
Weight10 kg
Operating Temperature-25°C to +60°C
Cooling TypeNatural Convection
Max. Operating Altitude4000 m
Max. Operating Humidity0–100%
AC Output Terminal TypeQuick Connector
IP ClassIP65
TopologyTransformer-less
CommunicationRS-485 / Wi-Fi / 4G
DisplayLCD / Bluetooth + App

Download Datasheet | For manufacturer details, see the official page: Crown Micro VOLTMORE-VMGI-3.6KW-SP

Crown Micro VOLTMORE-VMGI-3.6KW-SP Single Phase On-Grid Solar Inverter Datasheet
