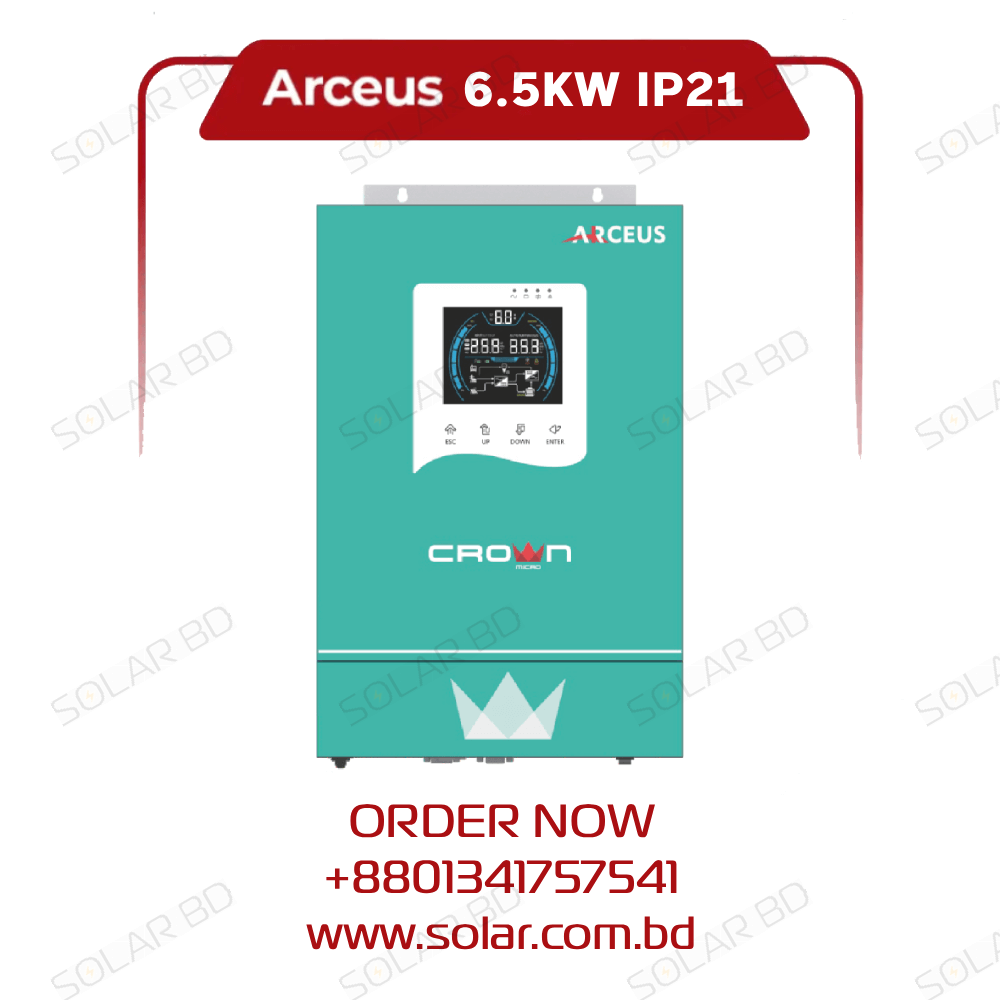

CrownMicro ARCEUS-6.5KW 48V PV-7800W MPPT Solar Inverter – Overview
The CrownMicro ARCEUS-6.5KW 48V PV-7800W inverter is a high-performance pure sine wave solar inverter with integrated MPPT technology. Designed for flexible residential and commercial use, it supports both grid-tied and off-grid applications, with or without batteries. Built-in Wi-Fi, advanced BMS, and multiple protection features ensure reliable and efficient solar power conversion.
Key Benefits
- Pure sine wave MPPT inverter with high efficiency of 94%.
- Wide MPPT voltage range (90VDC – 550VDC) for versatile solar setups.
- Dual output for smart load management and priority power supply.
- Compatible with AC mains or generator input for backup solutions.
- Advanced protection against overload, short-circuit, and DC faults.
- Built-in Wi-Fi and BMS for monitoring and intelligent system control.
- Parallel operation up to 4 units (optional for 6.5)
For best performance, pair this inverter with high-efficiency solar panels and a reliable battery bank, ensuring long-term stability and power security.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Name | ARCEUS-6.5KW |
| Rated Power | 6500VA / 6500W |
| AC Input Voltage | 220 / 230 / 240 VAC ± 3% |
| Voltage Range | 90–280VAC (single phase) |
| Output Power Factor | 1.0 |
| Waveform | Pure sine wave |
| Max. Efficiency (Peak) | 94% |
| Charger Type | MPPT |
| Max PV Input Power | 7800W |
| PV Voltage Range | 90–550VDC |
| Max PV Input Current | 27A |
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-acid |
| Display | 5.2” LCD, multifunction |
| Communication | RS485 / CAN / USB / Wi-Fi |
| Dimension (W*H*D) | 375*570*200 mm |
| Net Weight | 9.2 kg |
| Operating Temp. | 0°C to 40°C |
| Storage Temp. | -15°C to 60°C |
Download Datasheet | For manufacturer details, see the official page: CrownMicro ARCEUS-6.5KW
