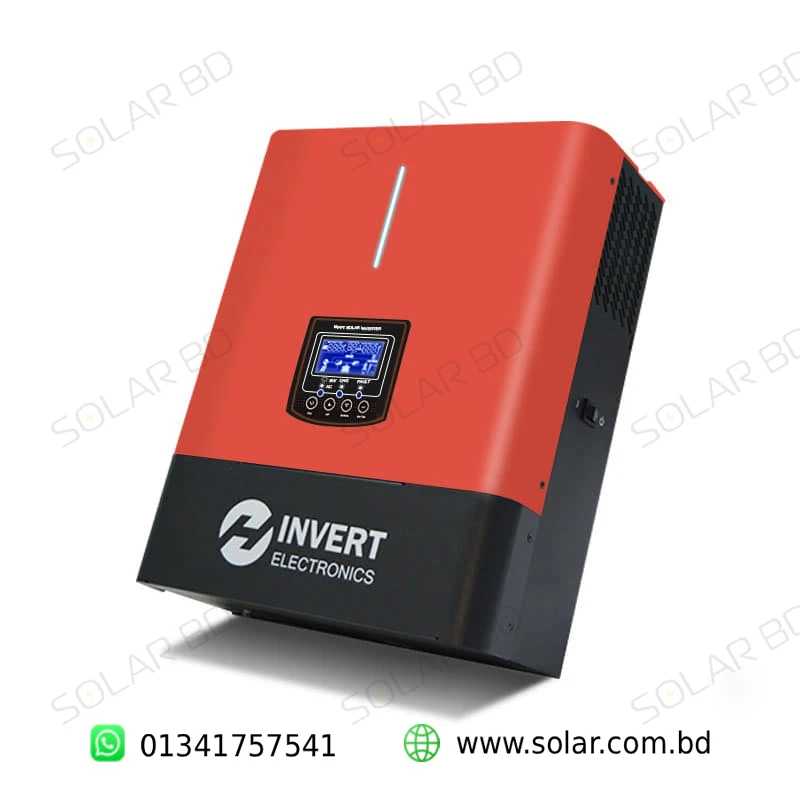

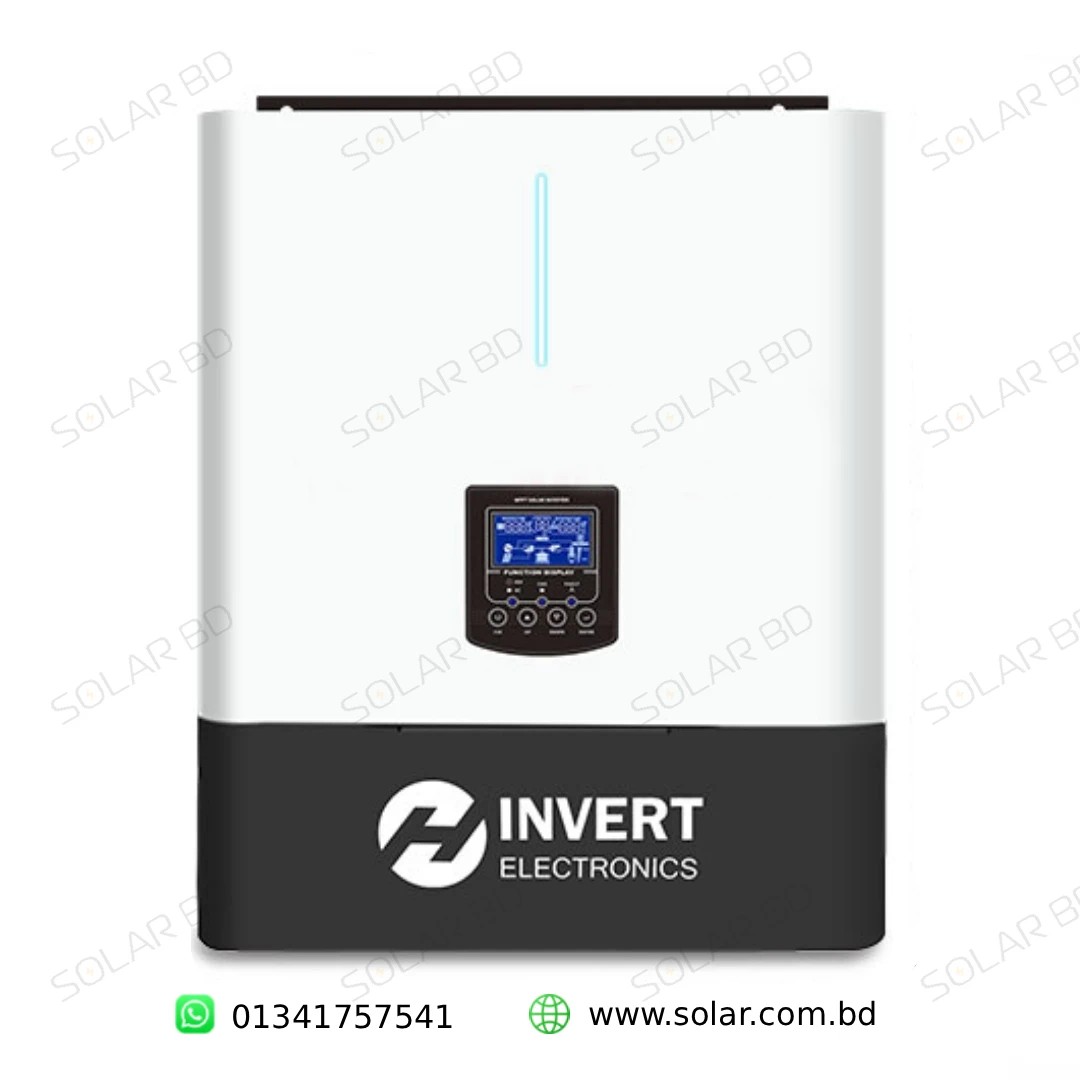

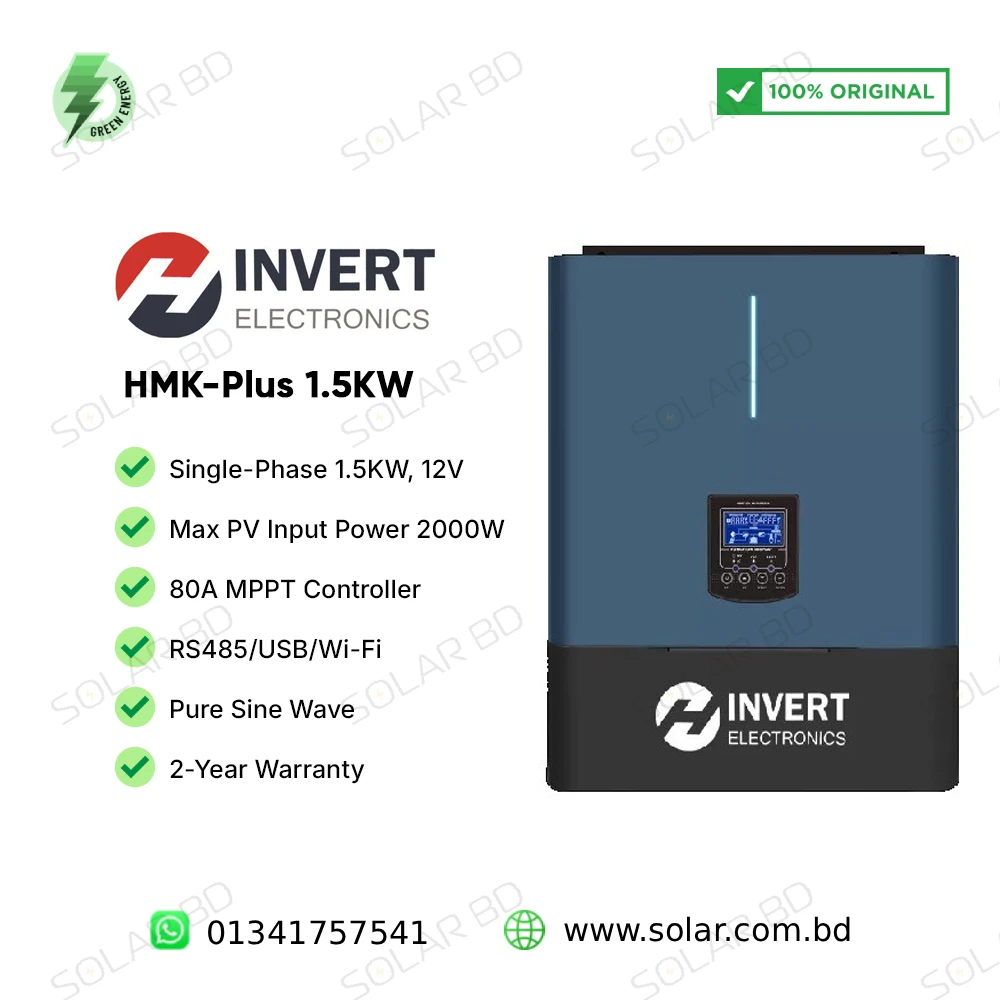

The Hinvert HMK-Plus 1.5kW MPPT Solar Inverter is a hybrid off-grid inverter with built-in MPPT solar charge controller and pure sine wave output. It supports multiple charging modes and is ideal for powering household appliances using solar energy, grid power, or generator.
đ Key Features
Model : HMK-Plus 1.5kW
Rated Power : 1500W
Pure Sine Wave Output for stable performance
MPPT Solar Charge Controller with high efficiency
LCD Display for easy monitoring
Multiple charging modes: Only Solar, Utility Priority, PV Priority, Utility + Solar Hybrid
Intelligent fan for efficient cooling
âī¸ Specifications â Hinvert HMK-Plus 1.5kW MPPT Solar Inverter
| Input & Output | |
|---|---|
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (PC), 90-280 VAC (Home) |
| Frequency Range | Auto-Sense 50/60 Hz |
| Output Waveform | Pure Sine Wave |
| AC Voltage Regulation (Batt. Mode) | 230 VAC Âą 5% |
| Surge Power | 3000 VA |
| Battery & Charging | |
| Battery Voltage | 12 VDC |
| Maximum Charge Current (Grid) | 100 A |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Battery Low/High Voltage Cut-Off | Adjustable |
| Solar Charger (MPPT) | |
| Max PV Array Power | 2000 W |
| MPPT Operating Voltage | 100-430 VDC |
| Max Open-Circuit Voltage | 450 VDC |
| Max Charging Current | 80 A |
| MPPT Efficiency | Up to 98% |
| Physical & Environmental | |
| Dimensions | 100 Ã 310 Ã 380 mm |
| Weight | 8.7 kg |
| Operating Temperature | 0 °C â 55 °C |
| Storage Temperature | -15 °C â 60 °C |
đ Benefits
Combines inverter + MPPT controller in one unit
Higher solar charging efficiency
Uninterrupted power supply with multiple inputs
Ideal for household appliances like TVs, fans, lights, computers, etc.
đ Warranty & Support
Warranty: Typically 24 months
