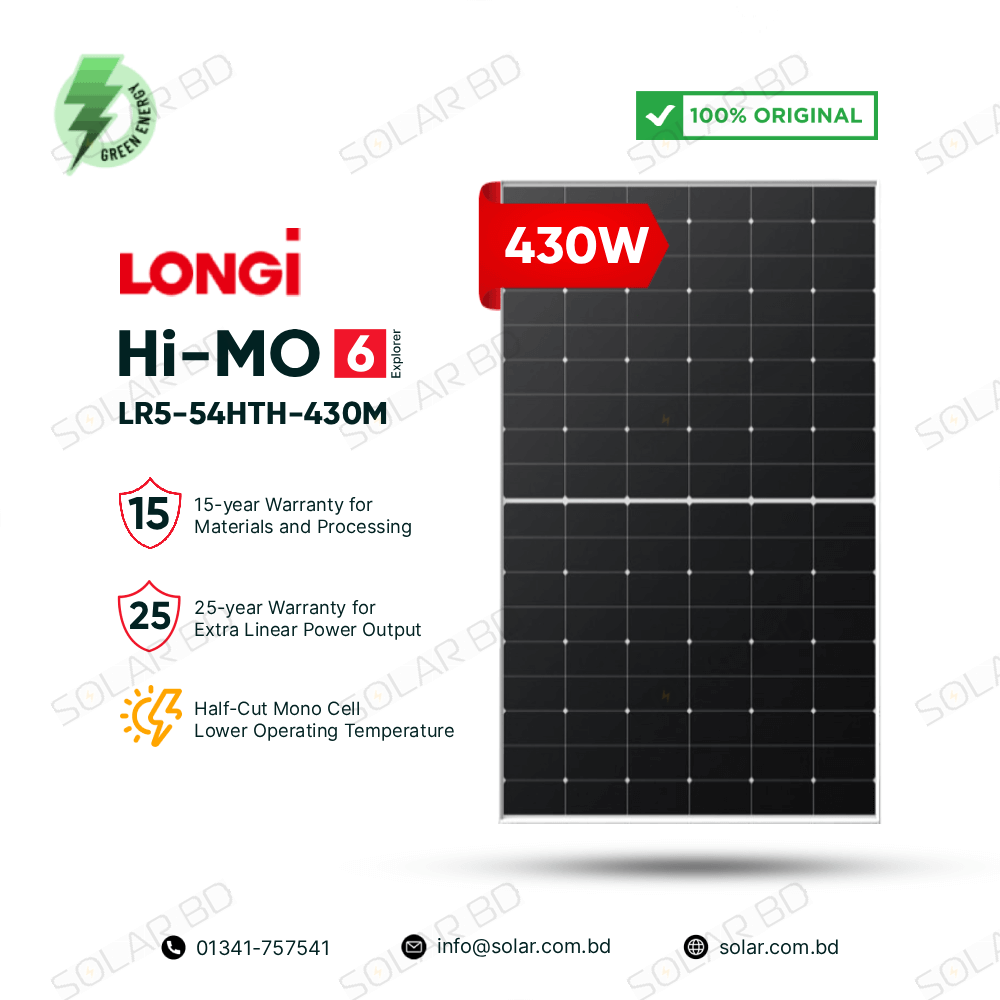

LONGi LR5-54HTH-430M 430W Mono Solar Panel – Overview
The LONGi LR5-54HTH-430M Hi-MO 6 Explorer series is a high-performance monocrystalline solar panel designed for distributed solar projects. With up to 22.0% module efficiency and advanced half-cut technology, it ensures maximum reliability, durability, and long-term energy yield for both residential and commercial applications.
Key Benefits
- Rated maximum power output of 430W under STC.
- High module efficiency up to 22.0% with advanced Mono PERC cells.
- Excellent low-light and high-temperature performance.
- Enhanced durability with anodized aluminum alloy frame and IP68 junction box.
- Strong mechanical load capacity: 5400Pa front and 2400Pa rear.
- Lower power degradation: <1.5% in first year, 0.40% annually thereafter.
- Certified to IEC, UL, and TÜV standards for safety and reliability.
- 25-year linear power output warranty and 15-year product warranty.
This panel integrates effortlessly with MPPT/PWM charge controllers and works perfectly with Off-Grid inverters, On-Grid inverters, and Hybrid inverters, ensuring maximum solar energy efficiency and reliable performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LR5-54HTH-430M |
| Rated Maximum Power (Pmax) | 430W |
| Module Efficiency | 22.0% |
| Open Circuit Voltage (Voc) | 39.13V |
| Short Circuit Current (Isc) | 14.15A |
| Voltage at Maximum Power (Vmp) | 36.74V |
| Current at Maximum Power (Imp) | 11.72A |
| Dimensions | 1722 × 1134 × 30 mm |
| Weight | 20.8 kg |
| Operating Temperature | -40°C ~ +85°C |
| Maximum System Voltage | 1000V DC (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
Download Datasheet | For manufacturer details, see the official page: LONGi LR5-54HTH-430M
