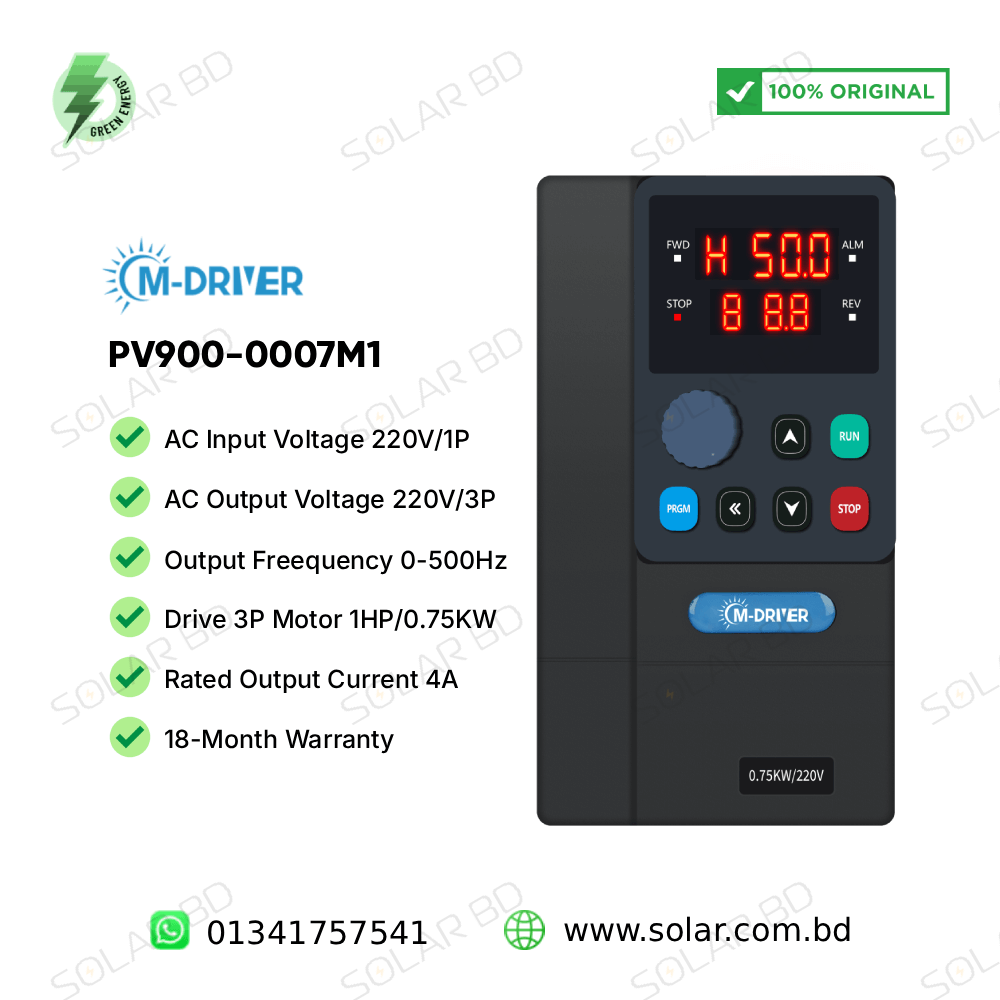

M-Driver Single Phase 220V 0.75KW AC Drives VFD Inverter – Overview
The M-Driver 900-0007M1 is a compact and reliable variable frequency drive engineered for single-phase 220V power systems requiring precise motor speed and torque control. Designed to deliver stable three-phase output for AC motors, this drive is ideal for industrial automation, pumps, fans, conveyors, and general-purpose motor control applications.
Key Benefits
- Single-phase 220V input with stable three-phase motor output.
- Supports V/F and open-loop vector (SVC) control modes.
- Wide output frequency range up to 500Hz for flexible control.
- High overload capacity ensures smooth motor starting.
- Compact IP20 design suitable for control panels.
- Built-in PID control for process automation.
- Modbus communication support for system integration.
This AC drive can be integrated with solar panels in applications where AC power is supplied through an appropriate power conversion or hybrid power system.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | M-Driver |
| Model | 900-0007M1 |
| Type | AC-DC-AC Variable Frequency Drive |
| Input Power Supply | Single Phase 220V AC |
| Output Power Supply | Three Phase 220V AC |
| Rated Motor Power | 1HP / 0.75KW |
| Rated Output Current | 4A |
| Control Mode | V/F Control, Open-Loop Vector (SVC) |
| Output Frequency Range | 0–500Hz |
| Carrier Frequency | 0.5–16kHz (auto-adjusting) |
| Overload Capacity | 150% for 60s, 180% for 3s |
| Built-in Functions | PID Control, Multi-speed, DC Braking |
| Communication | Modbus (RS-485) |
| IP Protection | IP20 |
| Cooling Method | Air Cooling |
| Operating Temperature | –10°C to +40°C (derating above 40°C) |
| Altitude | Up to 4000m (derate above 1000m) |
| Dimensions (H×W×D) | 153 × 86 × 123 mm (A00M) |
| Installation Size (H1×W1) | 143 × 76 mm |
| Mounting Hole | Ø 4.5 mm |
| Certification | CE |
| Warranty | 18 Months |
For manufacturer details, see the official page: M-Driver 900-0007M1
