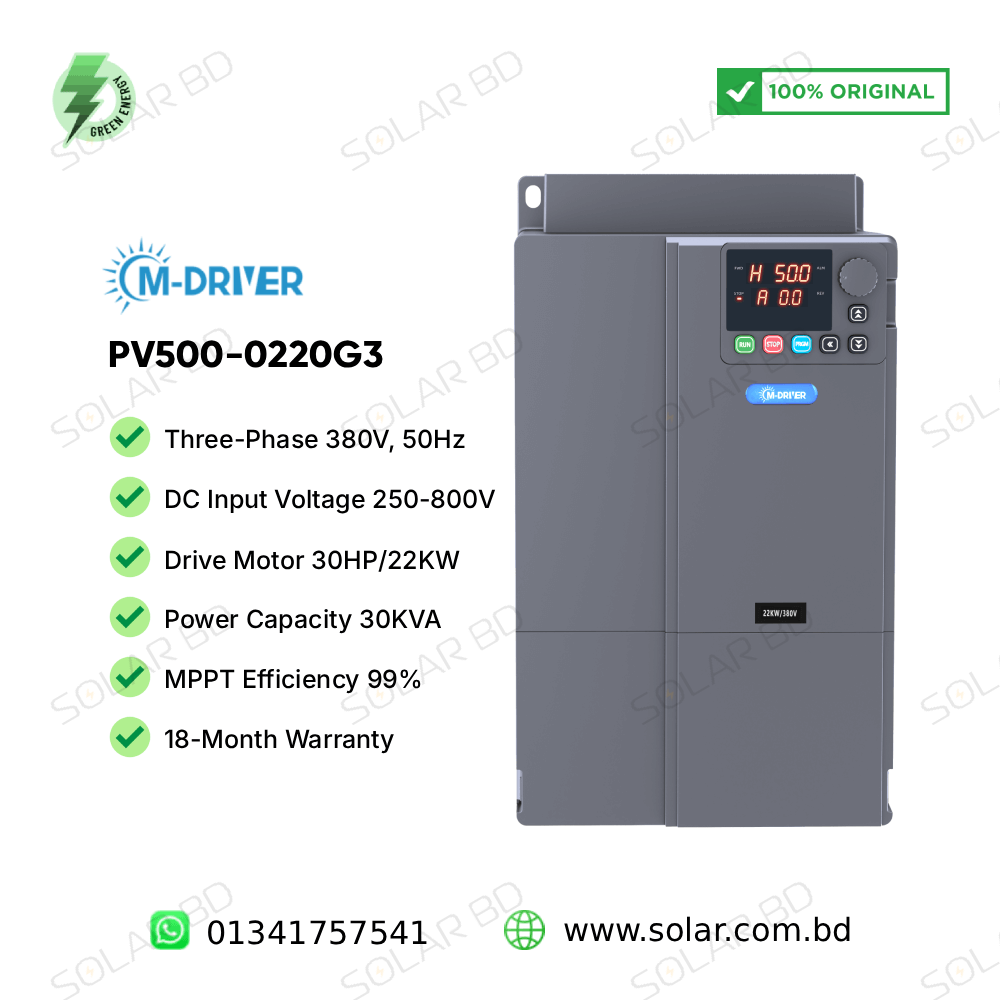

M-Driver Three Phase 380V 22KW Solar Water Pump VFD Inverter – Overview
The M-Driver PV500-0220G3 is a high-capacity MPPT-based solar VFD inverter engineered for heavy-duty three-phase water pump and motor applications. Designed to drive 30HP / 22KW motors, it delivers stable performance, high efficiency, and reliable operation in demanding agricultural, industrial, and commercial solar pumping systems.
Key Benefits
- Stable three-phase 380V output for high-power motor applications.
- Wide DC input voltage range supports flexible solar array design.
- Advanced MPPT technology ensures maximum solar energy utilization.
- Optimized for continuous-duty 30HP / 22KW water pump systems.
- Industrial-grade enclosure suitable for control panels.
- Precise speed and torque control for smooth motor operation.
- Efficient air-cooling design ensures long-term reliability.
This VFD can be directly integrated with solar panels to build a robust solar-powered motor or pumping solution that performs reliably even under fluctuating sunlight conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | M-Driver |
| Model | PV500-0220G3 |
| Output Phase | Three Phase |
| Rated Output Voltage | Three Phase 380V AC, 50Hz |
| Motor Drive Capacity | 30HP / 22KW |
| Power Capacity | 30KVA |
| DC Input Voltage Range | 250–800V DC |
| Max Input DC Voltage (VOC) | 800V |
| Recommended DC Input Voltage Range (Vmpp) | 450–650V |
| Recommended Input Operation Voltage | 540V (Vmpp) |
| Input Current | 46.5A |
| Output Current | 45A |
| Output Frequency Range | 50/60Hz (Maximum 500Hz) |
| MPPT Efficiency | >99% |
| Max Efficiency of the Machine | 99% |
| Cooling Method | Air Cooling |
| Protection Level | IP20 / IP21 |
| Operating Temperature | –10°C to +40°C (derating above 40°C) |
| Altitude | Below 1000m; derate 1% per additional 100m |
| Product Dimensions (W×D×H) | 328 × 193 × 217 mm |
| Certification | CE |
| Warranty | 18 Months |
