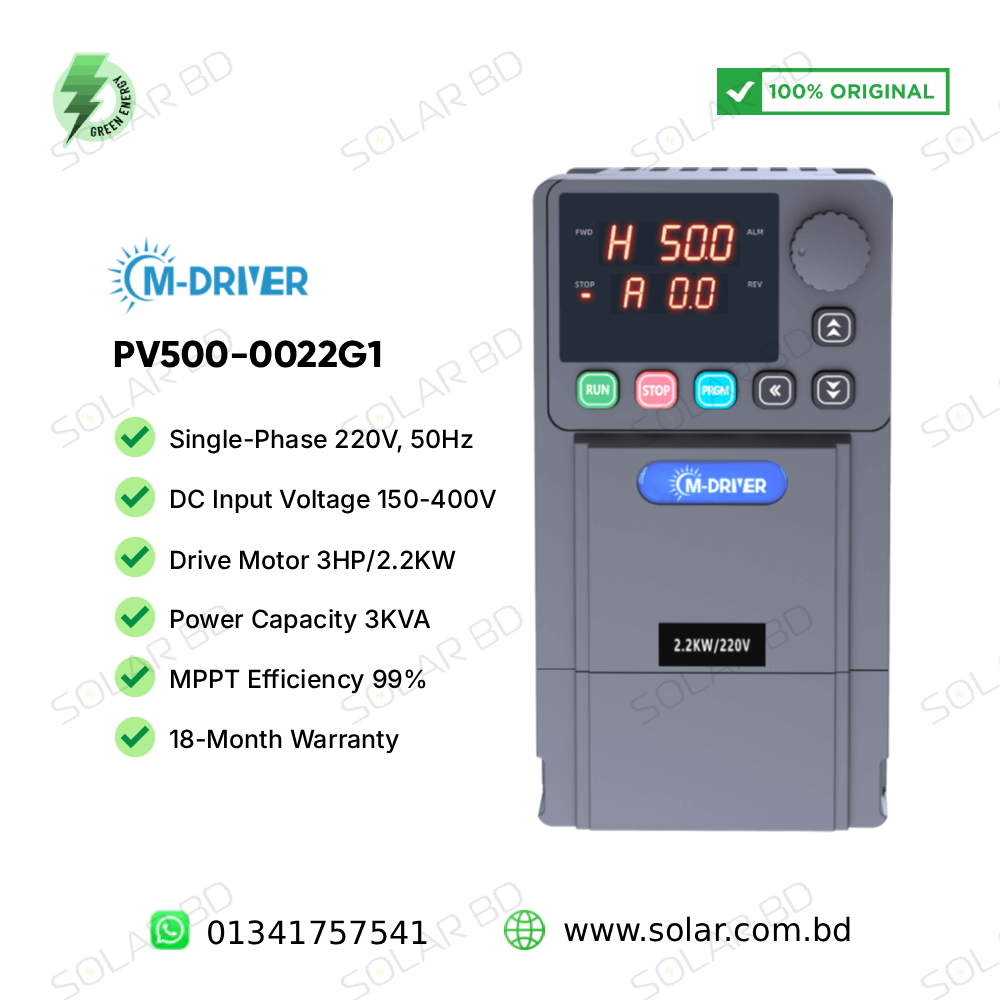

M-Driver Single Phase 220V 2.2KW Solar Water Pump VFD Inverter – Overview
The M-Driver PV500-0022G1 solar VFD inverter is a high-performance MPPT-based solution designed for single-phase solar water pump and motor control applications. Built to drive 3HP motors efficiently, this inverter delivers stable and reliable performance for solar-powered pumping systems used in residential, agricultural, and commercial environments.
Key Benefits
- Provides stable single-phase 220V output for pump motors.
- Supports a wide DC input voltage range for flexible solar array design.
- Built-in high-efficiency MPPT for maximum solar energy utilization.
- Optimized for 3HP / 2.2KW solar water pump applications.
- Compact industrial design suitable for control panel installation.
- Precise speed and torque control for smooth pump operation.
- Air-cooled design ensures long-term operational reliability.
This inverter can be seamlessly integrated with solar panels to create an efficient and dependable solar pumping solution that performs reliably even under low-sunlight conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | M-Driver |
| Model | PV500-0022G1 |
| Output Phase | Single Phase |
| Rated Output Voltage | Single Phase 220V AC, 50Hz |
| Motor Drive Capacity | 3HP / 2.2KW |
| Power Capacity | 3KVA |
| DC Input Voltage Range | 150–400V DC |
| Max Input DC Voltage (VOC) | 400V |
| Recommended DC Input Voltage Range (Vmpp) | 250–350V |
| Recommended Input Operation Voltage | 320V (Vmpp) |
| Input Current | 10.0A |
| Output Current | 9.7A |
| Output Frequency Range | 50/60Hz (Maximum 500Hz) |
| MPPT Efficiency | >99% |
| Max Efficiency of the Machine | 99% |
| Cooling Method | Air Cooling |
| Protection Level | IP20 / IP21 |
| Operating Temperature | –10°C to +40°C (derating above 40°C) |
| Altitude | Below 1000m; derate 1% per additional 100m |
| Product Dimensions (W×D×H) | 170 × 86 × 141 mm |
| Certification | CE |
| Warranty | 18 Months |
For manufacturer details, see the official page: M-Driver PV500-0022G1
