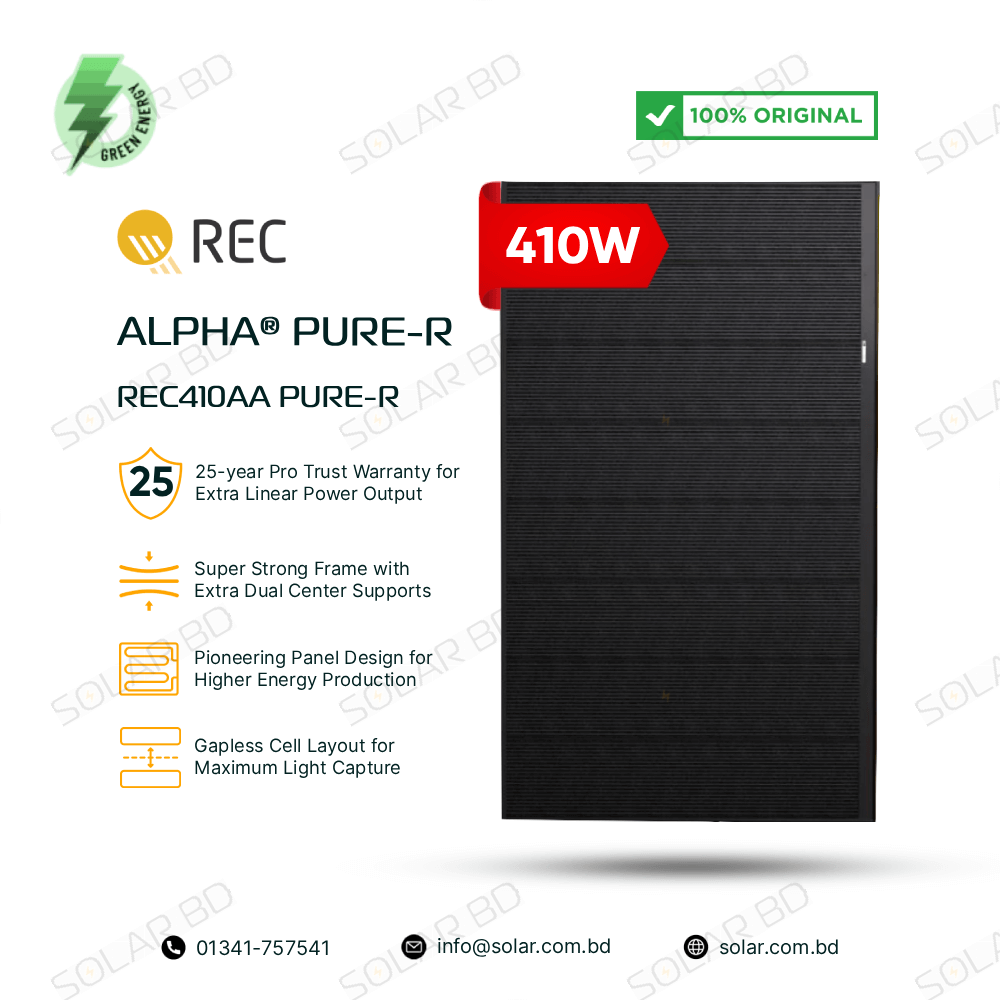

REC Alpha Pure-R 410W Heterojunction Mono Solar Panel – Overview
The REC Alpha Pure-R 410W brings higher output in the same compact footprint. Built on advanced heterojunction (HJT) technology with a gapless layout, it delivers excellent energy yield, robust reliability, and eco-friendly, lead-free construction suited to modern rooftop systems.
Key Benefits
- 410W rated output in a compact, installer-friendly size.
- Up to 21.2% module efficiency for superior energy harvest.
- HJT architecture ensures outstanding low-light performance.
- Lead-free, RoHS-compliant and built to global standards.
- Strong load ratings for storm-ready rooftop durability.
- Excellent temperature coefficients for hot climates.
- Compatible with MLPE and modern inverter platforms.
- Extended ProTrust warranty options for long-term value.
This panel integrates effortlessly with MPPT/PWM charge controllers and works perfectly with Off-Grid inverters, On-Grid inverters, and Hybrid inverters, ensuring maximum solar energy efficiency and reliable performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | REC410AA PURE-R |
| Rated Power (Pmax) | 410W |
| Module Efficiency | 21.2% |
| Voltage at Pmax (Vmp) | 50.0V |
| Current at Pmax (Imp) | 8.20A |
| Open Circuit Voltage (Voc) | 53.7V |
| Short Circuit Current (Isc) | 8.92A |
| Dimensions (L×W×H) | 1730 × 1134 × 30 mm |
| Weight | 21.5 kg |
| Max System Voltage | 1000V DC |
| Max Series Fuse | 25A |
| Operating Temperature | -40°C to +85°C |
Download Datasheet | For manufacturer details, see the official page: REC Alpha Pure-R
