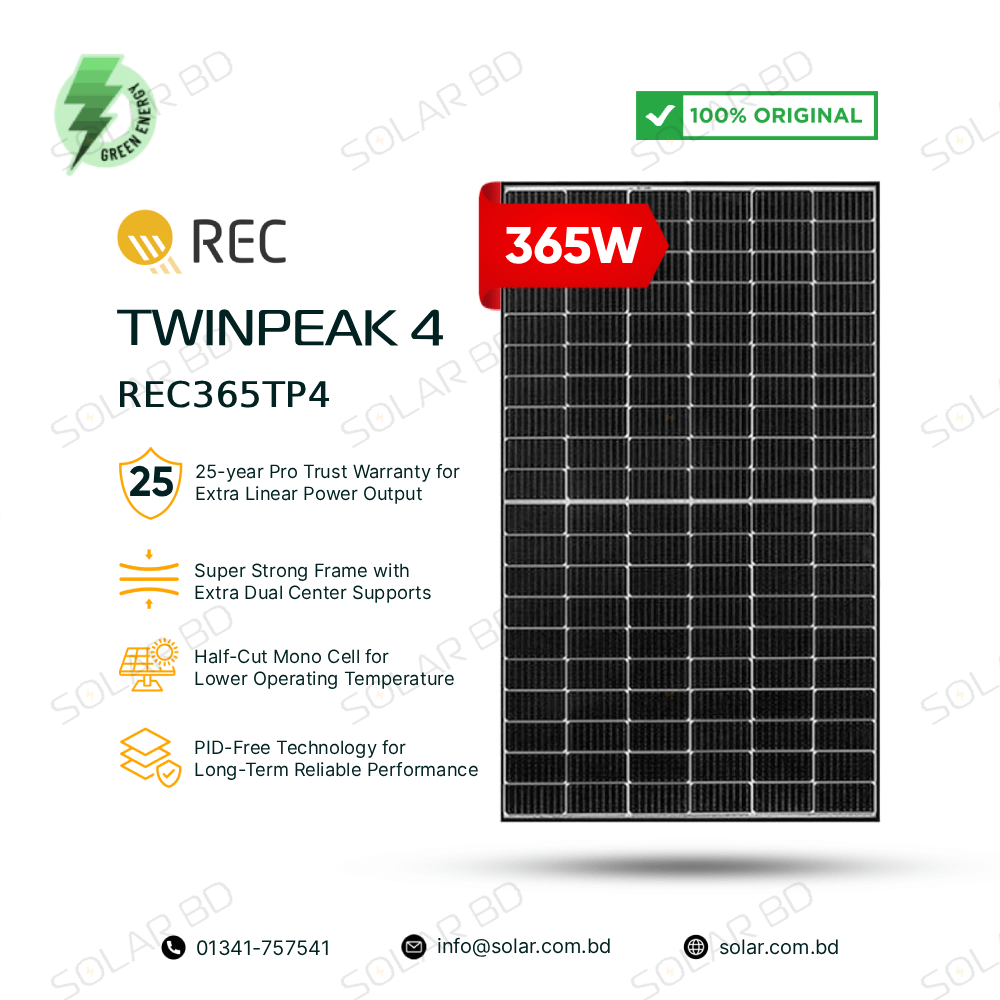

REC TwinPeak 4 Series 365W Half-Cut Mono Solar Panel – Overview
The REC TwinPeak 4 Series 365W solar panel delivers premium performance with its advanced half-cut mono c-Si technology. Designed with REC’s pioneering twin design, this panel ensures higher power density, excellent reliability, and long-term durability for both residential and commercial rooftop installations.
Key Benefits
- Rated maximum power output of 365W at STC.
- High module efficiency of up to 20%.
- 120 half-cut mono c-Si cells for reduced resistance and higher yield.
- Industry-leading TwinPeak design improves energy performance.
- PID-free and resistant to potential-induced degradation.
- Strong load resistance: up to 7000Pa (front) and 4000Pa (rear).
- Compact design ideal for residential and commercial rooftops.
- 25-year linear power output warranty with ProTrust option.
This panel integrates effortlessly with MPPT/PWM charge controllers and works perfectly with Off-Grid inverters, On-Grid inverters, and Hybrid inverters, ensuring maximum solar energy efficiency and reliable performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | REC365TP4 |
| Rated Maximum Power (Pmax) | 365W |
| Module Efficiency | 20% |
| Nominal Power Voltage (Vmp) | 34.3V |
| Nominal Power Current (Imp) | 10.65A |
| Open Circuit Voltage (Voc) | 40.8V |
| Short Circuit Current (Isc) | 11.32A |
| Dimensions | 1755 × 1040 × 30 mm |
| Weight | 20.0 kg |
| Operating Temperature | -40°C ~ +85°C |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse Rating | 25A |
| Mechanical Load Capacity | 7000 Pa (front) / 4000 Pa (rear) |
Download Datasheet | For manufacturer details, see the official page: REC TwinPeak 4 Series 365W
