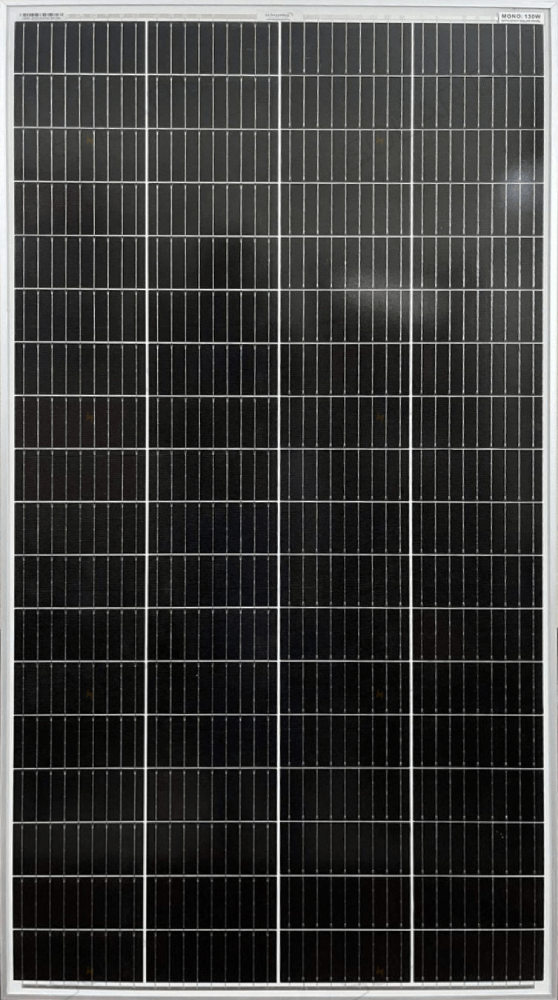

SUNSHINE 130W Germany Cell 12V Mono Solar Panel – Overview
The SUNSHINE 130W Germany Cell 12V Mono Solar Panel is a high-efficiency monocrystalline solar module engineered for reliable off-grid solar applications. Designed using advanced Germany cell technology and modern MBB design, this panel provides stable power output, excellent durability, and long-term energy performance even under demanding environmental conditions.
Key Benefits
- Produces up to 130W power output ideal for 12V solar systems.
- Monocrystalline Germany cell technology ensures higher efficiency.
- MBB design improves light absorption and reduces internal loss.
- Excellent low-light performance in cloudy or weak sunlight.
- Salt mist and ammonia resistant for harsh environments.
- PID-free technology for long-term stable power generation.
- Class A application rated for safety and reliability.
- 25-year linear power output warranty for long service life.
This panel integrates seamlessly with MPPT and PWM solar charge controllers and operates efficiently with inverters and battery systems, ensuring optimal solar energy performance and reliable power output.

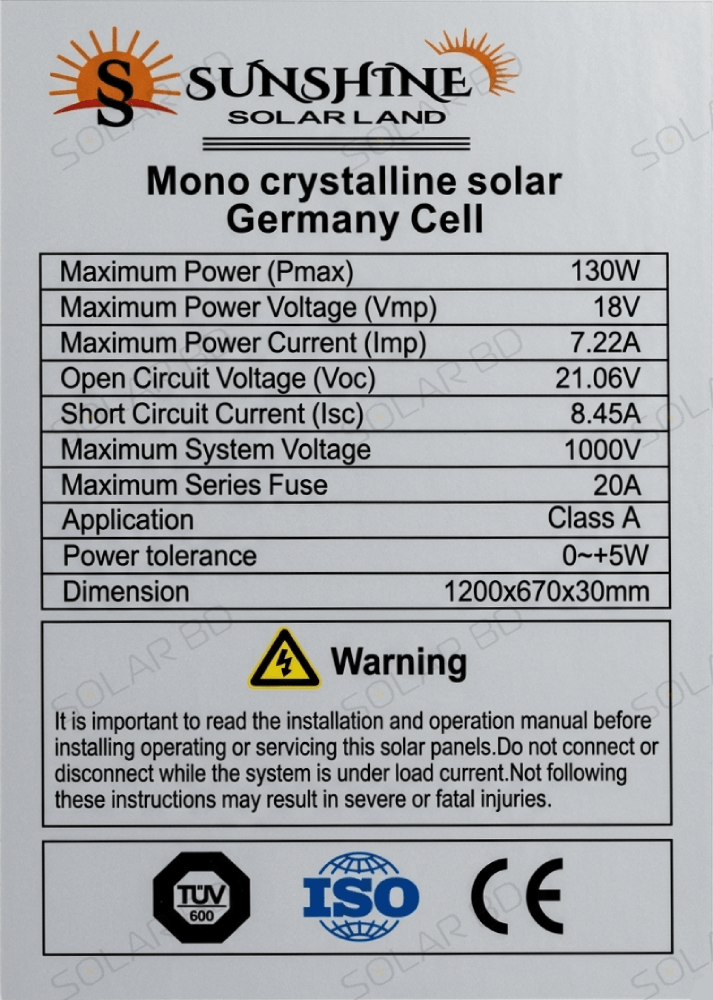

Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 130W |
| Maximum Power Voltage (Vmp) | 18V |
| Maximum Power Current (Imp) | 7.22A |
| Open Circuit Voltage (Voc) | 21.06V |
| Short Circuit Current (Isc) | 8.45A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse | 20A |
| Application | Class A |
| Power Tolerance | 0~+5W |
| Dimension | 1200 × 670 × 30 mm |
নোটঃ SUNSHINE প্যানেল গুলো ট্রান্সপোর্টে গ্লাস ভেঙ্গে গেলে আমরা নতুন একটা প্যানেল দিবো। যদি গ্লাস না ভাঙ্গে, শুধু স্ক্রাচ (দাগ ) বা ফ্রেমে কোন ক্ষতি হয় তাহলে রিটার্ন / রিফান্ড হবে না।
