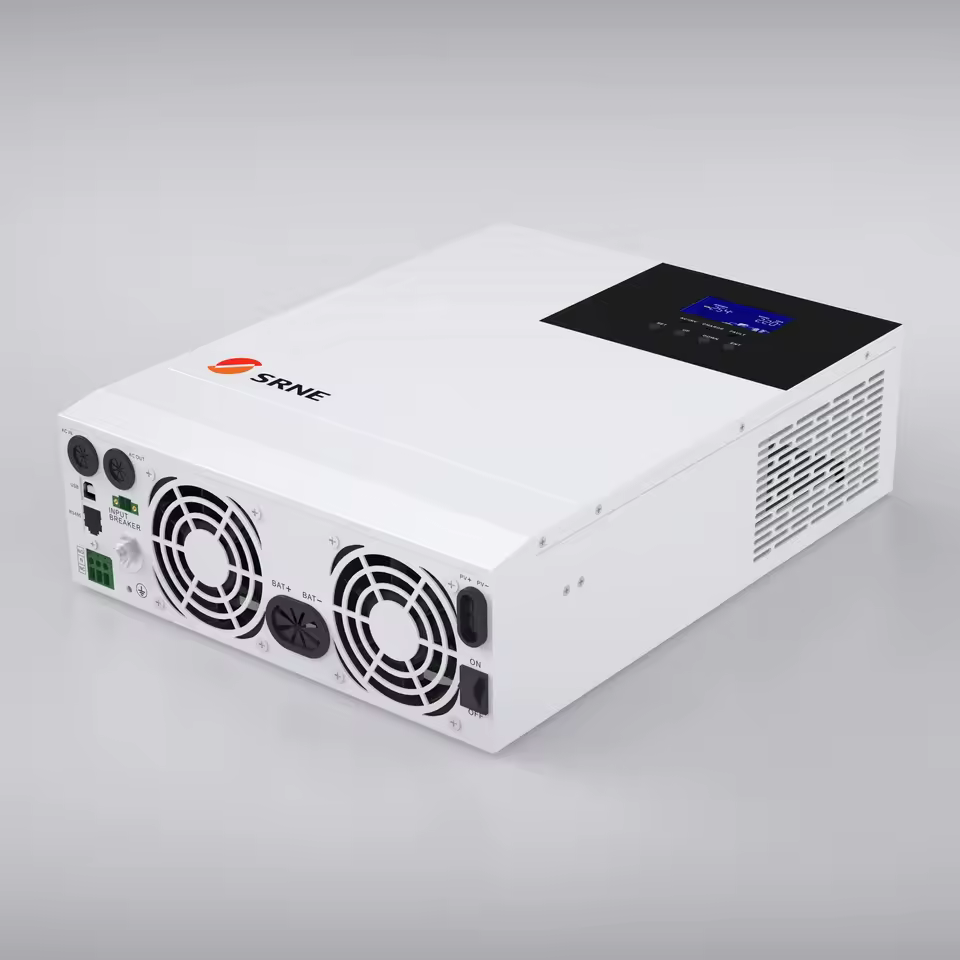

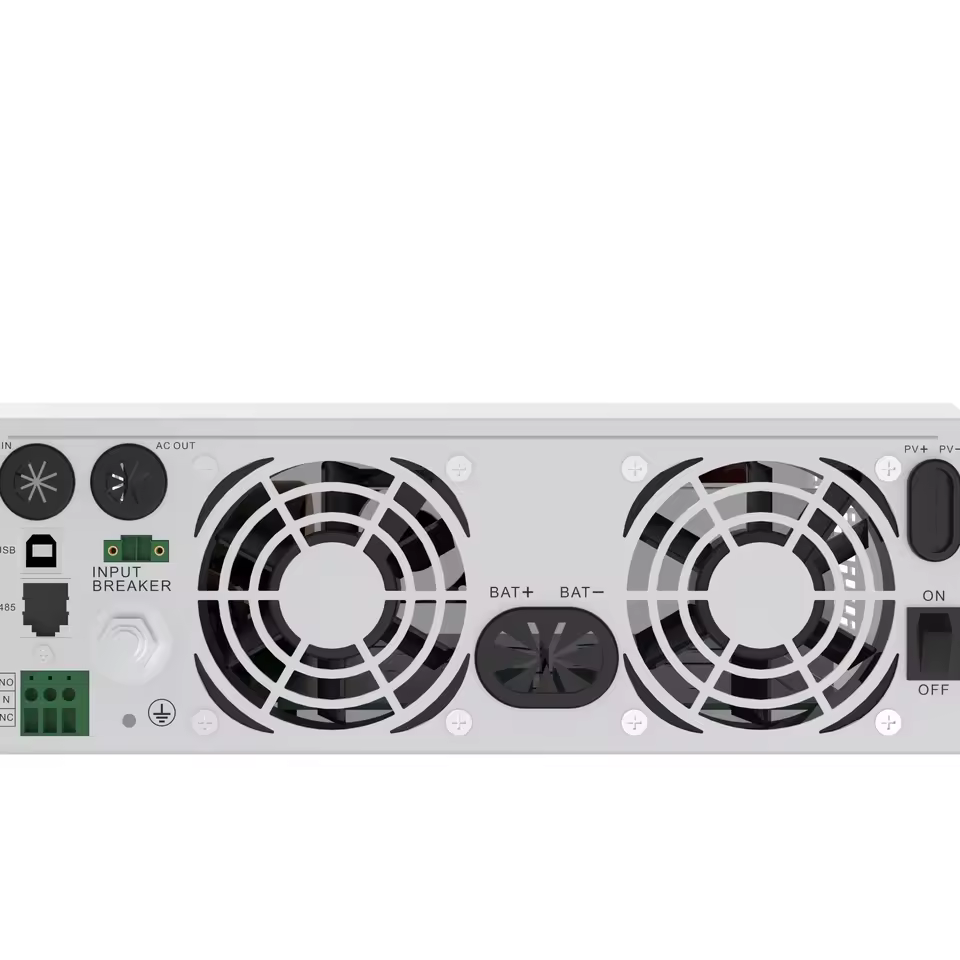

SRNE 3.3 KW/24V 80A MPPT 500VDC HF2430S80-H
series is a new all-in-one hybrid solar inverter charger, which integrates PV charge&Grid charge with sine wave output，For home,outdoor, RV, etc., off-grid hybrid inverter controller.
| Models | HF2430S80-H |
| AC mode | |
| Rated input voltage | 220/230Vac |
| Frequency | 50Hz/ 60Hz (Auto detection) |
| Maximum bypass overload current | 30A |
| Inverter mode | |
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | 3000 |
| Rated output power (W) | 3000 |
| Power factor | 1 |
| Rated output voltage (Vac) | 230Vac |
| Loaded motor capability | 2HP |
| Bypass breaker specifications | 30A |
| Rated battery input voltage | 24V (Minimum starting voltage 22V) |
| AC charging | |
| Battery type | Lead acid or lithium battery |
| Maximum charge current | 80A |
| Circuit breaker specifications | 30A |
| PV charging | |
| Maximum PV open circuit voltage | 500Vdc |
| PV operating voltage range | 120-500Vdc |
| Maximum output power | 4000W |
| PV charging current range (can be set) | 0-80A |
| Communication interface | |

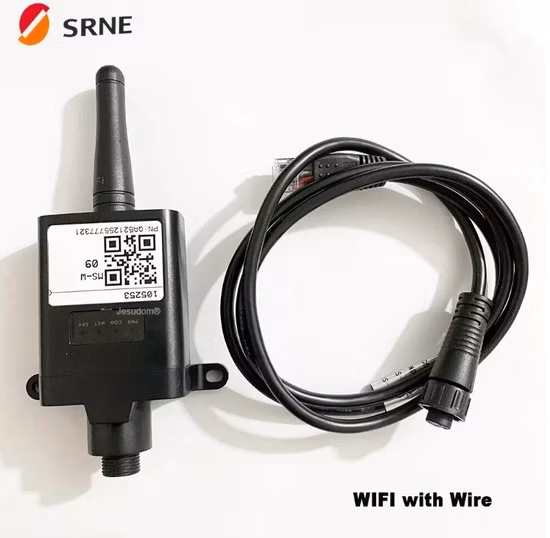

| Communication interface | USB/RS485(WiFi/GPRS)/Dry node control |
