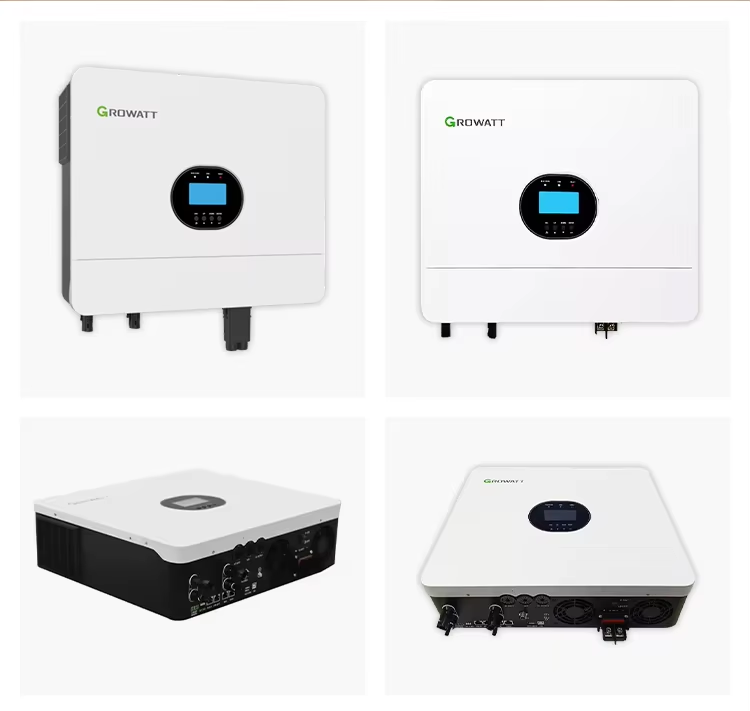

The Growatt SPF 6000 ES Plus – 6kW Off-Grid Hybrid Inverter is a powerful 6kW off-grid solar inverter designed to provide uninterrupted, reliable, and efficient energy for homes and small businesses. With integrated battery storage support and pure sine wave output, this single-phase inverter ensures stable performance even during grid failures.
| Technical Specifications | |
|---|---|
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-acid |
| Inverter Output | |
| Rated Power | 6000VA / 6000W |
| Parallel Capability | Yes, up to 6 units |
| AC Voltage Regulation | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms typical, 20ms max |
| Solar Charger | |
| Max. PV Array Power | 8000W |
| MPPT Range | 120VDC ~ 450VDC |
| MPPT Trackers / Strings | 2 |
| Max. Input Current / Tracker | 16A |
| Max. PV Open Circuit Voltage | 500VDC |
| Max. Solar Charge Current | 100A |
| AC Charger | |
| AC Charge Current | 80A |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170–280VAC (PCs); 90–280VAC (Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| Physical | |
| Protection Degree | IP20 |
| Dimensions (W × H × D) | 460 × 395 × 132 mm |
| Net Weight | 13.5 kg |
| Operating Environment | |
| Humidity | 5% to 95% RH (non-condensing) |
| Altitude | < 2000 m |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | −15°C to 60°C |
