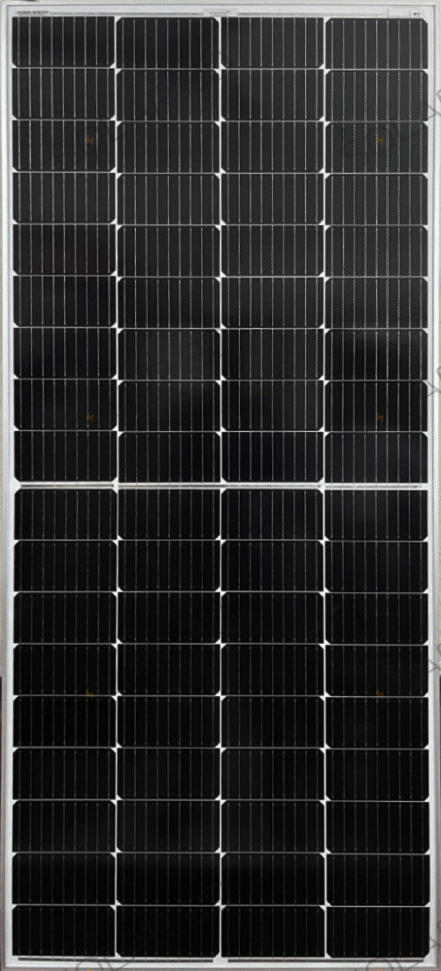

SUNSHINE 250W Germany Cell 24V Mono Solar Panel – Overview
The SUNSHINE 250W Germany Cell 24V Mono Solar Panel is a high-efficiency solar module designed for modern off-grid solar systems. Built with advanced Germany cell technology and bifacial power generation capability, this panel can capture sunlight from both the front and rear sides to maximize energy production.
The panel features modern MBB (Multi-Busbar) design to improve electrical performance, reduce resistance losses, and increase overall efficiency. With PID-free technology and robust environmental resistance, the SUNSHINE bifacial solar panel provides reliable power output and long-term durability in various installation environments.
Key Benefits
- High-efficiency 250W solar power output for 24V systems.
- Bifacial solar technology captures light from both sides.
- Germany cell technology for superior efficiency.
- MBB design improves electrical performance.
- Excellent low-light performance in cloudy conditions.
- Salt mist and ammonia resistant for harsh environments.
- PID-free technology ensures long-term stability.
- 25-year linear power output warranty.
This panel integrates seamlessly with MPPT and PWM solar charge controllers and works efficiently with inverters and battery systems to deliver reliable solar power for residential and off-grid installations.

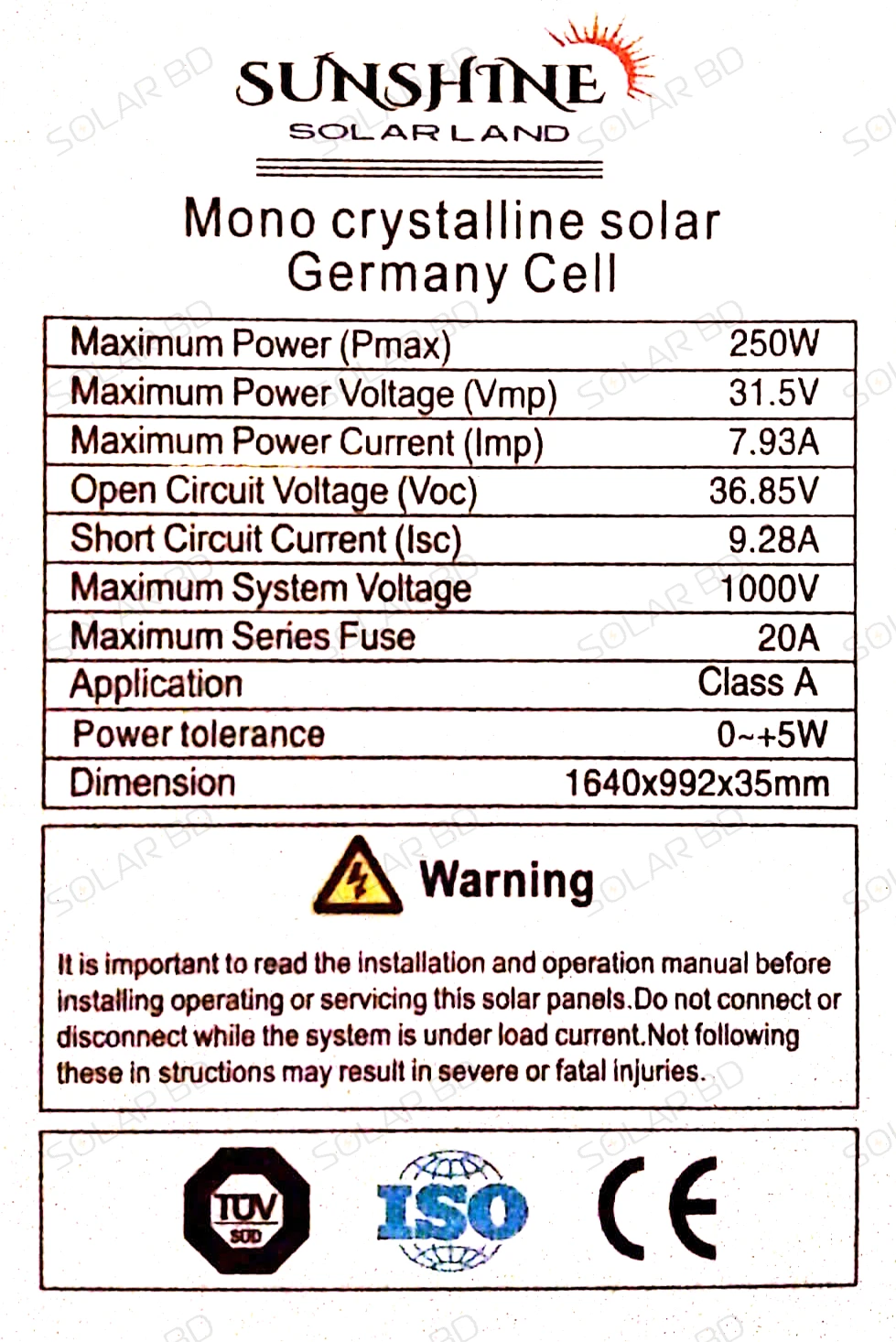

Technical Specifications
| Parameter | Value |
|---|---|
| Model | SS-250W-24-M |
| Maximum Power (Pmax) | 250W |
| Maximum Power Voltage (Vmp) | 31.5V |
| Maximum Power Current (Imp) | 7.93A |
| Open Circuit Voltage (Voc) | 36.85V |
| Short Circuit Current (Isc) | 9.28A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse | 20A |
| Application | Class A |
| Power Tolerance | 0~+5W |
| Dimension | 1600 × 920 × 35 mm |
