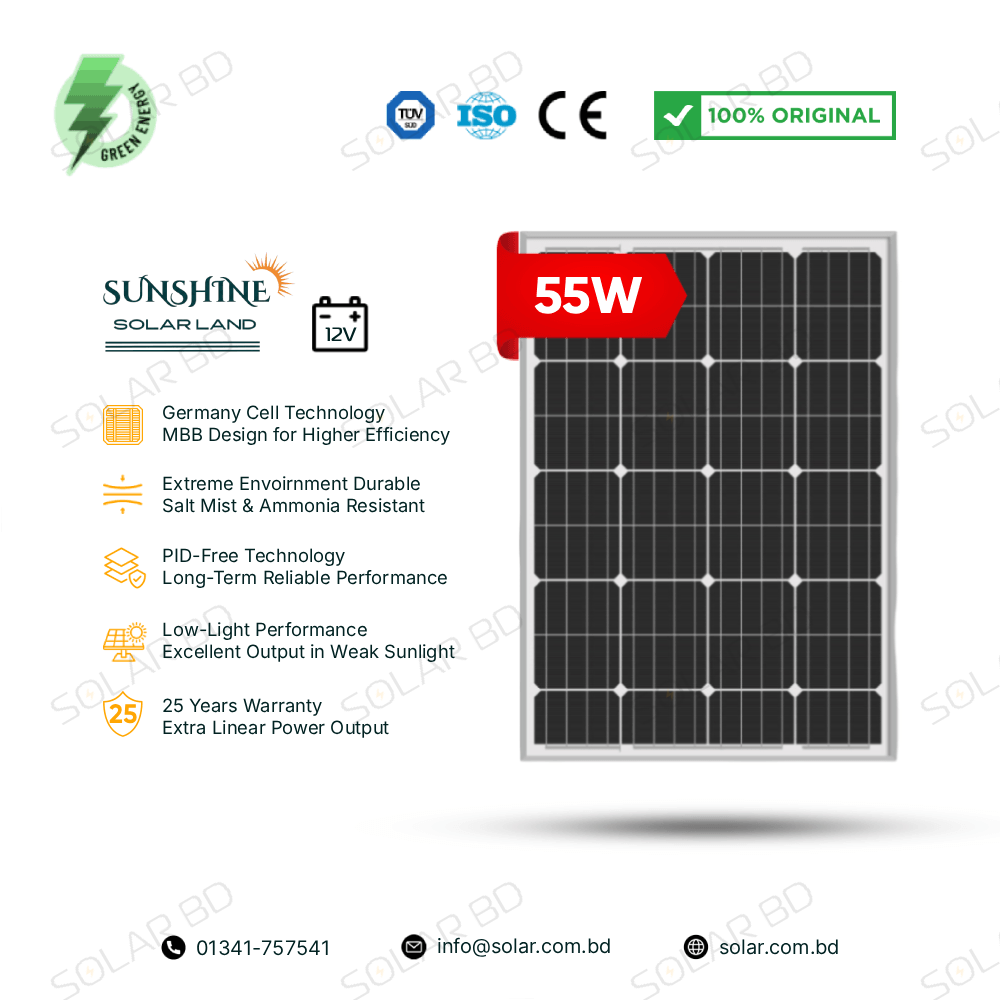

SUNSHINE 55W Germany Cell 12V Mono Solar Panel – Overview
The SUNSHINE 55W Germany Cell 12V Mono Solar Panel is a compact and efficient solar module designed for small off-grid solar systems. Built with high-quality Germany cell technology and advanced MBB (Multi Busbar) design, this panel delivers stable energy output and dependable performance for battery charging and portable solar applications.
Its compact size makes it ideal for small solar installations such as lighting systems, backup solar setups, camping equipment, boats, caravans, and small home solar power solutions.
Key Benefits
- Reliable 55W solar output for 12V battery systems.
- Germany cell technology ensures stable power generation.
- MBB design improves efficiency and reduces resistance.
- Excellent performance in low-light conditions.
- PID-free technology for long-term reliability.
- Salt mist and ammonia resistant structure.
- Compact and lightweight for easy installation.
- 25-year linear power output warranty.
This panel integrates seamlessly with MPPT and PWM solar charge controllers and works efficiently with inverters and battery systems for dependable off-grid solar power generation.

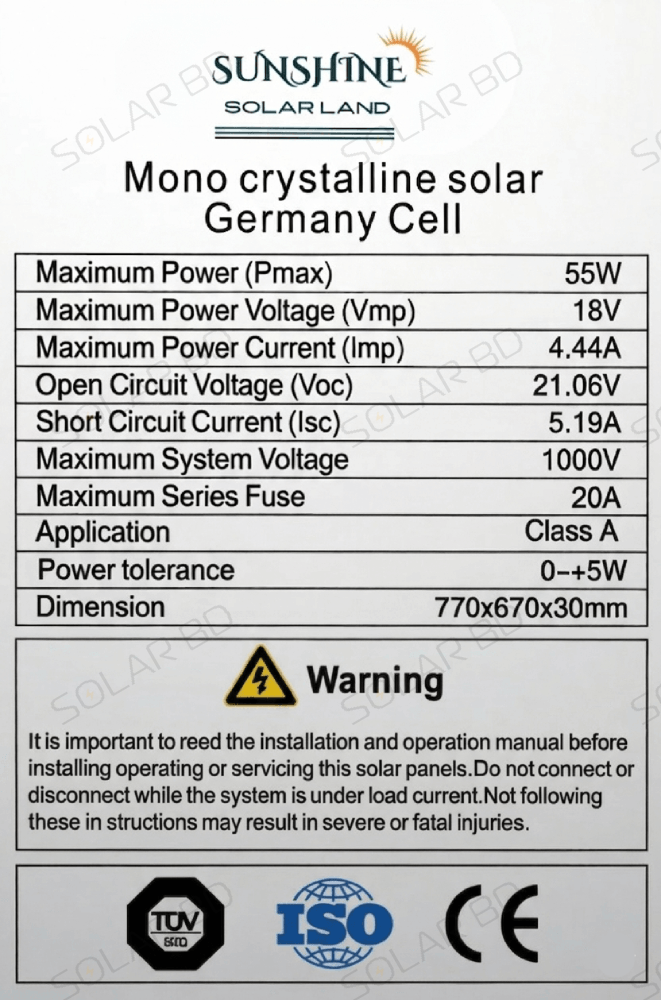

Technical Specifications
| Parameter | Value |
|---|---|
| Model | SS-55W-M |
| Maximum Power (Pmax) | 55W |
| Maximum Power Voltage (Vmp) | 18V |
| Maximum Power Current (Imp) | 4.44A |
| Open Circuit Voltage (Voc) | 21.06V |
| Short Circuit Current (Isc) | 5.19A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse | 20A |
| Application | Class A |
| Power Tolerance | 0 ~ +5W |
| Dimension | 770 × 670 × 30 mm |
