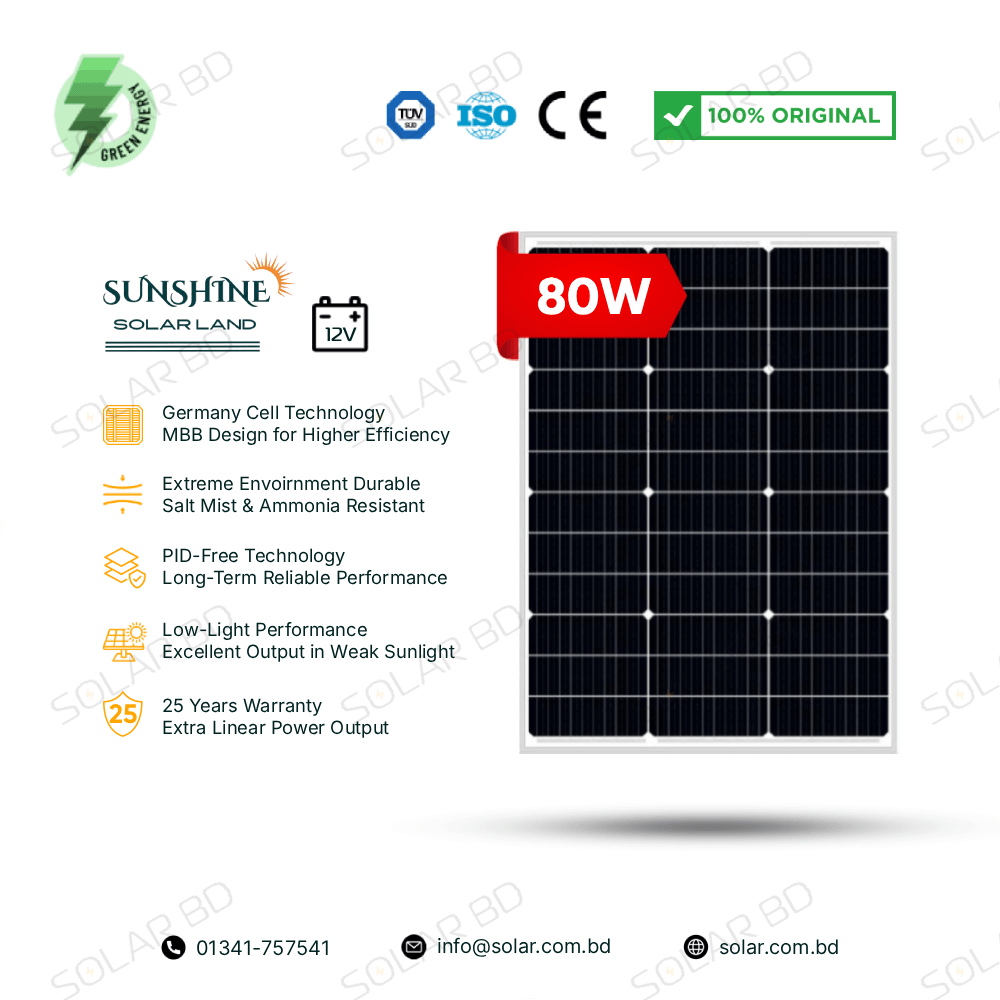

SUNSHINE 80W Germany Cell 12V Mono Solar Panel – Overview
The SUNSHINE 80W Germany Cell 12V Mono Solar Panel is a compact and reliable solar module designed for small off-grid solar systems. Built using high-quality Germany cell technology and modern MBB (Multi Busbar) design, this solar panel delivers stable energy output and improved efficiency even in challenging environmental conditions.
This panel performs efficiently in low-light environments and provides dependable solar power for charging batteries in residential, mobile, and remote power systems.
Key Benefits
- High efficiency 80W output for small solar systems.
- Germany cell technology for stable energy generation.
- MBB design improves power conversion efficiency.
- Excellent performance in weak sunlight.
- PID-free technology for long-term durability.
- Salt mist and ammonia resistant structure.
- Compact design suitable for limited spaces.
- 25-year linear power output warranty.
This panel integrates seamlessly with MPPT and PWM solar charge controllers and works efficiently with inverters and battery systems for reliable off-grid solar energy solutions.

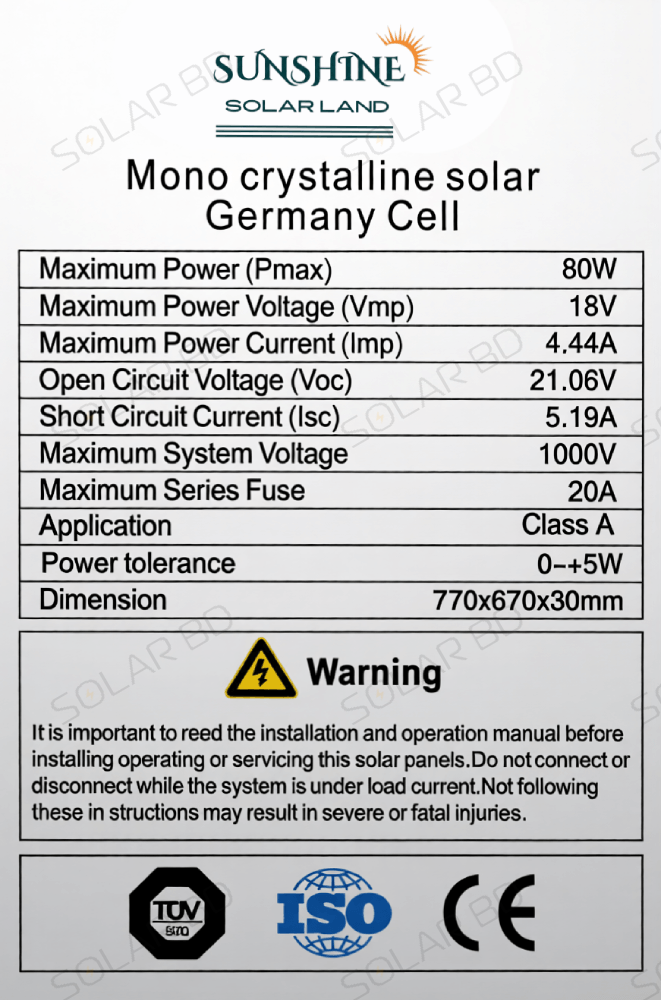

Technical Specifications
| Parameter | Value |
|---|---|
| Model | SS-80W-M |
| Maximum Power (Pmax) | 80W |
| Maximum Power Voltage (Vmp) | 18V |
| Maximum Power Current (Imp) | 4.44A |
| Open Circuit Voltage (Voc) | 21.06V |
| Short Circuit Current (Isc) | 5.19A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse | 20A |
| Application | Class A |
| Power Tolerance | 0 ~ +5W |
| Dimension | 770 × 670 × 30 mm |
