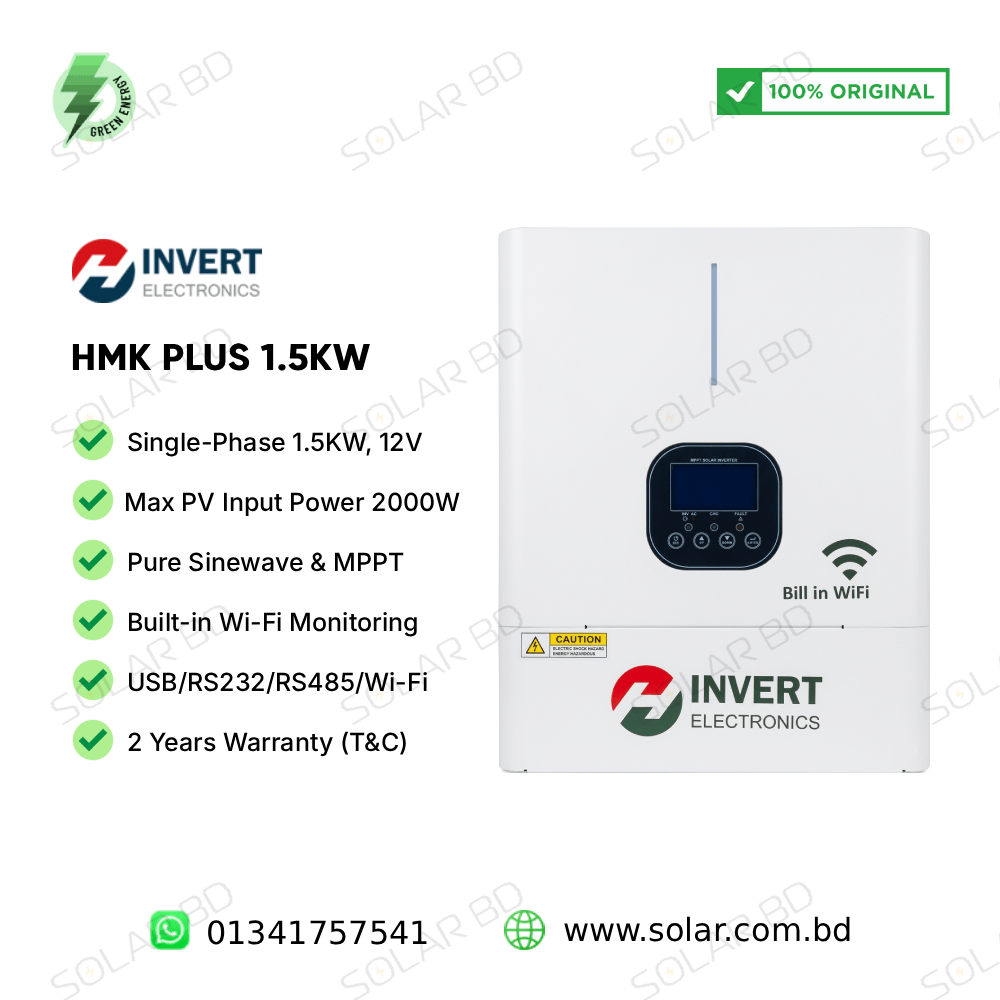

Hinvert 1.5KW 12V MPPT Solar Off-Grid Hybrid Inverter with Built-in WiFi – Overview
The Hinvert HMK-PLUS 1.5KW 12V PV-2000W Single Phase Off-Grid Solar Inverter is a smart and efficient hybrid solution designed for reliable off-grid solar power systems. Built with advanced MPPT technology and pure sine wave output, this inverter ensures maximum solar energy utilization while delivering stable power for homes and small businesses. With built-in WiFi monitoring, users can easily track system performance and manage energy usage remotely.
Key Benefits
- Delivers stable 1500W continuous output with 3000VA surge capacity for heavy load handling.
- Advanced MPPT charge controller supports up to 2000W PV input for maximum solar efficiency.
- Pure sine wave output ensures safe operation for sensitive electronics and appliances.
- Built-in WiFi monitoring enables real-time system tracking and remote management.
- Supports operation with or without battery, providing flexible installation options.
- High efficiency up to 97–98% reduces power loss and improves overall system performance.
- Wide MPPT voltage range (60V–430VDC) allows compatibility with various solar panel setups.
- Compact design with LCD display ensures easy monitoring and installation.
For a complete solar solution, pair this inverter with high-quality solar panels and a reliable battery bank to ensure efficient energy generation, storage, and uninterrupted power supply for both day and night usage.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Hinvert |
| Model | HMK-PLUS 1.5KW |
| Product Type | MPPT Off-Grid Hybrid Solar Inverter |
| Rated Power | 1500W / 1500VA |
| Surge Power | 3000VA |
| DC Input | 12VDC, 135A |
| Battery Voltage | 12V DC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| AC Input Voltage | 230VAC |
| AC Output | 230VAC, 50/60Hz, 6.5A, Single Phase |
| Frequency | 50Hz / 60Hz |
| Waveform | Pure Sine Wave |
| Max PV Power | 2000W |
| Nominal PV Voltage | 240VDC |
| Max Solar Voltage (VOC) | 450VDC |
| MPPT Voltage Range | 60V – 430VDC |
| Max PV Input Current | 27A |
| MPPT Charging Current | 80A |
| Maximum Charge Current | 100A |
| Default Charging Current | 60A |
| DC Output | 13.5VDC |
| Efficiency | Up to 98% |
| Communication Interface | USB / RS232 / RS485 / WiFi |
| WiFi Monitoring | Built-in |
| Works Without Battery | Yes |
| Sleeping Mode | Yes |
| Display | LCD Display |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Dimensions (H*W*D) | 380 x 310 x 100 mm |
| Weight | 8.7 kg |
| Country of Origin | China |
| Certification | RoHS & CE |
| Warranty | 2 Years |
For manufacturer details, see the official page: Hinvert HMK-PLUS 1.5KW
