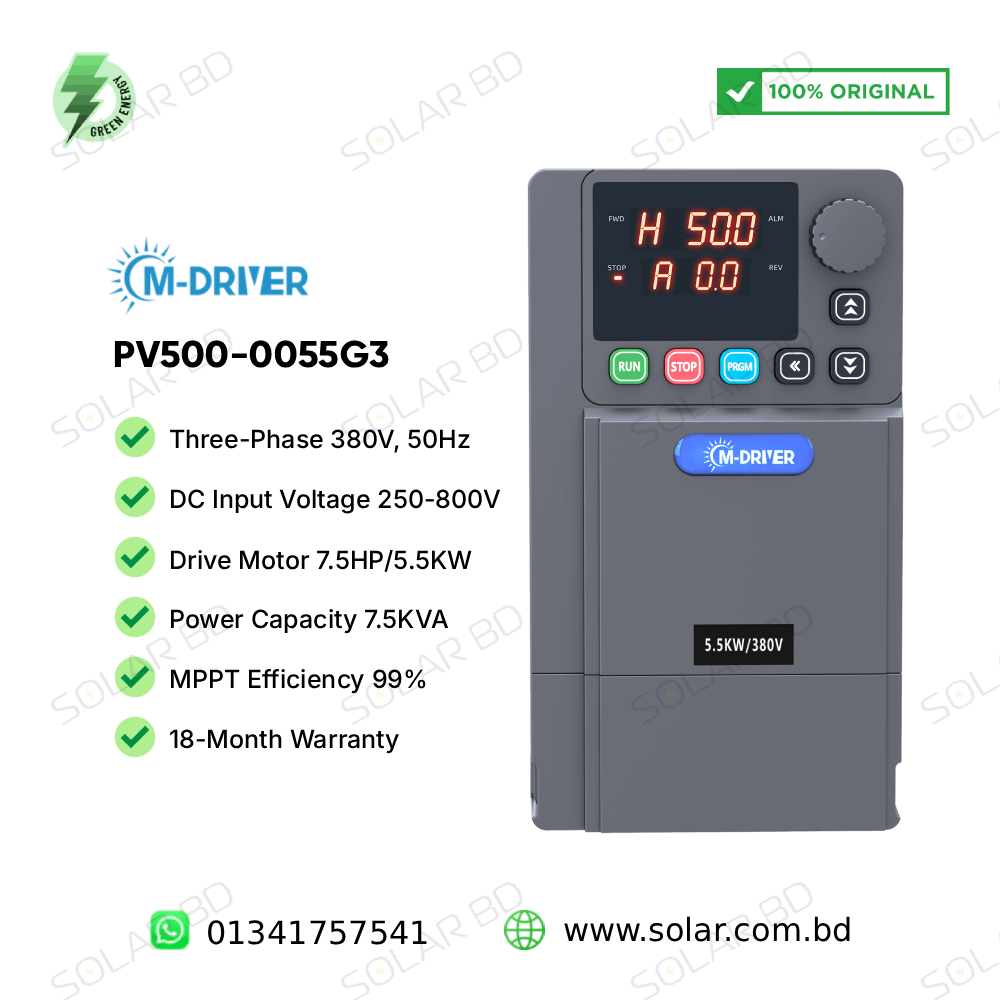

M-Driver Three Phase 380V 5.5KW Solar Water Pump VFD Inverter – Overview
The M-Driver PV500-0055G3 solar VFD inverter is a high-efficiency MPPT-based solution designed for three-phase high-power solar water pump and motor control applications. Engineered to drive 7.5HP / 5.5KW motors, this inverter delivers stable, efficient, and reliable performance for demanding agricultural, commercial, and industrial solar pumping systems.
Key Benefits
- Delivers stable three-phase 380V output for high-power pump motors.
- Supports wide DC input voltage range for flexible solar array design.
- Integrated high-efficiency MPPT for maximum solar energy utilization.
- Optimized for 7.5HP / 5.5KW three-phase solar water pump applications.
- Robust industrial enclosure suitable for control panel installation.
- Precise speed and torque control for smooth pump operation.
- Air-cooled structure ensures reliable long-term performance.
This inverter can be seamlessly integrated with solar panels to create a powerful and dependable solar pumping solution that operates efficiently even under low-sunlight conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | M-Driver |
| Model | PV500-0055G3 |
| Output Phase | Three Phase |
| Rated Output Voltage | Three Phase 380V AC, 50Hz |
| Motor Drive Capacity | 7.5HP / 5.5KW |
| Power Capacity | 7.5KVA |
| DC Input Voltage Range | 250–800V DC |
| Max Input DC Voltage (VOC) | 800V |
| Recommended DC Input Voltage Range (Vmpp) | 450–650V |
| Recommended Input Operation Voltage | 540V (Vmpp) |
| Input Current | 14.6A |
| Output Current | 13A |
| Output Frequency Range | 50/60Hz (Maximum 500Hz) |
| MPPT Efficiency | >99% |
| Max Efficiency of the Machine | 99% |
| Cooling Method | Air Cooling |
| Protection Level | IP20 / IP21 |
| Operating Temperature | –10°C to +40°C (derating above 40°C) |
| Altitude | Below 1000m; derate 1% per additional 100m |
| Product Dimensions (W×D×H) | 228 × 114 × 192 mm |
| Certification | CE |
| Warranty | 18 Months |
For manufacturer details, see the official page: M-Driver PV500-0055G3
