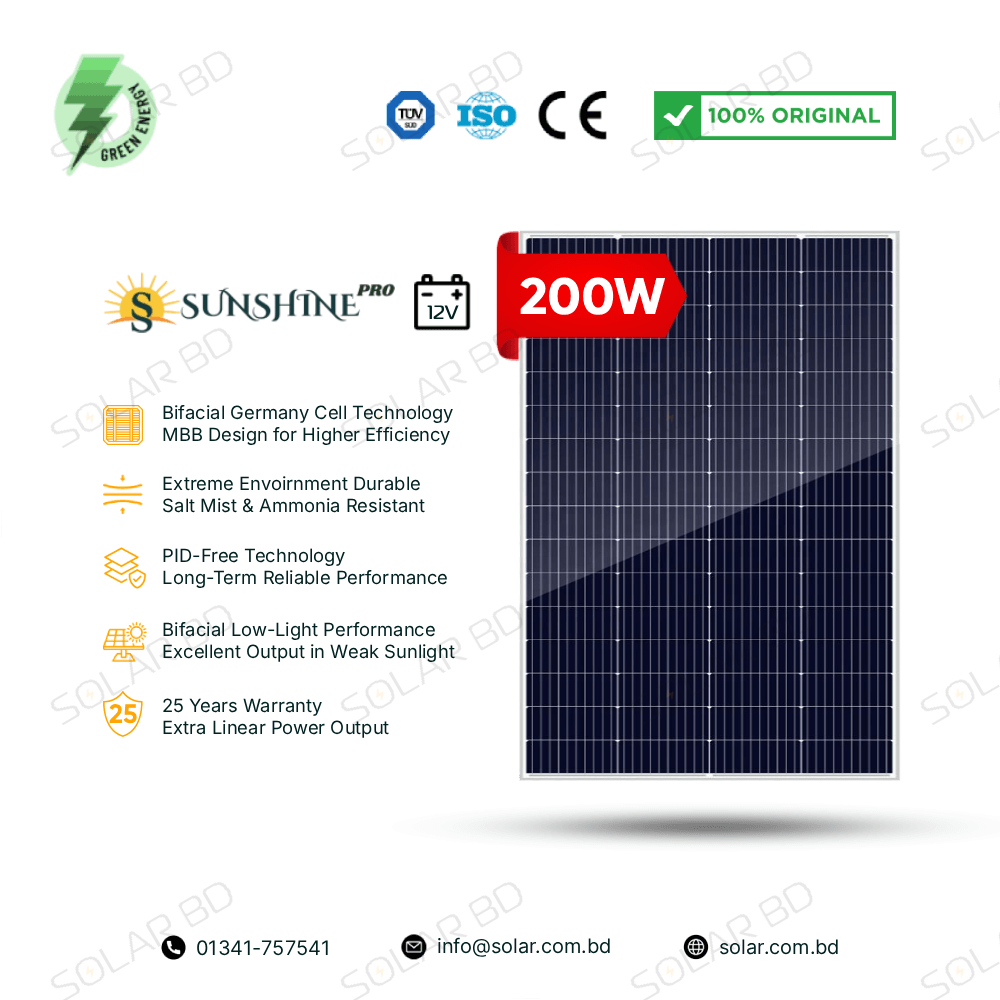

SUNSHINE 200W Germany Cell 12V Mono Bifacial Solar Panel – Overview
The SUNSHINE 200W Germany Cell 12V Mono Bifacial Solar Panel is a high-efficiency solar module designed for advanced off-grid solar systems. Built with premium Germany cell technology and bifacial energy generation capability, this panel captures sunlight from both the front and rear sides to increase overall energy production.
Featuring modern MBB (Multi Busbar) design and PID-free technology, the SUNSHINE PRO series provides higher efficiency, stronger durability, and stable long-term power generation even in harsh environmental conditions.
Key Benefits
- High-efficiency 200W power output for 12V solar systems.
- Bifacial solar technology captures light from both sides.
- Germany cell technology ensures superior energy conversion.
- MBB design reduces resistance and increases efficiency.
- Excellent performance in low-light conditions.
- Salt mist and ammonia resistant for harsh environments.
- PID-free technology ensures long-term reliability.
- 25-year linear power output warranty.
This panel integrates seamlessly with MPPT and PWM solar charge controllers and operates efficiently with inverters and battery systems for stable solar power generation.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SS-PRO-200W-M-B |
| Maximum Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 18V |
| Maximum Power Current (Imp) | 11.11A |
| Open Circuit Voltage (Voc) | 21.06V |
| Short Circuit Current (Isc) | 13A |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse | 25A |
| Application | Class A |
| Power Tolerance | 0 ~ +5W |
| Dimension | 1330 × 760 × 30 mm |
